Bticino HC4608 Quick Start Manual

Display keypad

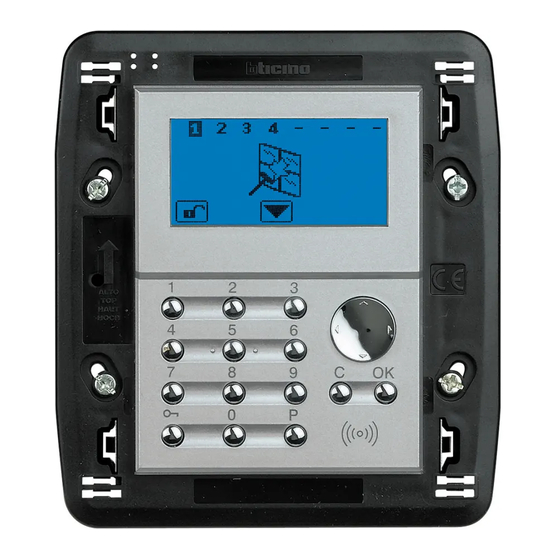

Description
Using the transponder key, or a secret code set on the central unit, this device with
display and digital keypad can be used to arm/disarm the system and separate the zones
with the same flexibility and using the same procedure as for burglar-alarm central unit
with display, or three module flush mounted central units.
In this way the central units can be installed in an appropriate equipment room, out of
sight.
All system status details are shown of the large backlit display.
Technical data
- Power supply from SCS BUS: 27 Vdc
- Max. absorption: 28 mA
- Operating temperature: 5 – 40°C
Dimensional data
Size: 3+3 modules
1
1 2
4 5
3
7 8
0
Front view

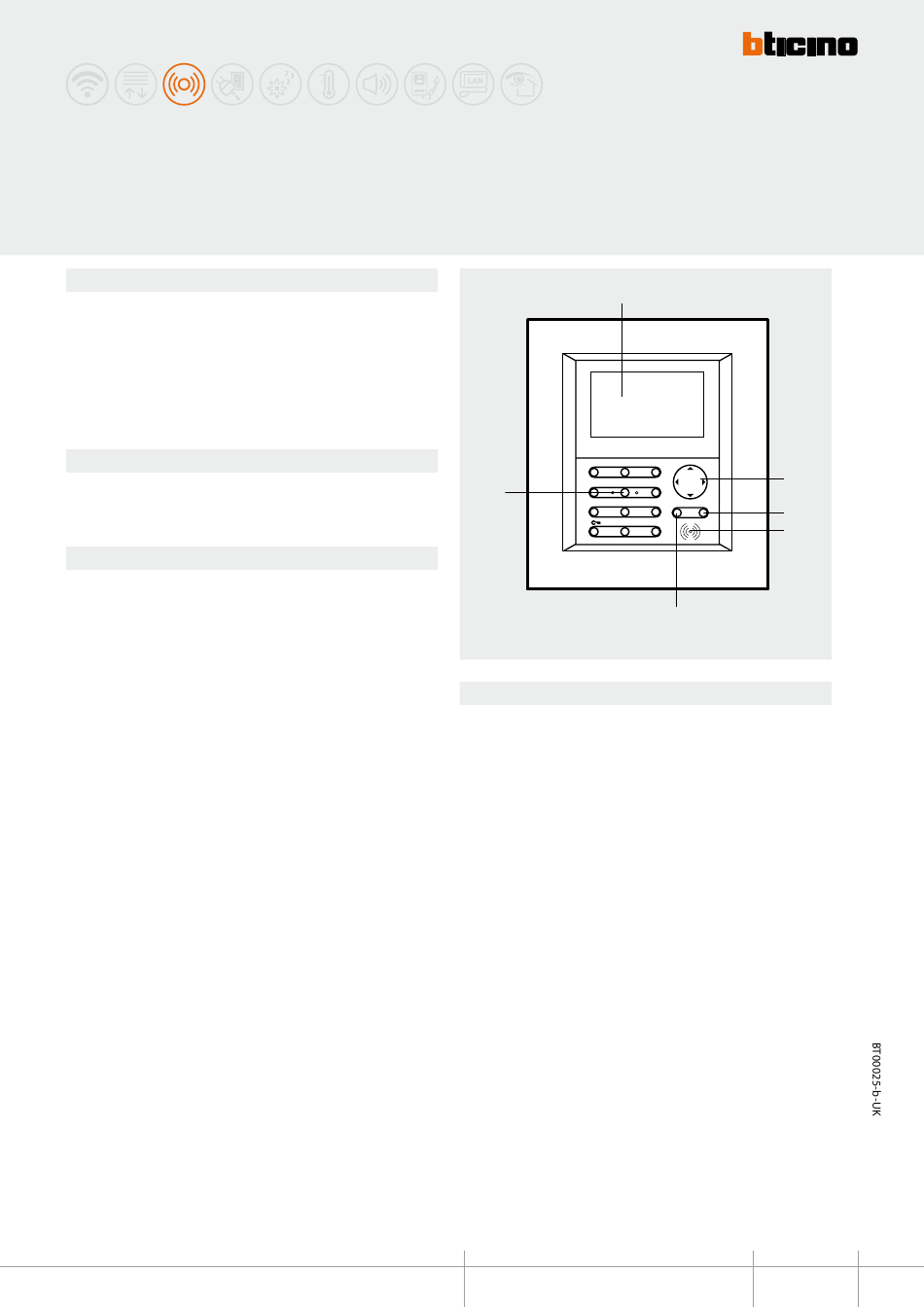

Legend
1 - Graphic display: displays the messages which guide the programming operations
and the events which have occurred.
2 - Transponder reader: receives the burglar-alarm system switching on and off
commands directly from the transponder keys.
3 - Alphanumeric keypad: allows the manual switching on of all those programming
operations which require the use of numbers and/or symbols.
4 - C key: exit the current menu and the programming.
5 - OK key: to confirm the programming operations.
6 - Navigation keypad: navigate the menu.
Technical sheets – Burglar alarm
HC/HD/HS/L/N/NT4608
