Summary of Contents for Bticino 391861

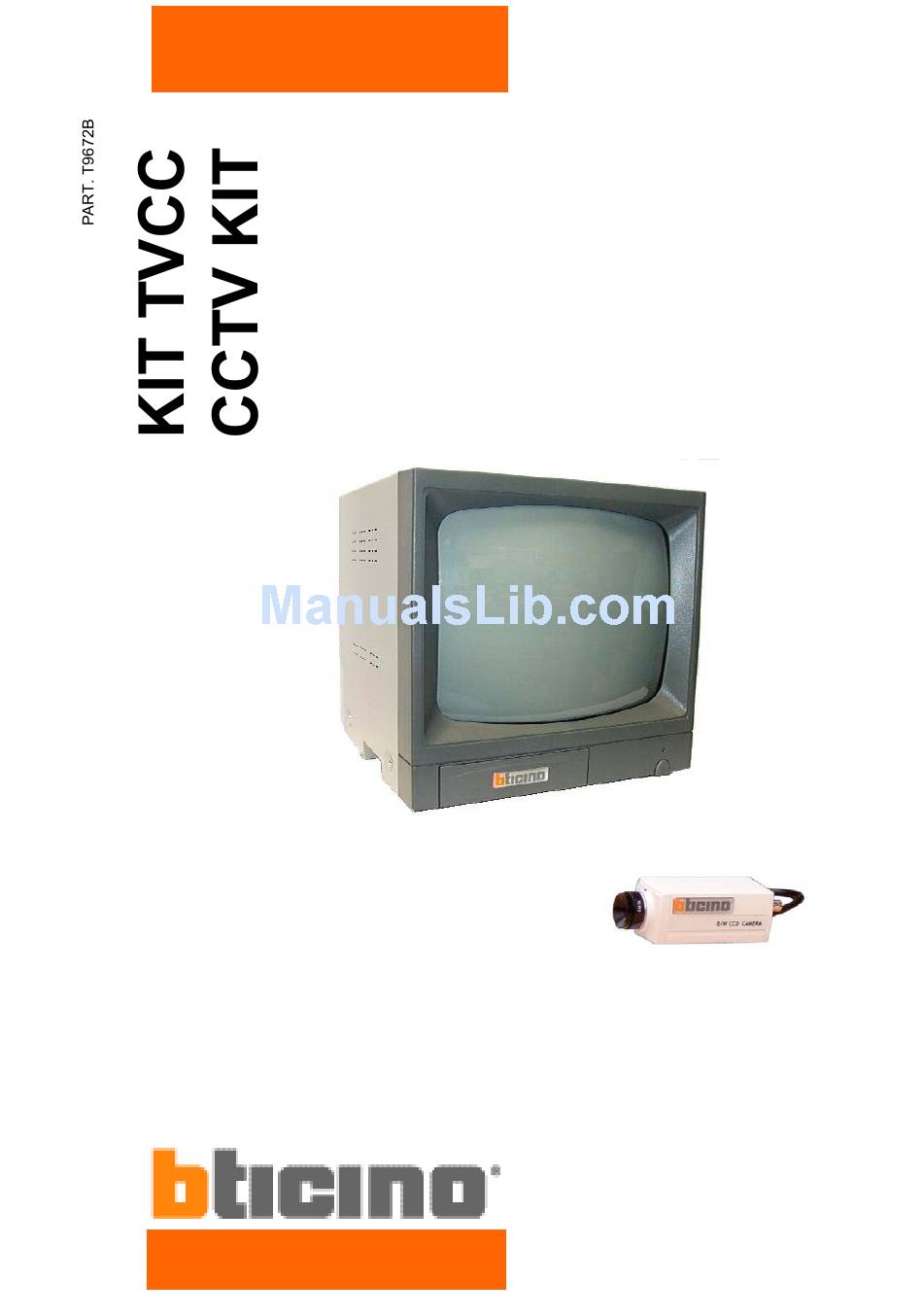

  • Page 1 Istruzioni d’uso User manual 391861...
  • Page 2: Table Of Contents

    INDICE 1. Composizione del kit ........................3 2. Avvertenze sulla sicurezza ......................3 3. Installazione ..........................5 4. Funzioni della telecamera ......................6 5. Funzioni del monitor........................7 6. Dati tecnici............................8...
  • Page 3: Composizione Del Kit

    1. COMPOSIZIONE DEL KIT Kit video bianco e nero composto da: • 1 Telecamera ( 391635 ) • 1 Obiettivo 4,3 mm F 2.0 • 1 Staffa per fissaggio a parete o soffitto ( 391808 ) • 1 Monitor con selettore ciclico incorporato fino a quattro ingressi video •...
  • Page 4 Alimentazione: Verificare che il tipo di tensione di alimentazione, sia compatibile con quella dell’alimentatore. Connessioni: Non modificare lo spinotto di alimentazione Disconnettere l’alimentazione dalla rete nei seguenti casi: Se si decide di non utilizzare il monitor per un certo periodo. Se il cavo di alimentazione risulta danneggiato.
  • Page 5: Installazione

    3. INSTALLAZIONE TELECAMERA Fissare a muro o a soffitto la staffa di fissaggio. Montare l’obiettivo nella parte anteriore della telecamera avvitandolo in senso orario. Fissare la telecamera sulla staffa. Orientare la telecamera verso la scena da riprendere In dotazione vi è un cavo coassiale tipo RG59 75 Ω compreso di connettori BNC. Utilizzare questo cavo per il collegamento tra la telecamera ed il monitor.
  • Page 6: Funzioni Della Telecamera

    4. FUNZIONI DELLA TELECAMERA A. SCHEMA PER OBIETTIVO A DIAFRAMMA AUTOMATICO A COMANDO VIDEO 12Vdc VIDEO MASSA B. SCHEMA PER OBIETTIVO A DIAFRAMMA AUTOMATICO A COMANDO DC 1. Uscita video BNC. 2. Commutatore AUTO IRIS per obiettivo a diaframma automatico. 3.
  • Page 7: Funzioni Del Monitor

    5. FUNZIONI DEL MONITOR Interruttore di accensione Per accendere premere l’interruttore; premendolo di nuovo si spegne il dispositivo. LED di accensione Il LED si accende quando il dispositivo è acceso. Regolazione della luminosità (BRIGHTNESS) Regola la luminosità dell’immagine Regolazione del contrasto (CONTRAST) Regola il contrasto dell’immagine Regolazione del tempo di commutazione (TIME ADJUST) La rotazione in senso orario aumenta il tempo di ciclata delle immagini (2 ~ 30 secondi)
  • Page 8: Dati Tecnici

    6. DATI TECNICI Monitor SERIE 12" MODELLO CON SELETTORE CICLICO 12" Risoluzione >900 Linee TV Sistema EIA / CCIR auto Segnale d’ingresso Video composito 1.0 Vp-p Output signal Video composito 1.0 Vp-p, loop through Input impedenza Alta/Bassa impedenza, commutabile Alimentatore AC 100-240V 50/60Hz Audio I/O 309 mVrms /0.5W tipicamente/Mono...
  • Page 9 INDEX 1. Kit composition..........................3 2. Safety warnings ...........................3 3. Installation ............................4 4. Camera functions.........................5 5. Monitor functions.........................6 6. Technical data ..........................7...
  • Page 10 1. KIT COMPOSITION B/W video Kit composed by: • 1 Camera ( 391635 ) • 1 Lens 4,3 mm F 2.0 • 1 Wall/Ceiling camera bracket ( 391808 ) • 1 Monitor with switcher up to 4 video inputs • 1 15 mt.
  • Page 11 Power: Use the type of power indicated on label. Plug: Do not remove any of the prongs of the monitor’s three-pronged power plug. Disconnect the power plug from the AC outlet under following conditions: If you will not use it for an extended period time. When the power cord or plug is damaged or frayed.
  • Page 12 3. INSTALLATION CAMERA Fix the bracket to the wall or ceiling. Mount the lens in the camera front part, screwing on clock wise. Fix the camera on the bracket. Point the camera to pick a scene up. Use the coaxial cable RG 59 75 Ω with BNC to connect the camera to the monitor Switch the monitor on pushing the CH SELECT #1 Adjust the focus.
  • Page 13 4. CAMERA FUNCTIONS A. SCHEMA PER OBIETTIVO A DIAFRAMMA AUTOMATICO A COMANDO VIDEO 12Vdc VIDEO MASSA B. SCHEMA PER OBIETTIVO A DIAFRAMMA AUTOMATICO A COMANDO DC BNC video output connector. Automatic iris switch video/DC command. Automatic iris output, (do not use with supplied optical).
  • Page 14: Monitor Functions

    5. MONITOR FUNCTIONS Power switch Push one time to switch once twice to switch off the monitor. Power LED Indicates the power - on state Brightness Allows adjustment of the picture brightness. Contrast Allows adjustment of the picture contrast. Time Turn the knob clock - wise to increase the picture cycling time (2 ~ 30 seconds) Ch Select The auto searching of a video signal starts up.
  • Page 15: Technical Data

    6. TECHNICAL DATA Monitor SERIES 12" MODEL with switcher 12" Resolution >900 TV Lines System EIA / CCIR auto Input signal Composite video signal 1.0 Vp-p Output signal Composite Video 1.0 Vp-p, (loop through) Input impedance 75 Ω/High selectable Power supply 100-240V 50-60Hz Audio I/O...
  • Page 16 Btcino s.p.a. Via Messina,38 20154 Milano – Italia Call Center “ Servizio Clienti” 199.145.145 WWW.bticino.it Info.com@biticino.it...
