  • Page 1 Burglar alarm unit Item No. 3500 User’s manual...

  • Page 3: The Display

    Introduction Table of contents The Unit The keypad The display What is the display showing Operation Enabling – disabling the burglar alarm (antitheft) Activating - deactivating the zones Stopping the siren sound What type of alarm occurred? Editing The Unit menu Accessing the edit menu Setting the date and hour Storing the Jolly number...
  • Page 5 Introduction The Unit The keypad Navigation keys Alphanumeric keypad The display What is the display showing...

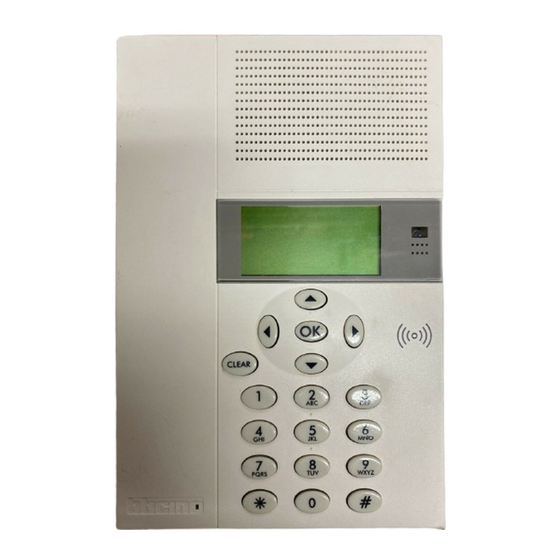

  • Page 6 Introduction ■ The Burglar alarm (antitheft) Unit The Burglar alarm (antitheft) unit combines both Burglar alarm (antitheft) and telephone Dialling device (communicator) func- tions in one apparatus to give you an intelligent detecting and remote alarm signalling system. The Burglar alarm (antitheft) guards the safety of your house; the system is split into zones that can be activated separately;...

  • Page 7: The Keypad

    Introduction ■ The keypad Navigation keys Alphanumeric keypad Writing the text ◆ Press a numeric key several times until the required character Scroll keys is displayed; if the required letter is near the same key as the allow you to scroll the list present letter, wait until the cursor moves of items in the menu ◆...
  • Page 8 Introduction ■ ■ What is the display showing The display Initial page 1 2 3 4 - - - - - - - - System off, System zones 1 2 3 4 - - - - - - - - e.g.: zones 1, 2, 3, 4 active (Max 8 zones) 1 5 / 0 7 / 0 3...
  • Page 9 Introduction ■ What is the display showing 1 2 3 4 - - - - - - - - 1 2 3 4 - - - - - - - - System on, System off, Burglar alarm (antitheft) signal Burglar alarm (antitheft) and telephone call in progress battery dead or damaged and...
  • Page 11 Operation Enabling - disabling the burglar alarm (antitheft) With user code With remote control With transponder key Activating - deactivating the zones With remote control With transponder key From the Zone menu Stopping the siren sound With remote control With user code With transponder key What type of alarm occurred?

  • Page 12: Table Of Contents

    Operation ■ Enabling - disabling the burglar alarm (antitheft) With user code With remote control 1 2 3 4 - - - - - - - - 1 2 3 4 - - - - - - - - When the burglar alarm When the burglar alarm (antitheft) (antitheft) is disabled, an open is disabled, an open lock...
  • Page 13 Operation With transponder key When the burglar alarm 1 2 3 4 - - - - - - - - (antitheft) is disabled, an open lock appears in the middle of the display 2 5 / 0 5 / 0 3 1 2 : 2 3 1 2 3 4 - - - - - - - -...
  • Page 14 Operation ■ Activating - deactivating the zones With remote control The zones (max 8) of the You can deactivate (reactivate) one or more zones at any time. 1 2 3 4 - - - - - - - - system are all active This will allow you to personalise the burglar alarm (antitheft) (e.g.

  • Page 15: (Antitheft)

    Operation With transponder key From the Zone menu The zones (max 8) of the system After accessing the edit menu (next S E L E C T 1 2 3 4 - - - - - - - - are all active section) (e.g.
  • Page 16 Operation ■ Stopping the siren sound If the alarm goes on while you’re there, you can stop the siren With user code as follows: 1 2 3 4 - - - - - - - - With remote control Make sure there are no trespassers in the house 1 2 3 4 - - - - - - - -...
  • Page 17 Operation With transponder key Make sure there are no 1 2 3 4 - - - - - - - - trespassers in the house Press the key on the Unit 1 2 3 4 - - - - - - - - keypad and then bring the key (less than one centimeter) near the reader for 2 seconds...
  • Page 18 Operation ■ What type of alarm occurred? When an alarm signal is displayed, you can find out what type In case of a technical alarm (its symbol appears), you can find it is (intrusion, technical, etc.) and which detector has out which device has produced the alarm and reset it as well.
  • Page 19 Editing The Unit menu Accessing the edit menu Setting the date and hour Storing the Jolly number Making your own list of telephone numbers Setting up the calls How many times should calls be made? Editing vocal messages Changing the user code Using an answering machine Setting up the answering machine Programming the answer...
  • Page 20 Editing ■ ■ The Unit menu Accessing the edit menu This procedure is necessary to access the edit menu: This manual describes the editings that are considered to be helpful when using the Unit. You can access these editings without jeopardizing the proper functioning of the Unit as well as the safety of your house.
  • Page 21 Editing ■ Setting the date and hour In order for the system to constantly keep all memorised events under control, it is important to set the correct date and hour. Type in the current hour and date on D A T E A N D H O U R Accessing the edit menu S E L E C T the keypad;...
  • Page 22 Editing ■ Storing the Jolly number The Jolly number is the first telephone number dialled by the Unit when any type of alarm occurs (intrusion or technical), if the MyHome portal is active, the jolly number shall be that of the portal.
  • Page 23 Editing ■ Making your own list of telephone numbers Press to enter This menu lets you memorise up to 10 telephone numbers Use the Unit keypad to type the name I N D E X B O O K that can be used for your calls, according to the type of alarm you want to enter in the index book as 0 1 : O f f i c e 0 2 :...
  • Page 24 Editing ■ Setting up the calls In case of an alarm, the Unit calls the jolly number and then Accessing the edit menu the numbers that you have programmed among those that you S E L E C T have chosen in the index book according to the type of alarm Select Dialling device (communicator) (max 4 for each type of alarm), for instance, in case of A n t i t h e f t...
  • Page 25 Editing ■ Setting up the calls N U M B E R T O C A L L The list of the 4 telephone numbers 0 1 : n u m b e r 1 0 2 : n u m b e r 2 linked to the plant alarm appears on 0 3 : n u m b e r 3 the display...
  • Page 26 Editing ■ How many times should calls be made? S E L E C T A n t i t h e f t Select Dialling device (communicator) Once the Unit starts making calls after an alarm, it starts C o m m u n i c a t o r operating as follows: and press to enter...
  • Page 27 Editing T E L . F U N C T I O N S Change the number according to C a l l A n s w e r C a l l c y c l e s your needs with the keys N u m b e r Press...
  • Page 28 Editing ■ Editing vocal messages When you receive a call from the Unit, it notifies you on what Personalisable parts are those referred to the address. That’s is happening with a vocal message; for example, you could where you can record a message with your personal data receive a message such as: (name and address) and data referred to the technical alarms and telephone commands;...
  • Page 29 0 3 : t e c h n i c a l 2 distance of 10 – 15 cm from the Unit enter R e c o r d microphone (bticino logo) L i s t e n After recording, select the “Listen” function to make sure the recording...
  • Page 30 Editing ■ Changing the user code The 3500 Burglar alarm (antitheft) is protected by a user code that keeps unauthorized persons from turning on/off the burglar alarm (antitheft) and from accessing the configuration S E T T I N G S...
  • Page 31 Editing ■ Using an answering machine Setting up the answering machine If an answering machine is used, it must be setup with the Unit as follows: Access the edit menu T E L . F U N C T I O N S S E L E C T Use the keys to change the...
  • Page 32 Editing Programming the answer If an answering machine is used, you will have to program it T E L . F U N C T I O N S After the selection, the existing C a l l so that it will answer before the Unit (it normally answers after A n s w e r programming (from OFF to 8 5 rings) If this is not possible, you can change the Unit setup...
  • Page 33 Remote use The My Home portal Alarms Commands Check Answering a call from the Unit Querying the Unit Controlling your home from a distance Memo card...
  • Page 34 SMS message and www.myhome-bticino.com an e-mail through annexed audio and video files. At the same time, it independently responds with actions that you have and if you wish to have this service, contact your installer.
  • Page 35 Remote use ■ ■ Answering a call from the Unit Querying the Unit It is recommended to photocopy and hand out this page to all These simple commands let you know the status of the those who will be called by the Unit in case of an alarm. system at any time.
  • Page 36 Remote use ■ Controlling your home from a distance Call your installer to decide which remote functions you wish to activate (lights turning on, heater …); the installer will properly program the Unit and fill out the memo-card with a The My Home system lets you control the functions in your short description of the function related to it.
  • Page 37 Remote use ■ Memo card Cut, fold and fill out as shown. Remember to keep the “MEMO CARD” with you at all times and to use it for remote activation.
  • Page 38 Remote use ■ Memo card Cut, fold and fill out as shown. Remember to keep the “MEMO CARD” with you at all times and to use it for remote activation.
