Bticino 348220 Quick Start Manual

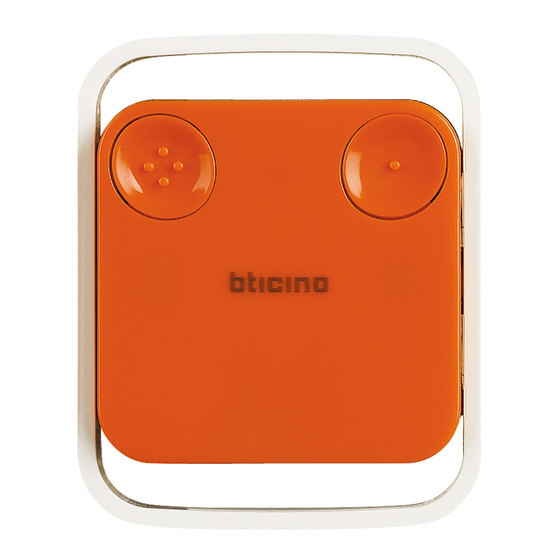

Alarm radio remote control
Description
Radio wave control device recommended for all those installations where an exposed
control device is not desired.
It can also used with the video door entry system, to control accesses.
The remote control must be used with the radio receiver item HC/HD/HS/L/N/NT4618.
Technical data
- Power supply: 3 V lithium battery - type CR2032
- Operating temperature: 5 – 40°C
- Minimum battery duration: 2 years
- Radio frequency: 868.35 MHz
- Range: 100 metres free field
(metal, concrete walls and metal plates reduce coverage)
- Modulation: FSK

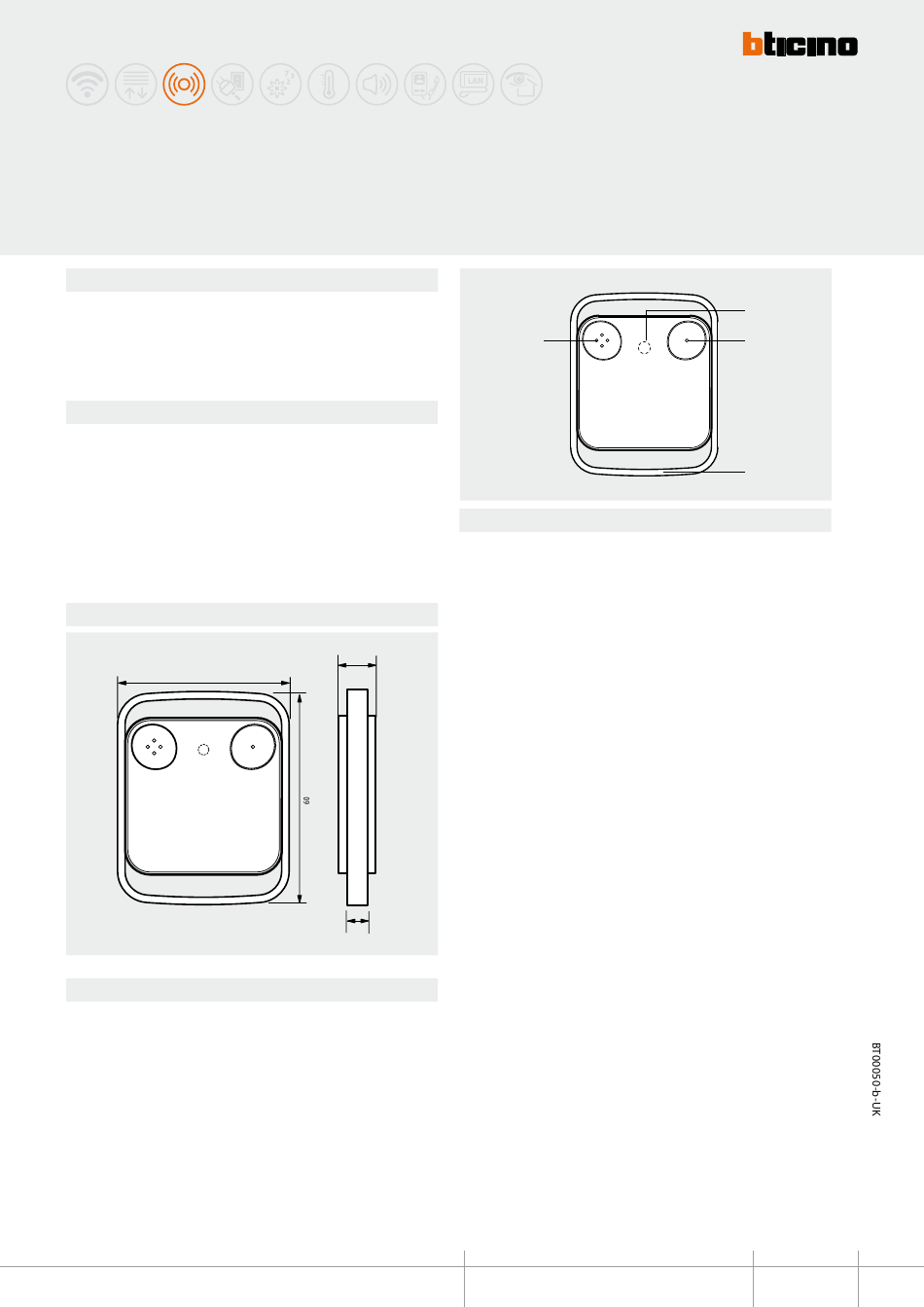

Dimensional data
48
Configuration
Pairing remote controls
1. Switch the system to "maintenance" mode.
2. Press the programming pushbutton of the radio receiver for five seconds, until the red
LED comes on.
3. Press the arming pushbutton for 5 seconds.
4. If the pairing of the device has been performed correctly, the red LED of the radio
receiver will go off.
If this does not happen, repeat the procedure from step 3. If the LED flashes, it means
that the device memory is full.
5. To pair other devices, repeat from step 2.
6. Perform self learning of the system from the central unit.
7. Program the remote controls on the central unit.
8. Exit "maintenance" mode.
Front view
Legend
1 - Arming pushbutton;
2 - Disarming pushbutton;
3 - Key-ring;
4 - Control forwarding notification LED.
13
8
Cancelling remote controls
1. Switch the system to maintenance mode.
2. Remove the power supply from the receiver.
3. Press and hold the programming pushbutton while reconnecting the power supply
to the radio receiver.
4. After 5 seconds the LED flashes orange. If the pushbutton is released at this time, only
the remote controls are cancelled.
5. After releasing the pushbutton, the LED becomes fixed orange. When the LED goes
off, cancellation has been completed.
6. Perform self-learning of the system from the central unit and exit "maintenance"
mode.
Technical sheets – Burglar alarm
1
348220
4
2
3
MY HOME
1
