Chromalox Chroma-FP-OD Series Installation And Operating Manual

Advertisement

Quick Links

POWER
GFEP ALARM
HEAT
ON
SELECT
-02-240

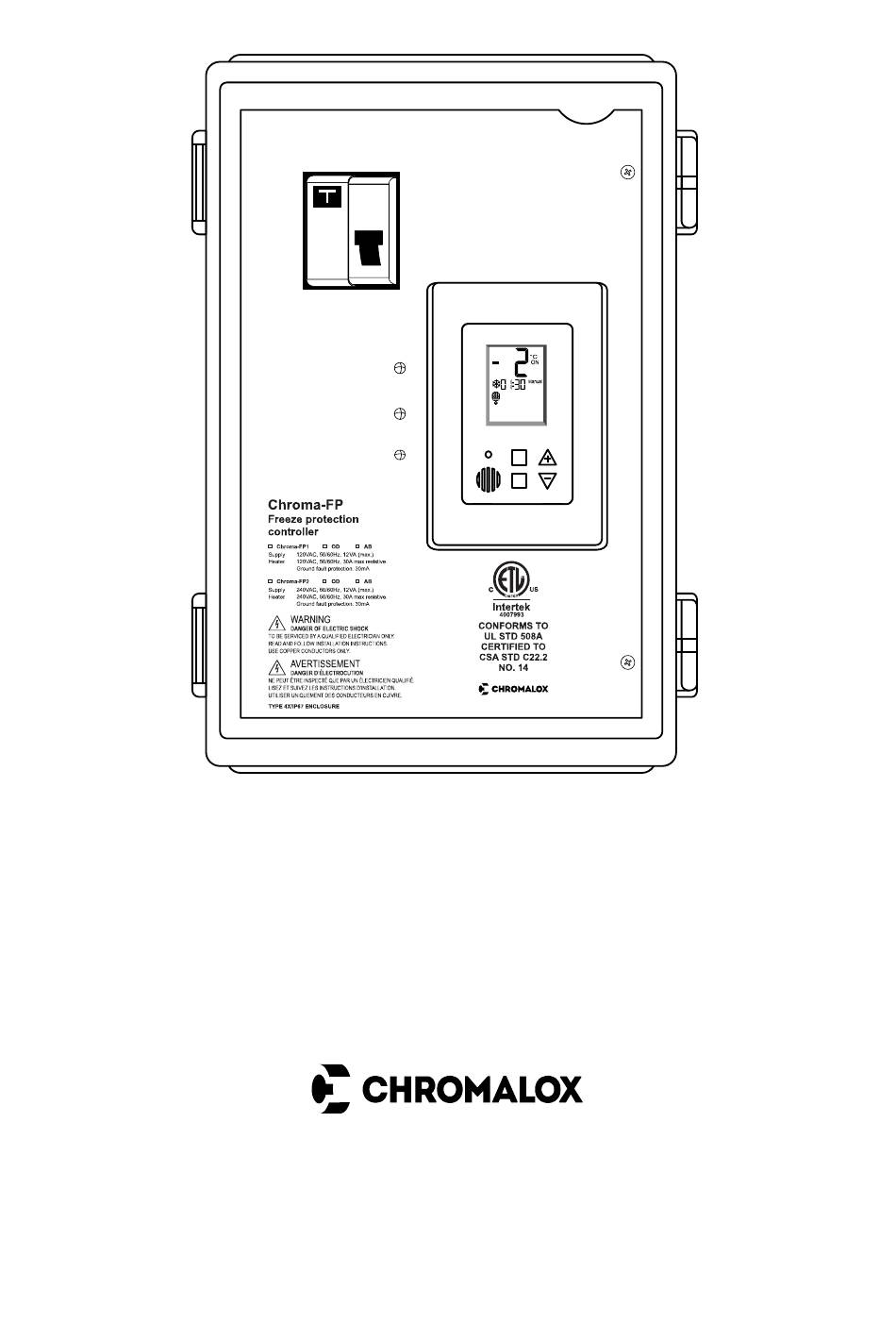

Chroma-FP-OD Series
Installation and Operating manual
Rev2.4

Advertisement

Table of Contents
loading

Summary of Contents for Chromalox Chroma-FP-OD Series

  • Page 1 POWER GFEP ALARM HEAT SELECT -02-240 Chroma-FP-OD Series Installation and Operating manual Rev2.4...
  • Page 2: Table Of Contents

    Temperature sensor readings are out of reliable measuring range ……….. 15 Temperature sensor not connected or short circuit ……...………………….. 15 Slaves communication error………………….……..………………………….. 15 GFEP……………………………………………..………………………………….. 16 MODBUS object list……………………………...……………………………….. 17 BACnet object list ……………………………...……………………………….. 18 Pg. 2 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 3: Introduction

    Introduction The Chroma-FP-OD Series power boxes offer smart and easy control for HEAT TRACING SYSTEMS. It can operate one heating zone. Typical applications include pipes, valves or tanks. The backlit LCD screen provides full interface and information to the system status.
  • Page 4: Chroma-Fp-Od Installation Notes

    Chroma-FP-OD Series Installation PLEASE READ THIS MANUAL AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND USING THE CONTROLLER AND SAVE IT FOR FUTURE USE Installation notes Familiarize yourself with the markings, warnings, components and terminology. The Chroma-FP-OD power boxes and its accessories must be installed by a qualified electrician in accordance with local regulations and the requirements of the NEC (NFPA 72 ) and the CEC part 1.
  • Page 5: Wiring The Chroma-Fp1-Od, Chroma-Fp1-Od-Ab

    120 VAC, 30A by installer. Max. 30A *GFEP Indication - Dry Contact / Alarm NO - COM NC - COM GFEP Tripped SHORT OPEN GFEP NOT Tripped OPEN SHORT Pg. 5 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 6: Wiring The Chroma-Fp2-Od, Chroma-Fp2-Od-Ab

    240 VAC, 30A by installer. Max. 30A *GFEP Indication - Dry Contact / Alarm NO - COM NC - COM GFEP Tripped SHORT OPEN GFEP NOT Tripped OPEN SHORT Pg. 6 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 7: Connecting Chroma-Fp-Od Slaves (Option)

    SLAVE #3 MASTER MAC Address Address Address Address for BMS 1...63 Default 1 Please refer to technician parameter P08 for Salve’s MAC Address. and to parameter P11 for Master/Slave configuration Pg. 7 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 8: Operating Instructions

    The digital clock will count down the remaining time until the heater is turned off. The snow flake icon will disappear from display as long as the heater is turned off. Pg. 8 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings...
  • Page 9: Technician Settings

    Range: 14…77°F / -10…+25°C, Default: 37°F / 3°C As long as the ambient temperature is lower than the temperature Temperature set point P01, the Chroma-FP-OD will turn ON. set point Pg. 9 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 10: P02 - Lower Limit Temperature For Heating

    Use the [+] and [-] buttons to adjust the time delay - Minutes. Range: 0...59 minutes Default: 30 minutes Time delay Note: The time delay countdown will start when the ambient temperatures (minutes) rises above the set point temperature. Cont’ Pg. 10 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 11: P04 - Manual Mode On Time

    “1” - Logic set by TEMPERATURE sensor only. temperature temperature sensor only “2” - Logic set by AQUASTAT sensor only sensor and sensor only aquastat (The display will not show the temperature) Cont’ Pg. 11 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 12: P08 - Mac Address For Bms And For Master-Slaves (Option)

    Address range for BMS 1...60, default 1 - For controller set by P11 as Slave – Address range 14...16, default 14 Select “0” for NO COMMUNICATION system (default). Cont’ Pg. 12 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 13: P09 - Test Conditions Mode

    Range: -9…+9°F / -6…+6°C Default: 0°F / 0°C Note: If the technician did not manually exit test/commissioning mode, the unit will Offset automatically return to normal mode after 5 hours. Pg. 13 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 14: Save Changes And Return To Normal Display

    Short measuring times: A real 1 hour will take 1 minute and a real 1 minute will take 1 second. DIP switches S3 and S4 – Not in use (must be in OFF position) S3 OFF, S4 OFF Pg. 14 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 15: Bms - Bacnet/Modbus

    “SensErr” Will appear on display with internal sensor fault . Temperature Sensor error Slaves – Communication error Aux1 - Slaves communication error “Aux1” and “00” Will appear on display. Slaves communication error Pg. 15 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 16: Gfep

    - Test button should be pressed 3 times and the GFEP should “TRIPPED” Indicator work normally. (red) - If the GFEP is not operating normally, it must be replaced. Pg. 16 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 17: Modbus Object List

    0 – No error 1 – Internal sensor 2 – External sensor The MODBUS Register No. X is addressed in the MODBUS Register Address (PDU) X-1. All Registers are signed Integer 16 bit. Pg. 17 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 18: Bacnet Object List

    Heater 4 BinaryOutput_#4 1-On,0-Off Heater 5 BinaryOutput_#5 1-On,0-Off InternalHeater BinaryValue_#0 1-On,0-Off OnOff 0-Off BinaryValue_#2 1-On,0-Off C_F_Scale 0-Off BinaryValue_#4 1-On,0-Off CommissioningMode 0-Off BinaryValue_#5 1-On,0-Off RestoreDefaults 0-Off BinaryValue_#14 1-On,0-Off GroundFault 0-Off Pg. 18 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 19 Notes Pg. 19 Chroma-FP-OD Series 1-800-443-2640 Owner’s manual & Technician Settings www.chromalox.com...
  • Page 20 1-800-443-2640 www.chromalox.com...
