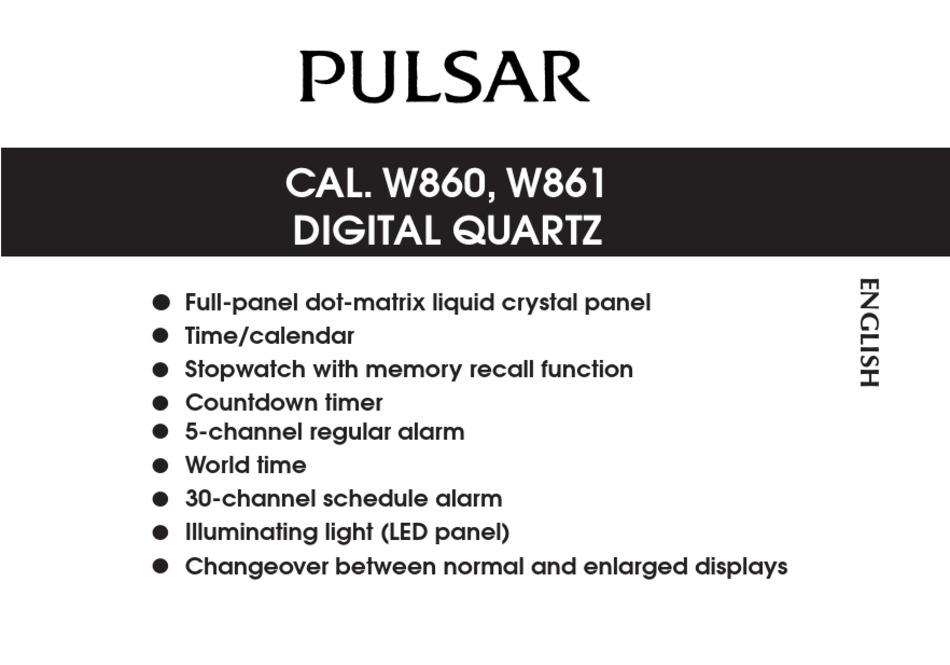

- Page 1 CAL. W860, W861 DIGITAL QUARTZ l Full-panel dot-matrix liquid crystal panel Time/calendar Stopwatch with memory recall function Countdown timer 5-channel regular alarm World time 30-channel schedule alarm Illuminating light (LED panel) Changeover between normal and enlarged displays...
-
Page 2: Mode Change
Selection of a desired mode can be made by pressing buttons C or D in the MENU display. (For Cal. W861) (For Cal. W860) With each press, the mode in the digital display changes in the following order: TIME/CALENDAR... -
Page 3: Illuminating Light (Led Panel)
Select the desired mode. * When button B is pressed, the opening animation display is shown before the se- lected mode appears. l To return to the MENU display, press button A. ILLUMINATING LIGHT (LED panel) Turn on the LED light. * The display panel is evenly illuminated for 3 seconds. (For Cal. W861) (For Cal. W860) - Page 4 TIME/CALENDAR MODE(TIME) l Once the time/calendar of your area is set in the TIME/CALENDAR mode, the times of the 39 cities covered in the WORLD TIME mode will be set automati- cally. Press in MENU display to show TIME/CALENDAR mode. Year Month Date...
-
Page 5: Time/Calendar Setting
TIME/CALENDAR SETTING Press for 2 seconds to show TIME/CALENDAR SETTING display. Press to select the digits to be adjusted. Selection of the digits Hour Minute City Second Date � � � � Month 12-/24-hour indication Year Set the flashing digits. (Increasing digits) Set the flashing digits. - Page 6 CHANGEOVER BETWEEN STANDARD TIME AND DAYLIGHT SAVING TIME If the daylight saving time is effective in the selected city, press to show the daylight saving time. * With each press of button C, the standard time and daylight saving time of the city are alternatively shown. CHANGEOVER BETWEEN HOME TIME AND WORLD TIME Press for 2 seconds to show WORLD TIME mode. * Press button D again to return to TIME/CALENDAR mode.
-
Page 7: Stopwatch Mode(Chrono)
STOPWATCH MODE(CHRONO) l The stopwatch measures up to 99 hours, 59 minutes and 59.99 seconds in 1/100 second increments. Press in MENU display to show STOPWATCH mode. Lap No. Start / Stop / Restart Time measured Measure lap & split time / Reset Lap time and split time measurement •... -
Page 8: Memory Recall Function
MEMORY RECALL FUNCTION l The first 100 lap and split times are automatically stored in memory. l The stored data can be recalled either during or after the measurement. Lap time Split time Press to activate the memory recall function.* With each press, stored data are recalled from the oldest to the newest. -
Page 9: Timer Mode
TIMER MODE l The timer can be set from 10 seconds up to 99 hours, 59 minutes 59 seconds in one-second increments. l The number of times the countdown is repeated can be set from 1 to 99 times. Press in MENU display to show TIMER mode. Set time Mode indicator... -
Page 10: Timer Setting
TIMER SETTING Press for 2 seconds to show TIMER SETTING display. Press to select the digits to be adjusted (hour / minute / second / number of times the countdown is repeated Set the flashing digits. (Increasing digits) Set the flashing digits. (Decreasing digits) Return to TIMER mode. -
Page 11: Timer Operation
TIMER OPERATION No. of times the countdown is repeated Start / Stop / Restart Time measured Reset * When the set time is up, a warning sound beeps for 5 seconds. To stop it manu- ally, press any of the buttons. -
Page 12: Alarm Mode
ALARM MODE l The alarm can be set to ring daily at five different times per day. l The alarms can be engaged and disengaged independently of one another. Press in MENU display to show ALARM mode. Alarm channel Set alarm time Alarm mark “... -
Page 13: Alarm Time Setting
ALARM TIME SETTING Press to select the desired alarm channel (AL-1 – AL-5). Press for 2 seconds to show ALARM SETTING display. Press to select the digits to be adjusted (hour/minute). Set the flashing digits. (Increasing digits) Set the flashing digits. (Decreasing digits) Return to ALARM mode. - Page 14 ALARM ENGAGEMENT/DISENGAGEMENT l The alarms can be engaged and disengaged independently of one another. Press to select the desired alarm channel ( AL -1 – AL -5). With each press, the selected alarm is engaged and disengaged alter- nately. * At the designated time, the alarm rings for 20 seconds. To stop it manually, press any of the buttons.
-
Page 15: World Time Mode
WORLD TIME MODE l The time of 39 cities in different time zones throughout the world can be dis- played together with their respective country code for overseas telephone call. Press in MENU display to show WORLD TIME mode. City mark Current time of selected city Country code/DST... - Page 16 CHANGEOVER BETWEEN STANDARD TIME AND DAYLIGHT SAVING TIME If the daylight saving time is effective in the selected city, press for 2 seconds to show the daylight saving time. * Press button B for 2 seconds to return to the standard time. TIME DIFFERENCES AND COUNTRY CODES (As of April 2007) GMT = Greenwich Mean Time City mark Country name...
- Page 17 City mark City name Country name Country code ± (hours) B E R Berlin* Germany A T H Athens* Greece Cairo Egypt C A I J R S Jerusalem* Israel Moscow* Russia M O W Riyadh Saudi Arabia R U H T H R Tehran* Iran...
- Page 18 City mark City name Country name Country code ± (hours) Tokyo Japan T Y O Australia A D L Adelaide* + 9.5 S Y D Sydney* Australia + 10 Noumea New Caledonia N O U + 11 New Zealand W L G Wellington* + 12 H N L...
-
Page 19: Schedule Alarm Mode
SCHEDULE ALARM MODE l The schedule alarm can be set to ring at 30 different times. Year, month, date, hour, and minute can be set for each schedule. l A message up to 14 characters can also be set. It is displayed at the same time when the alarm sounds. - Page 20 * Hour and minute, date and month, and year can be alternately displayed in one- second increments. * The schedule mark is displayed if any schedule alarm has been set for the day. SCHEDULE ALARM SETTING Press to select the desired schedule alarm channel (SAL-01 – SAL-30) Press for 2 seconds to show SCHEDULE ALARM SETTING dis- play.
- Page 21 Press to select the digits to be adjusted (minute/hour/date/month/ year). Set the flashing digits. (Increasing digits) Set the flashing digits. (Decreasing digits) Return to SCHEDULE ALARM mode. [When editing MESSAGE:] Press to show MESSAGE SETTING display when MESSAGE is flashing . Advance the flashing cursor in order.
- Page 22 Press to show the characters to input. Advance the flashing character in order. Move back the flashing character. Set the flashing character. Return to SCHEDULE ALARM mode. * Press buttons C and D simultaneously to erase the message when advancing or moving back the flashing cursor. * If no message is set, “ NO MESSAGE” is displayed. In such a case, the schedule alarm is not engaged.
- Page 23 Preset message setting l For setting a preset message, select the corresponding number to the desired preset message in the table below. . ‘0 MEETING ‘5 LUNCH ‘1 BIRTHDAY ‘6 APPT ‘2 DATE ‘7 ‘3 MOVIE ‘8 ‘4 DINNER ‘9 PARTY...
-
Page 24: Setting Mode
SETTING MODE l The setting of the following functions can be adjusted：Opening animation dis- eco mode, LCD contrast, LED color, key sound (confirmation play, time display, sound for button operation), alarm sound, schedule alarm sound, and preset messages Press in MENU display to show SETTING mode. Select the item to be adjusted. - Page 25 ADJUSTING EACH ITEM [ANIMATION] l The opening animation display can be engaged (ON) or disengaged (0FF). [TIME MODE] lThe time display can be selected between normal and enlarged displays. [Ex. : In Time/Calendar mode] A: Normal display B: Enlarged display [ECO MODE] l The watch display automatically shuts down to reduce electricity consumption after no button operation is made for a certain period of time (ECO mode).
- Page 26 [LCD CONTRAST] l The contrast on the liquid crystal display can be adjusted in 7 steps from level “ -3” to “+3”. The contrast becomes higher as the digits indicating the contrast level increase and becomes lower as they decrease. l The contrast level has been initially set at “0”...
- Page 27 l When the key sound mark is displayed, the confirmation sound beeps with each press of the buttons. [ALARM SOUND] l The alarm sounds can be selected between three types of sounds. [SCHEDULE ALARM SOUND] l The schedule alarm sounds can be selected between three types of sounds. [ADJUSTMENT OF THE PRESET MESSAGES] l The preset messages can be adjusted.
-
Page 28: Notes On Using The Watch
NOTES ON USING THE WATCH TIME/CALENDAR MODE [TIME/CALENDAR SETTING] l The calendar automatically adjusts for odd and even months including February of leap years from 2007 to 2099. l Once the year, month and date have been set, the day of the week is automatically set. l Setting the seconds: • With the second digits flashing, press button C or D in accordance with a time signal. The second digits are reset to “00”. - Page 29 STOPWATCH MODE l After 99 hours, 59 minutes and 59.99 seconds have been measured, the stopwatch stops. Press button D to reset the stopwatch. l Restart and stop of the stopwatch can be repeated by pressing button C. l Measurement of the lap time and split time can be repeated by pressing button D. l The lap number counts up to “ 999.” After “ 999”, the number is displayed in three digits such as “000” for 1,000, “ 001” for 1,001, and so on. l The lap time and split time measured remain displayed for 5 seconds together with the flashing lap and split numbers. Then, the display automatically returns to the measurement in progress. Lap no. Lap time Split time Split no.
- Page 30 l If no measurement is made, “ - - - -” mark will be displayed when button B is pressed to activate the memory recall function. TIMER MODE [TIMER SETTING] l The flashing digits move quickly if button C or D remains pressed. l If the watch is left untouched with the digits flashing, it will automatically return to the TIMER mode in 2 to 3 minutes. [TIMER OPERATION] l Restart and stop of the timer can be repeated by pressing button C. ALARM MODE [ALARM TIME SETTING] l The flashing digits move quickly if button C or D remains pressed. l If the watch is left untouched with the digits flashing, it will automatically return to the ALARM mode in 2 to 3 minutes.
- Page 31 countries. SCHEDULE ALARM MODE l At the designated time, the schedule is displayed while the alarm rings for 20 sec- onds. The schedule mark flashes for 1 hour. ILLUMINATING LIGHT (LED panel) l The LED (light emitting diode) panel loses its luminance as the battery voltage gets lowered. Also, its luminance level decreases gradually with use. l The luminance level of LED may decrease if it is left in low temperature.
-
Page 32: Battery Change
When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. l We recommend that you contact an AUTHORIZED PULSAR DEALER for battery replacement. Battery life indicator When the battery voltage becomes low, the battery mark starts flashing on the dis- play. In such a case, have the battery replaced with a new one as soon as possible. - Page 33 Press and hold buttons A, B, C and D at the same time for 2 to 3 seconds. The display will become blank. When the buttons are released, time/calendar display will appear and “2007 1-JAN 12:00'00" MON” will be displayed. * Before using the watch, set the time/calendar and alarm.
-
Page 34: To Preserve The Quality Of Your Watch
WATER RESISTANCE l Non-water resistant • If the watch becomes wet, have it checked by an AUTHORIZED PULSAR DEALER or SERVICE CENTER. l Water resistant 5/10/15/20 bar • Do not operate the buttons when the watch is wet or in water. If used in sea water, rinse the watch in fresh water and dry it com- pletely. - Page 35 * Pressure in bar is a test pressure and should not be considered as correspond- ing to actual diving depth since swimming movement tends to increase the pressure at a given depth. Care should also be taken on diving into water. * * We recommend that you wear a PULSAR Diver's Watch for scuba diving. TEMPERATURES MAGNETISM Operational temperature Your watch will not be range: Between -5° C affected by magnetism. (+23° F) and 50° C(122° D i s p l a y t e m p e r a t u r e CARE OF CASE AND BRACELET +40°C...
-
Page 36: Periodic Check
Years years. Have your watch watch or hit it against checked by an AUTHOR- hard surfaces, as this IZED PULSAR DEALER or SERVICE may cause damage. CENTER to ensure that the case, buttons, gasket and crystal seal re- CHEMICALS main intact. - Page 37 STATIC ELECTRICITY The IC (Integrated C i r c u i t ) u s e d i n your watch will be a f fe c t e d by s t a t i c electricity which may disturb the display. Keep the watch away from close contact with objects such as TV screens...
