Summary of Contents for Pulsar W866

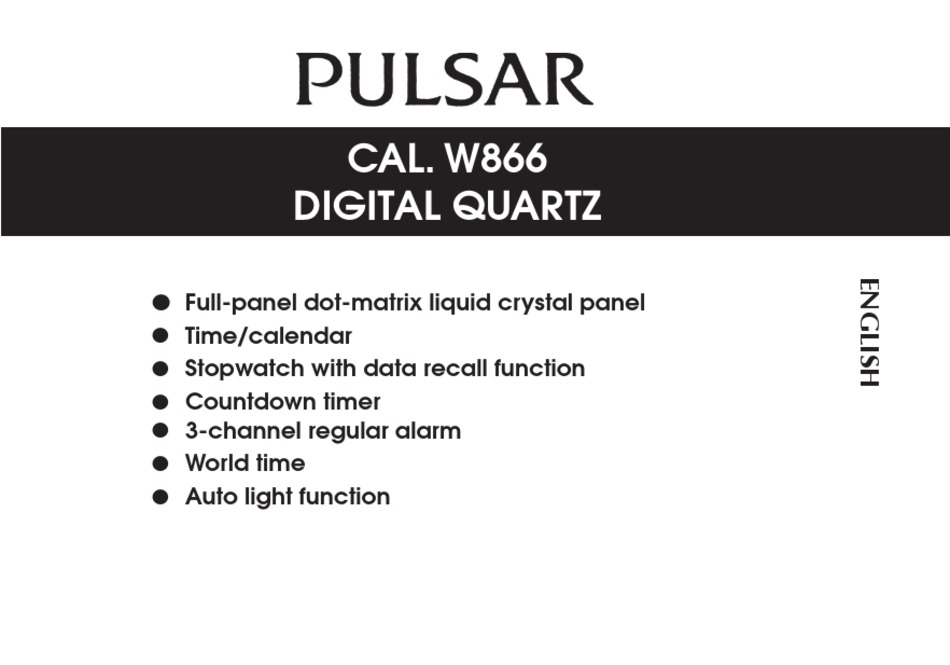

- Page 1 CAL. W866 DIGITAL QUARTZ l Full-panel dot-matrix liquid crystal panel Time/calendar Stopwatch with data recall function Countdown timer 3-channel regular alarm World time Auto light function...
-
Page 2: Mode Change
MODE CHANGE With each press, the mode changes in the following order. STOPWATCH TIME DATA RECALL (CHRONO) MODE MODE MODE ALARM WORLD TIME TIMER MODE MODE MODE... -
Page 3: Illuminating Light
ILLUMINATING LIGHT Press to turn the backlight on. AUTO LIGHT FUNCTION l The auto light function allows you to turn the illuminating light on by pressing any button. Keep holding down for 2 seconds to activate the auto light function. The auto light mark appears on display to indicate the auto light function is turned Auto light mark... -
Page 4: Time Mode (Time)
TIME MODE (TIME) Press until the watch enters the TIME mode. “TIME” is shown, and the watch shows the TIME display. Keep holding down for 4 seconds to select a desired display. In the TIME mode, you can choose the display format from three options . - Page 5 CHECKING THE HOME CITY Home city Press to show the home city. The home city currently set is shown. KEY SOUND/HOURLY TIME SIGNAL SETTING Press to turn the key sound and the hourly time signal on or off. Key sound/hourly time signal mark The Sound Demo (melody of Alarm_1) can be heard by pressing and holding buttons C and E at the same time.
-
Page 6: Time/Calendar Setting
TIME/CALENDAR SETTING Press for 2 seconds to show the TIME/CALENDAR SETTING display. Press to select the item to be adjusted. Refer to the SEQUENCE OF THE ITEM SETTINGS on the next page. Press to increase the digits (+) or move forward. Keep holding down each button to fast-forward or rewind quickly. - Page 7 SEQUENCE OF THE ITEM SETTINGS Second Hour Minute Home city Press the button to move on to the next item. Eco mode Date Language Month Calendar format Time format Year...
- Page 8 NOTES ON SETTINGS • The calendar automatically adjusts for odd and even months including February of leap years up to 2066. • Once the year, month and date have been set, the day of the week is automatically set. *1 Calendar format Choose from "Date-Month-Year", "Month-Date-Year"...
-
Page 9: Stopwatch Mode (Chrono)
STOPWATCH MODE (CHRONO) l The stopwatch measures up to 9 hours, 59 minutes and 59.99 seconds in 1/100 second increments. Press until the watch enters the STOPWATCH mode. “CHR” is shown, and the watch shows the STOPWATCH display. Current time Start/Stop/Restart Measure lap/Reset After 9 hours, 59 minutes and 59.99 seconds have been measured,... - Page 10 STOPWATCH OPERATION When a new measurement is commenced, the lap time data obtained from the previous measurement will be automatically deleted. Lap number Press to start the stopwatch. While the stopwatch is measuring, the stopwatch mark is flashing. Press to take a lap time. Lap time LAP 1 LAP 2...
- Page 11 DATA RECALL MODE (DATA) l The first 100 lap times are automatically stored in memory. Press until the watch enters the DATA RECALL mode. “DATA” is shown, and the watch enters the DATA RECALL display. Press to view the contents of the data in the order shown in the illustration on the next page.
- Page 12 Total Lap data 1 Last lap Average Best lap The display changes every second.
- Page 13 HOW TO DELETE THE DATA Keep holding down to delete the data. Keep holding down again for 2 seconds to confirm the deletion of all the data. I f t h e r e i s n o d a t a , " - - - - " w i l l b e displayed.
-
Page 14: Timer Mode
TIMER MODE l The timer can be set from 10 seconds up to 9 hours 59 minutes 59 seconds in one-second increments. Press until the watch enters the TIMER mode. "TMR" is shown, and the watch shows the TIMER display. Start/Stop Reset... -
Page 15: Timer Setting
TIMER SETTING Press for 2 seconds to show the TIMER SETTING display. The second digits start flashing. Press to increase the digits (+) or move forward. Keep holding down each button to fast-forward or rewind quickly. Press to decrease the digits (-) or move backward. Press to select the item to be adjusted. -
Page 16: Timer Operation
TIMER OPERATION Start/Stop Press to start the timer. While the timer is counting, the timer mark appears. Press to stop the timer. Reset Timer mark Press to reset the timer. The warning sound starts to beep from 3 seconds before the set time is up. -
Page 17: Alarm Mode
ALARM MODE l The three-channel daily alarm sounds at a designated time every 24 hours. Each alarm channel can be engaged or disengaged independently. Press until the watch enters the ALARM mode. "ALM" is shown, and the watch shows the ALARM display. Alarm channel Press to select an alarm channel. -
Page 18: Alarm Time Setting
ALARM TIME SETTING Press for 2 seconds to show the ALARM SETTING display. The hour display starts flashing. Press to increase the digits (+) or move forward. Keep holding down each button to fast-forward or rewind quickly. Press to decrease the digits (-) or move backward. Press to select the item to be adjusted. - Page 19 ALARM ENGAGEMENT/DISENGAGEMENT Press to select an alarm channel. With each press, the alarm is engaged and disengaged alternately. When the alarm is engaged, the alarm mark appears on display. Alarm mark ALARM SOUND PREVIEW Each alarm has a different sound. To test the alarm sound, press the button C for 2 seconds or more.
-
Page 20: World Time Mode
WORLD TIME MODE l The time of 44 cities in different time zones throughout the world can be displayed. l Daylight saving time can also be set (except for GMT). Press until the watch enters the WORLD TIME mode. Press to select a desired display either with date or with current time in home city. -
Page 21: Daylight Saving Time Setting
Press to select the city in ascending order. Keep holding down each button to show the animation of the names of the cities automatically. Press to select the city in descending order. DAYLIGHT SAVING TIME SETTING If the daylight saving time is effective in the selected city, keep hold- ing down to show the daylight saving time. -
Page 22: Time Differences
TIME DIFFERENCES Time Time difference difference City code City name City code City name from GMT from GMT Dubai Lisbon +4.5 Kabul London Karachi Paris +5.5 Delhi Rome Dhaka Berlin +6.5 Yangon Athens Bangkok Cairo Jakarta Moscow Singapore Jeddah Hong Kong Baghdad Beijing +3.5... - Page 23 Time Time difference difference City code City name City code City name from GMT from GMT Tokyo Los Angeles +9.5 Adelaide Denver Guam Chicago Sydney New York Gold Coast Montreal Noumea Boston Wellington Santo Domingo Honolulu Buenos Aires Anchorage Rio de Janeiro Vancouver Azores In some countries, the daylight saving time may be in effect.
-
Page 24: Battery Change
When the battery expires, be sure to replace it as soon as possible to prevent any malfunction. l We recommend that you contact an AUTHORIZED PULSAR DEALER for battery replacement. Battery life indicator When the battery voltage becomes low, the battery mark starts flashing on the display. - Page 25 Necessary procedure after battery change After the battery is replaced with a new one or if an abnormal display (broken digits, etc.) appears, follow the procedure below to reset the IC. Press and hold buttons A, B, C and E at the same time for more than 3 seconds. The display will show "TIME"...
-
Page 26: To Preserve The Quality Of Your Watch
WR to 3 bar, such as accidental for scuba diving. We recommend that contact with splashes of water or rain, but you wear a PULSAR Diver’s watch for it is not designed for swimming or diving. scuba diving. - Page 27 * Before using the water resistance 5, 10, 15 or 20 bar watch in water, be sure the crown is pushed in completely. Do not operate the crown when the watch is wet or in water. If used in sea water, rinse the watch in fresh water and dry it completely.
- Page 28 SHOCKS & VIBRATION TEMPERATURES O p erational temp erature Light activities will not affect r a n g e : B e t w e e n - 5 ° C your watch, but be careful (+23° F) and 50° C (122° F) not to drop your watch or hit it against hard surfaces, as this may cause damage.
-
Page 29: Periodic Check
Years your watch checked by an w h i c h m a y d i s t u r b t h e AUTHORIZED PULSAR display. Keep the watch DEALER or SER VICE CENTER to away from close contact with objects...
