Ojmar LOCKR COMBI 8001 Installation And Assembly page 2

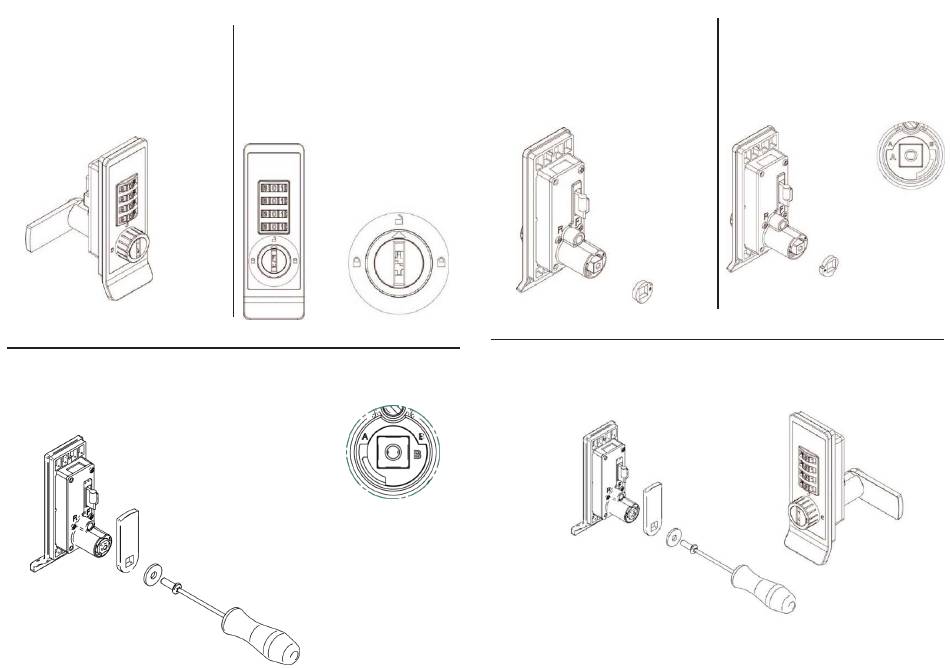

HOW TO CONVERT A RIGHT HAND (RH) LOCK TO A LEFT HAND (LH) LOCK
Important!
Please note all locks are supplied as stardard as RH.
(See diagram bellow) If LH locks are required please
change hand before fitting.
Before converting to a LH lock please ensure key
cylinder is inserted.
Right hand
Lock
2.
Unscrew the fixing screw from the cam, removing
both the cam and washer. Do not turn. Please note
position of end cap. See diagram bellow:
1.
Ensure that the lock is in the open position with the
cam and the blue indicator in the locked position See
diagram bellow:
Note position of end cap
in place for RH operation.
3.
Remove end cap.
5.
Refit cam and washer in the open vertical position.
The lock will now work for LH operation. See diagram
bellow:
4.
Turn end cap horizontally 180º and replace. Please note
position of end cap. See diagram bellow:
Note position of end
cap in place for LH
operation
Left hand
Lock
