3. Insert a flathead screwdriver in the plate groove on the top
edge of the filter access door and gently pry the filter
access door off (FIGURE 6.2).
4. Pull up and remove the humidifier bottle adapter
(FIGURE 6.2).
5. Replace the filter access door and install the air scoop onto
the filter access door by inserting the six tabs on the air scoop
into the six slots on the sides of the filter access door.

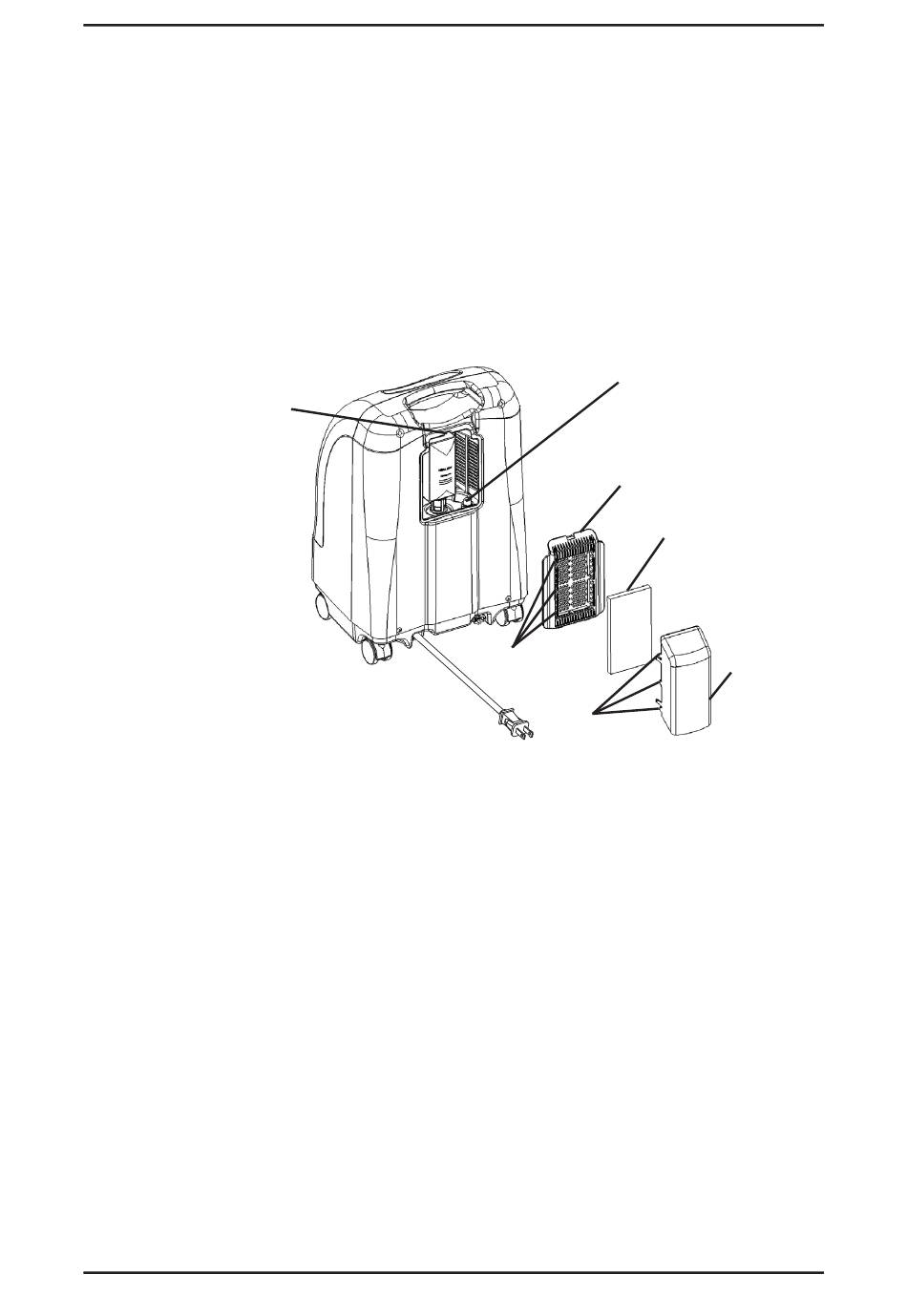

Insert Flat Head
Screwdriver Here
FIGURE 6.2
6. Attach the humidifier bottle adapter to the humidifier
bottle by turning the wing nut on the humidifier bottle
counterclockwise until it is securely fastened. See Detail
"A" in FIGURE 6.3.
7. Place the humidifier bottle/adapter assembly in the
humidifier compartment on the concentrator. See Detail
"B" in FIGURE 6.3.
8. Attach oxygen tubing from the humidifier bottle/adapter
assembly to oxygen outlet connector on the concentrator.
See Detail "B" in FIGURE 6.3.
9. Attach the cannula/patient supply tubing to the
humidifier bottle outlet. See Detail "B" in FIGURE 6.3.
10. After assembly, ensure that oxygen is flowing through the
cannula.
