Instruction Manual
Air Compressor
61018
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec 61018
Summary of Contents for WilTec 61018

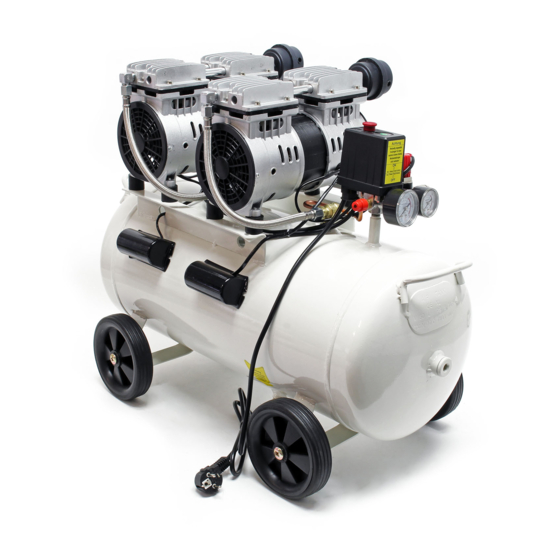

- Page 1 Instruction Manual Air Compressor 61018 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Frequency (㎐) Nominal rotation speed (rpm) 1415 ℓ ⁄ Displacement ( 2 × 110 8 (115 psi) Max. operational pressure (㍴) Capacity (ℓ) Net weight (㎏) © by WilTec Wildanger Technik GmbH Item 61018 Page 3 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 4 The compressor tank must be checked every two years. Regularly check the parts of the tool parts. If there are rusted areas on the tank or if the tank does not pass the pressure test, the tank must be scrapped. © by WilTec Wildanger Technik GmbH Item 61018 Page 4 http://www.WilTec.de...
-
Page 5: Troubleshooting
Valve flap fault or leak Clean or replace. Wear and tear on the piston rubber Replace piston rubber cup. © by WilTec Wildanger Technik GmbH Item 61018 Page 5 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de... - Page 6 Exploded view © by WilTec Wildanger Technik GmbH Item 61018 Page 6 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 7 53 Pressure switch 26 Lap hoop 54 Y40 pressure gauge Hexagon socket head cap screws 55 Adjustable oil-water separator M5×150 28 Flat gasket 56 Safety valve © by WilTec Wildanger Technik GmbH Item 61018 Page 7 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 8 German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin. This symbol indicates that this electric device must not be disposed of with the domestic waste.
