Symmons Dia SPB-3510-1.5 Operation & Maintenance Manual

SPB-3510-1.5
Dia Single Lever Bar Sink Faucet
™
Operation & Maintenance Manual
Model Number
SPB-3510-1.5
Modifications
-1.0 1.0 gpm (3.8 L/min) flow restrictor outlet
spray
-1.5 1.5 gpm (5.7 L/min) flow restrictor outlet
spray
Delete
2.2 gpm (8.3 L/min) flow restrictor
Suffix 1.5 outlet spray
-DP4
4" deck plate for single hole mount
faucets
-STN Satin nickel finish
Note: Append appropriate -suffix to model number.

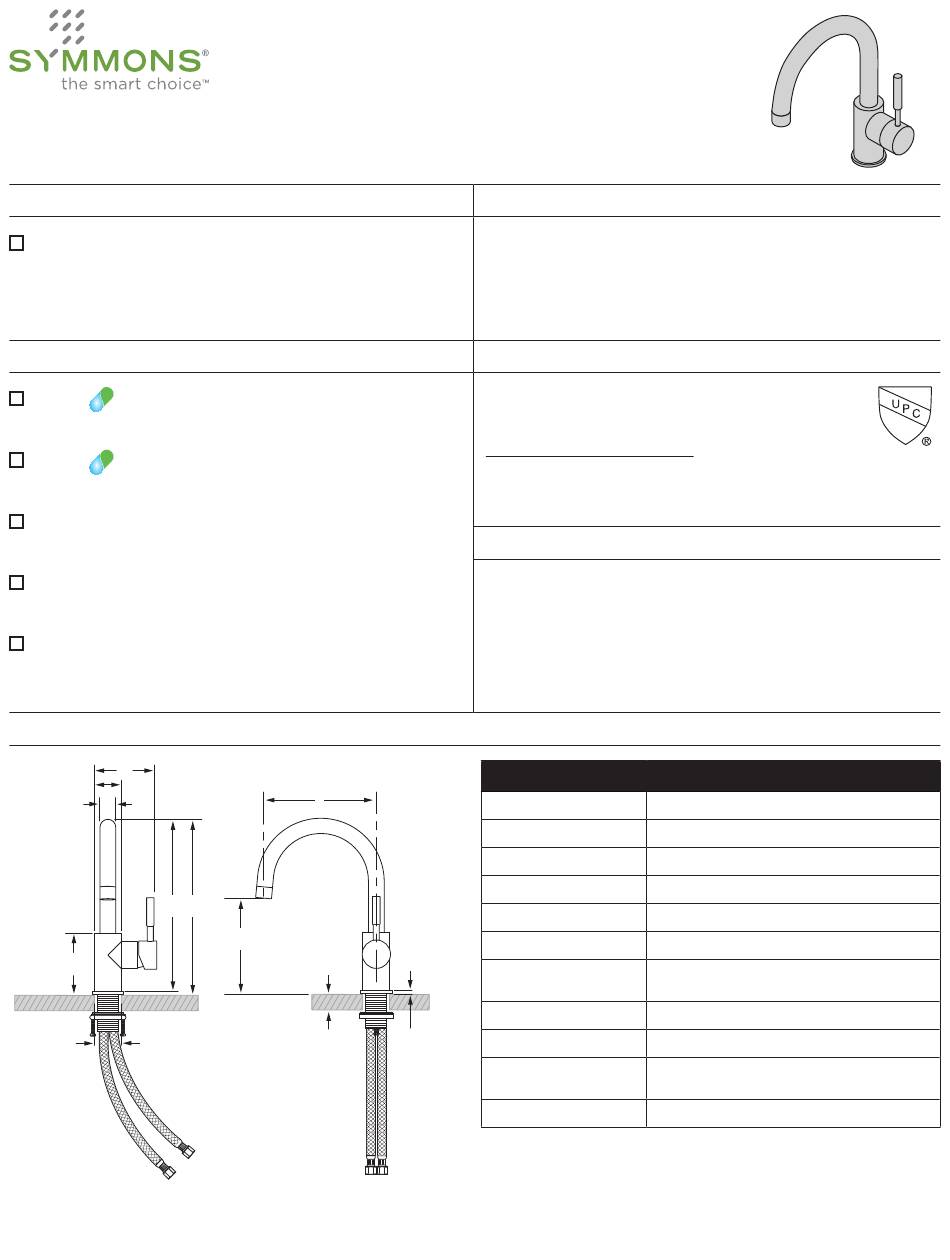

Dimensions
A A
B B
C C
E E F F
D D
G G
Note: Dimensions are subject to change without notice.

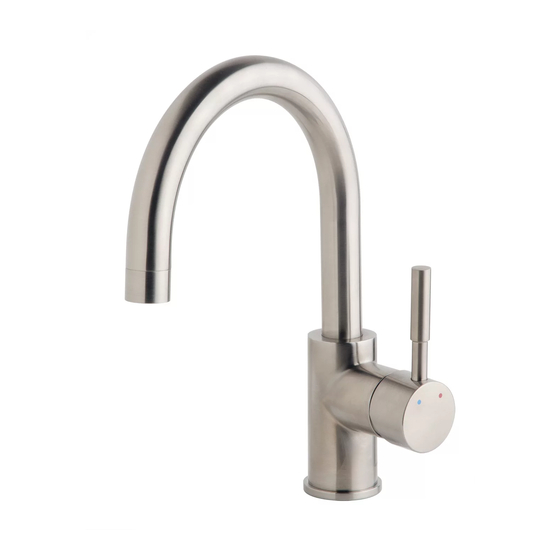

Dia Single Lever Bar Sink
Faucet
I I
H H
J J
Specifications
Dia single lever bar sink faucet includes ceramic
cartridge, braided hose connections, rigid/swivel spout
and 1.5 gpm (5.7 L/min) flow restrictor.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
For California Residents
WARNING: This product contains chemicals known to the
State of California to cause cancer, birth defects, or other
reproductive harm.
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
D
E
F
G
(Hole Size)
H
K K
I
J
K
Measurements
4", 102 mm
1 5/8", 41 mm
1", 25 mm
3 7/8", 98 mm
10 13/16", 275 mm
11", 279 mm
Min. 1 1/4", 32 mm
Max. 1 3/8", 35mm
6", 152 mm
7", 178 mm
Min. 7/8", 22 mm
Max. 2 3/8", 60 mm
3/16", 5 mm
