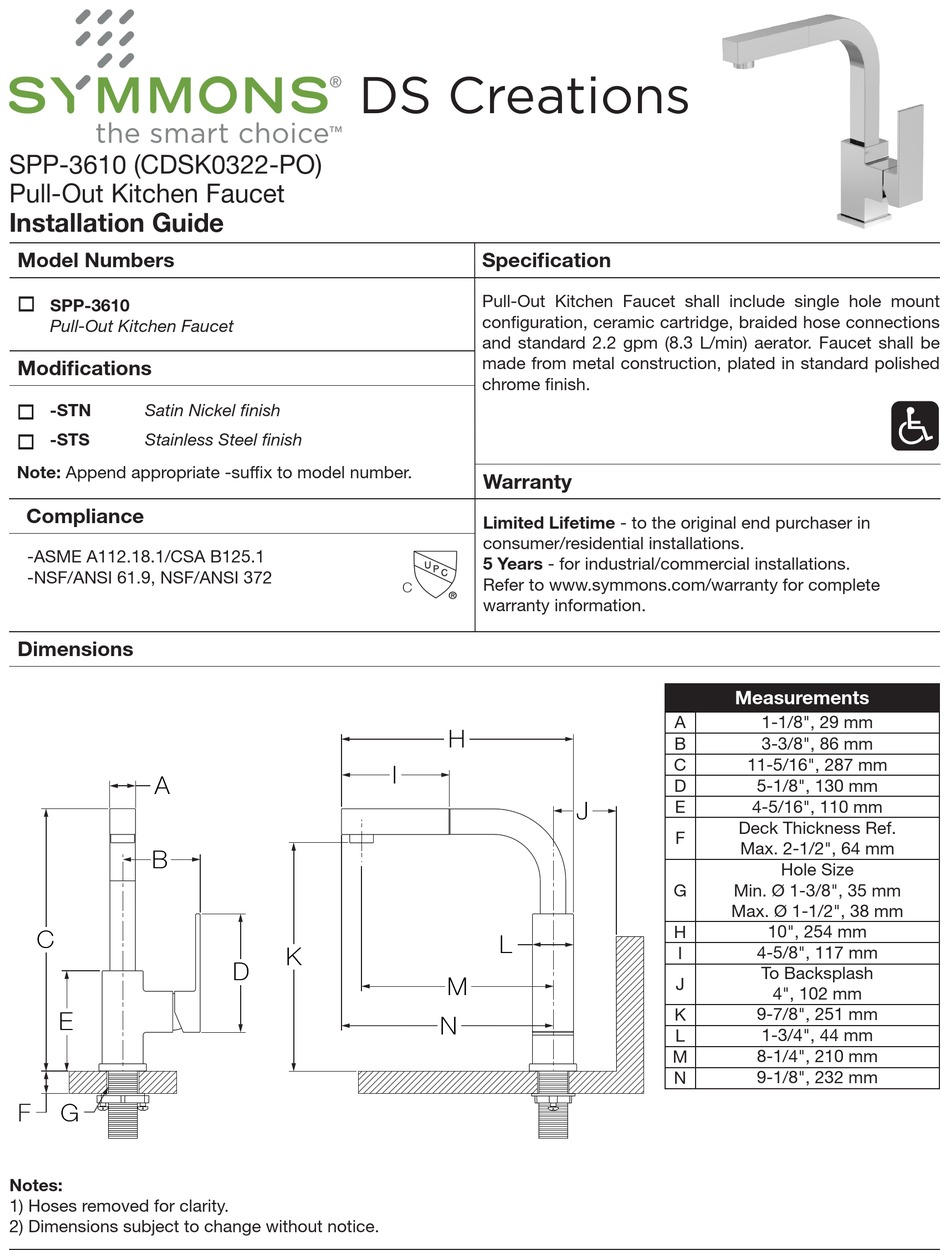

Symmons DS Creations SPP-3610-STN Installation Manual

SPP-3610 (CDSK0322-PO)
Pull-Out Kitchen Faucet
Installation Guide
Model Numbers

SPP-3610
Pull-Out Kitchen Faucet
Modifications
-STN
Satin Nickel finish

-STS Stainless Steel finish

Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
Dimensions
A A
B B
C C
E E
F F G G
Notes:
1) Hoses removed for clarity.
2) Dimensions subject to change without notice.
DS Creations
c
I I
K K
D D
Specification
Pull-Out Kitchen Faucet shall include single hole mount
configuration, ceramic cartridge, braided hose connections
and standard 2.2 gpm (8.3 L/min) aerator. Faucet shall be
made from metal construction, plated in standard polished
chrome finish.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
H H
J J
L L
M M
N N
Measurements
A 1-1/8", 29 mm
B 3-3/8", 86 mm
C 11-5/16", 287 mm
D 5-1/8", 130 mm
E 4-5/16", 110 mm
Deck Thickness Ref.
F
Max. 2-1/2", 64 mm
Hole Size
G Min. Ø 1-3/8", 35 mm
Max. Ø 1-1/2", 38 mm
10", 254 mm
H
I 4-5/8", 117 mm
To Backsplash
J
4", 102 mm
9-7/8", 251 mm
K
1-3/4", 44 mm
L
8-1/4", 210 mm
M
N 9-1/8", 232 mm
