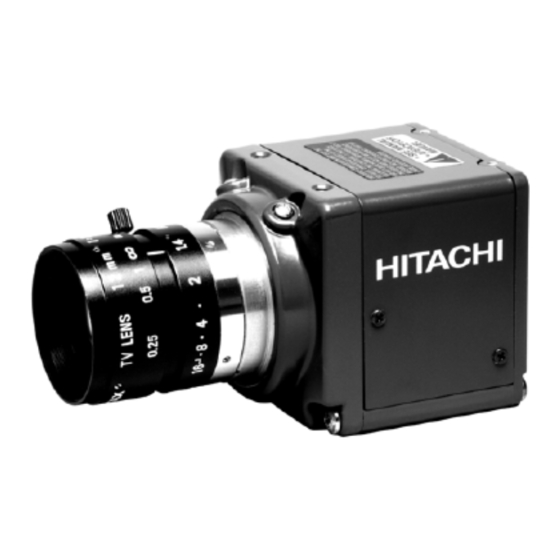

- Page 1 IEEE1394.b Progressive Scan CCD Camera KP-F140F Specifications 1 / 12...
- Page 2 1. General The KP-F140F is single CCD type camera which utilized the progressive scan CCD image sensor with square pixel for SXGA format of 1 / 2-inch. By adoption of an IEEE1394.b interface, high-speed connection of maximum of 800 Mbps can be possible.
- Page 3 Specifications 1) Imaging device : 1/2-inch progressive scan interline CCD (with on-chip microlenses) Total number of pixels : 1434(H) x 1050(V) No. of effective pixels : 1392(H) x 1040(V) Unit cell size : 4.65(H) x 4.65(V) µm (Square pixel) 2) Scanning system : Progressive scan 3) Sync system : Internal / external...
- Page 4 16) Cycle timer sync : OFF / ON 17) HD reset : OFF / ON 18) Daisy chain : Possible, Even if there is no repeater. If two is connected, the frame rate becomes half. 19) Lens mount : C mount (Flange-back adjustment) 20) Power supply : DC+8V to +30V (Via IEEE1394 cable) 21) Power consumption...
-
Page 5: Video Format
4. Video format A. Fixed format Frame Rate Format Mode Image Size Color Coding 3.75 1.875 640 x 480 YMONO8 ○ ○ ○ ○ ○ 640 x 480 YMONO16 ○ ○ ○ ○ ○ 800 x 600 YMONO 8 － ○... -
Page 6: Rear Panel
5. Rear panel and pin assignment REAR PANEL POWER/STATUS ① ② PORT 1 PORT 2 ③ ①POWER/STATUS LED ②IEEE1394b connector ③IEEE1394b connector LED status Green Yellow Signal connection to IEEE 1394.b(PORT1/PORT2) Power ON light on light off TPB- Transmission blink off blink on TPB+ SERIAL DATA... -
Page 7: Timing Chart
6. Timing chart a) Digital Out Shutter time Shutter time Shutter time (Camera setting (Camera setting value) value) Strobe delay (*1) Strobe output (High active) Strobe duration1 (*2) Data Output Strobe duration2 (*3) VD Output (Low active) (*1) 0.27～3930.51μs 0.96μs/step (*2) 0.96～3931.2μs 0.96μs/step (*3) Shutter Time –... -
Page 8: One-Trigger Mode
b) Fixed shutter mode More than T1 (*1) More than 10μs Trigger input High (High active) Port1/Port2 Port1/Port2(Trigger) input signal width Output delay Output (*2) (High active) Shutter time Shutter time (Camera setting value) Trigger delay (*3) Strobe delay (*4) Strobe output Strobe duration1 (High active) - Page 9 d) Rest control Trigger input High More than T1 (*1) More than 10μs (High active) Port1/Port2 Port1/Port2 (Trigger) input signal width Output Output delay (High active) (*2) Shutter time (integration time) Shutter time Trigger delay (*3) 93μs Readout pulse More than 10μs 1～250ms (High active) Strobe delay...
- Page 10 e) VD sync more than 1/self frame rate [sec] VD input (Low active) more than 10µs DATA 3.2 ms : 1280 x 960, Mono8, 15fps VD output (Low active) 0.34 µs 10 / 12 For More Information Please Call Aegis Electronic Group, Inc. * (888) 687-6877 Phone * aegisg2@aegiselect.com * http://www.aegis-elec.com...
- Page 11 7. External View ・ＵＮＩＴ ： ｍｍ ・ＭＡＳＳ ： ＡＰＰＲＯＸ １３０ ｇ ＰＯＷＥＲ/ＳＴＡＴＵＳ ＰＯＲＴ １ ＰＯＲＴ ２ ±１ ±１ ２－Ｍ３（ＤＥＰＴＨ：３） １１.５ ３４ ＣＯＬＯＲ：ＢＬＡＣＫ ＶＩＥＷ “Ａ” （５.７） ２－Ｍ２（ＤＥＰＴＨ：３） ±１.５ ±１.５ ４４ ５４ ±１ （６） ２２ Ａ Ｂ ＣＯＬＯＲ：ＢＬＡＣＫ ＣＯＬＯＲ：ＢＬＡＣＫ ±１ ±１ （５.７） ２－Ｍ３（ＤＥＰＴＨ：３） １１.５ ３４ ＶＩＥＷ...
- Page 12 4) Compensation for loss of business, loss or damage to software, database and other contingent losses are beyond the scope of this Warranty. 5) Hitachi Kokusai Electric Inc. is not liable for the losses caused when the equipment is used in a system, use for business trades, production process, medical fields, crime prevention applications, etc.
