Hitachi Kokusai Electric HV-F203GV Operation Manual

3ccd color camera, tentative version
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

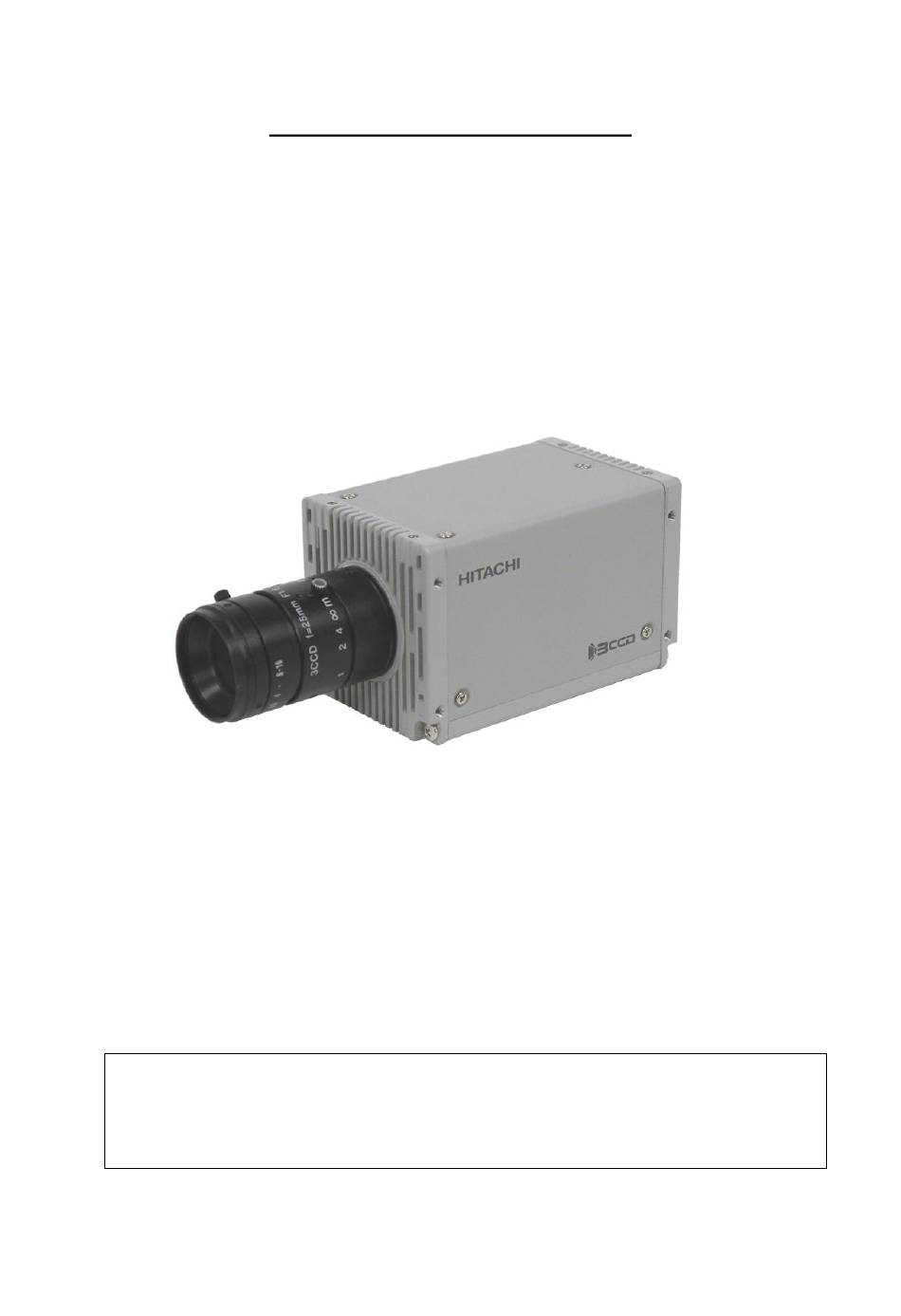

3CCD color camera
HV-F203GV
Operation Manual
(Tentative Version)
Thank you for purchase this fine Hitachi Kokusai Electric CCD camera.
Before using the camera, please read this operation manual carefully.
There is a possibility that the revised edition is exhibited on web.
Please confirm by web shown in an Installation Guide.
Hitachi Kokusai Electric Inc.
RoHS Compliant
These products comply with the requirement of the RoHS (Restriction of the
use of Certain Hazardous Substances in Electrical and electronic Equipment)
Directive 2002/95/EC.
Version in Sep, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV-F203GV and is the answer not in the manual?

Questions and answers

Related Manuals for Hitachi Kokusai Electric HV-F203GV

Summary of Contents for Hitachi Kokusai Electric HV-F203GV

  • Page 1 HV-F203GV Operation Manual (Tentative Version) Thank you for purchase this fine Hitachi Kokusai Electric CCD camera. Before using the camera, please read this operation manual carefully. There is a possibility that the revised edition is exhibited on web. Please confirm by web shown in an Installation Guide.
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Heed Warnings All warnings on the product and the operating instructions should be adhered to. 4.
  • Page 3 16. Object and Liquid Entry Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 17.
  • Page 4 WICHTIGE SICHERHEITS ANWEISUNGEN 1. Alle Anweisungen lesen Vor Betrieb des Erzeugnisses sollten alle Sicherheits-und Bedienungsanleitungen gelesen werden. 2. Die Anweisungen aufbewahren Die Sicherheits-und Bedienungsanleitungen sollten fünftigen Bezug aufbewahrt werden. 3. Warnungen beachten Die Warnungen auf dem Erzeugnis und in den Bedienungsanleitungen solten beachtet werden. 4.
  • Page 5 16. Eindringen von Fremdkörpern und Flüssigkeit Niemals Objekte irgendwelcher Art durch die Öffnungen in das Gerät schieben, da diese unter hoher Spannung stehende Teile berühren oder kurzschließen können, wodurch es zu Feuer oder elektrischem Schlag kommen kann. Niemals Flüssigkeiten irgendwelcher Art auf das Erzeugnis verschütten. 17.
  • Page 6 MISES EN GARDE IMPORTANTES 1. Lire les instructions Lire toutes les instructions de sécurité et de fonctionnement avant de faire fonctionner l’appareil. 2. Conserver ces instructions Conserver les instructions de sécurité et de fonctionnement á des fins de référence ultérieure. 3.
  • Page 7 16. Pénétration d’objets et de liquides Ne jamais enfoncer d’objets d’aucune sorte dans les ouvertures de l’appareil car ils pourraient toucher des points de tension dangereuse ou court-circuiter des piéces, ce qui pourrait provoquer un feu ou un choc électrique. Ne jamais renverser de liquide d’aucune sorte sur l’appareil.
  • Page 8 IMPORTANT NOTICE For Canada This product does not exceed the class A/class These products have been tested and found to B limits for radio noise emissions from digital comply with the limits for a Class A digital device, apparatus as set out in the radio interference pursuant to Part 15 of the FCC Rules.
  • Page 9 China RoHS The following statement is related to the regulation on “ Measures for the Administration of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “. The table shows contained Hazardous Substances in this camera. 说明书（环境方面：补充资料）...
  • Page 10 Phenomena inherent to CCD imaging device The following phenomena are inherent to a charge coupled device imaging element and do not indicate malfunction. 1) Smear and blooming Vertical bands are visible when a strong light enters the scene. Adjust the camera aiming direction carefully to avoid strong direct or reflected light.
  • Page 11 Operating considerations Notes to users 1. Important safety notes ・ Please supply the direct current 12V of the camera input power supply within the range of 11 to 13V ・ Time will be needed for about four seconds by the time the camera works normally after turning on the power supply. ・...

  • Page 12: Table Of Contents

    Table of Contents Overview ..................................2 Standard composition ..............................2 Features..................................3 Section name and functions ............................4 Camera mounting (Attention :Hot!) ..........................4 Lens ....................................4 Connector & LED................................5 Representative example of video output scheme ......................6 System example ................................7 Functions and operations ............................

  • Page 13: Overview

    Overview HV-F203GV is high precision 3CCD progressive scan color camera, which has a C mount prism, 1/1.8 inch 2M pixels square CCD and Gigabit Ethernet interface. The camera can be powered from the LAN cable by PoE (Power over Ethernet) 2.

  • Page 14: Features

    Features ・High resolution and color fidelity The 1/1.8-inch 2.0 million pixels square lattices progressive scan CCD and dichroic prism for RGB color achieves a high resolution picture and good color reproduction. ・Small and lightweight Although it is 3CCD Camera, it is compact and lightweight. ( 55(W) x 55(H) x 89(D) mm / approx. 370g. ) ・Gigabit Ethernet By adoption of Gigabit Ethernet interface, high-speed connection of maximum of 1 Gbps can be possible.

  • Page 15: Section Name And Functions

    Section name and functions Camera mounting screw holes LED1 Indicates link speed. Lens mount LED2 （C mount） Indicate Link status. Ethernet connector Camera mounting Use for digital video output and screw holes camera control signal. DC IN/SYNC connector Camera mounting Use for DC+12V power and external screw holes trigger signal.

  • Page 16: Connector & Led

    7. Connector & LED (1) Ethernet connector Signal PIN NO. TRP1+ TRP1- TRP2+ TRP3+ TRP3- TRP2- TRP4+ А В TRP4- N.C. N.C. (2) DCIN/SYNC connector PIN NO. Signal PIN NO. Signal GND (+12V) TRIG(H) IN +12V N.C. N.C. N.C. FLASH /VD OUT N.C.

  • Page 17: Representative Example Of Video Output Scheme

    8. Representative example of video output scheme Horizontal Vertical Word length of data Frame rate Approved standards resolution resolution GVSP_PIX_RGB8_PACKED, 24bit(R:8bit, G:8bit, B:8bit) 1600 (R,G,B) 1200 (R,G,B) Approx 18.75FPS GVSP_PIX_BGR8_PACKED 32bit(R:10bit, G:10bit, B:10bit) 1600 (R,G,B) 1200 (R,G,B) Approx 14FPS GVSP_PIX_BGR10V1_PACKED 16bit(Y:8bit, U:8bit, V:8bit) 1600 (Y) 1200 (Y)

  • Page 18: System Example

    9. System example HV-F203GV connect to PC sing LAN cable. +12V Camera cable HITACH 3CCD JU-F30 LAN cable Camera (CAT5E/CAT6) LAN cable HITACH (CAT5E/CAT6) PC with NIC for Gigabit 3CCD PoE hub Camera (*) Note that following point when connecting the camera (1) Please connect the camera to device for Gigabit Ethernet IEEE802.3ab(1000BASE-T)
  • Page 19 (8) In the CE Marking region, use following specified cables and clamp filters. Camera cable (C-201KSS) HITACH 3CCD LAN cable Camera (C5E(S-HFR)(K)-HSL-1: Oki) Clamp filter (ZCAT 2035-0930A: TDK) Ferrite core Plastic case Camera cable / LAN cable Approx. 100 to 150 mm (Same applies to LAN cable)

  • Page 20: Functions And Operations

    Functions and operations Various mode setup and adjustment of HV-F203GV are performed by the remote control via Gigabit Ethernet. Operation and adjustment way of function utilized are described below. "Standard" means the function based on GenICam Standard Feature Naming Convention (SFNC) and "Custom" means the original function.
  • Page 21 ・Device User ID ： User programmable ID Feature name ： DeviceUserID (String / Standard) Address ： 000000E8 h Values(Factory setting Blank)： Any null-terminated string (16 Byte) ・Device Family Name ： Family name of camera Feature name ： DeviceFamilyName (String / Standard) Address ：...
  • Page 22 ・Device Link Selector ： Select the Device Link Channel Feature name ： DeviceLinkSelector (Integer / Standard) Address ： 00000600 h Values (Read only) ： 1 ・Device Link Speed ： Link speed for data communication Feature name ： DeviceLinkSpeed (Integer / Standard) Address ：...
  • Page 23 ・Device Stream Channel Endianness ： Endianness of stream channel Feature name ： DeviceStreamChannelEndianness (Enumeration / Standard) Address ： 2-bit of 00000D04 h Values (Read only) ： 0 "Little" Little Endian...

  • Page 24: Imageformatcontrol Category

    10.2. ImageFormatControl Category ・Sensor Width ： Valid horizontal pixel number of image sensor Feature name ： SensorWidth (Integer / Standard) Address ： A002F000 h Values (Read only) ： 1600 ・Sensor Height ： Valid vertical pixel number of image sensor Feature name ：...
  • Page 25 Values ： 0 "Sensor" ・Binning Vertical ： Vertical binning setting Feature name ： BinningVertical (Enumeration / Standard) Address ： A0020010 h Values (Factory setting 1) ： 1 "OFF" Disable Binning. ： 2 "ON" Enable Binning. ・Test Pattern ： display test pattern Feature name ：...
  • Page 26 ・Partial Scan Mode ： Partial scan mode enable/disable Feature name ： PartialScanMode (Boolean / Custom) Address ： A0FF0100 h Values (Factory setting 0) ： 0 FALSE Disable Partial Scan. ： 1 TRUE Enable Partial Scan. ・Partial Scan Offset Y ： Offset of valid area of partial scan Feature name ：...

  • Page 27: Acquisitioncontrol Category

    10.3. AcquisitionControl Category ・Acquisition Mode ： AcquisitionMode setting Feature name ： AcquisitionMode (Enumeration / Standard) Address ： A0030000 h Values (Factory setting 1) ： 1 "Continuous" Continuous image capture mode 2 "Multi Frame" Specified number of image capture mode 3 "Single Frame" Single frame capture mode ・Acquisition Start ：...
  • Page 28 ・Trigger Mode (related to Trigger Selector) ： Select the mode selected at Trigger Selector Feature name ： TriggerMode (Enumeration / Standard） Address ： A0030024 h Values (Factory setting 0) ： 0 "OFF" Set trigger mode selected at Trigger Selector to OFF. 1 "ON"...
  • Page 29 ・Exposure Time ： Setting of the Variable shutter Feature name ： ExposureTime (Float / Standard) Address ： A0030044 h Values (Factory setting 53333.3) ： 10 to 10,000,000 [us] Set the shutter speed in the range from 1/100,000 to 10 second in ・Exposure Auto ：...

  • Page 30: Digitaliocontrol Category

    10.4. DigitalIOControl Category ・Line Selector ： Select the line Feature name ： LineSelector (Enumeration / Standard) Address ： A0040000 h Values ： 0 "Line1 (7pin)" Setting of 7 pin of DCIN/SYNC connector. 1 "Line2 (10pin)" Setting of 10 pin of DCIN/SYNC connector. ・Line Inverter (related to Line Selector) ：...

  • Page 31: Counterandtimercontrol Category

    10.5. CounterAndTimerControl Category ・Timer Selector ： Select the timer to adjust strobe Feature name ： TimerSelector (Enumeration / Standard) Address ： A0050000 h Values ： 0 "Timer 1" ・Timer Duration (related to Timer Selector) ： Set the duration of timer Feature name ：...

  • Page 32: Analogcontrol Category

    10.6. AnalogControl Category ・Gain Selector ： Specify the signal used for gain adjustment Feature name ： GainSelector (Enumeration / Standard) Address ： A0070000 h Values ： 0 "All" ・Gain ： Setting of master gain Feature name ： Gain (Float/ Standard) Address ：...
  • Page 33 ・Paint Black (related to Paint Black Selector) ： Adjust level of color selected at Paint Black Selector Feature name ： PaintBlack (Integer / Custom) Address ： A0FF0034 h Values (Factory setting 0) ： 0 to 127 Adjust the color level of the color selected at Paint Black Selector in 128 steps. ・Balance White Auto ：...
  • Page 34 ・Knee Point ： Adjust knee point Feature name ： KneePoint (Float / Custom） Address ： A0F70044 h Values (Factory setting 75)： 75 to 100 [%] Setting value toward 100% side increase start level of knee and 75% side decrease start level of knee. ・Knee Slope ：...
  • Page 35 ・Shading Correction : Correct unevenness on the surface chromatically and luminously. Feature name ： ShadingCorrection (Boolean / Custom） Address ： A0F700A0 h Values (Factory setting 0) ： 0 FALSE Disable correction of shading. 1 TRUE Enable correction of shading ・Shading Detect ： Detect unevenness on the surface Feature name ：...

  • Page 36: Lutcontrol Category

    10.7. LUTControl Category ・LUT Enable ： Setting of look up table Feature name ： LUTEnable (Boolean / Standard(*)） Address ： A0080004 h Values (Factory setting 0) ： 0 FALSE Disable look-up-table feature. 1 TRUE Enable look-up-table feature. (*) With this camera, a setup of TRUE/FALSE is applied to a total color regardless of the state of LUT Selector. ・LUT Selector ：...

  • Page 37: Autolevelcontrol Category

    10.8. AutoLevelControl Category ・ALC Adjust ： Setting value of video level when AGC or AES is ON Feature name ： ALCAdjust (Float / Custom） Address ： A0070080 h Values (Factory setting 1) ： 0 to 4 Setting value toward 0 side decrease convergence level and 4 side increase convergence level.

  • Page 38: Pixelcorrection Category

    10.9. PixelCorrection Category ・White Spot Correction Mode ： White spot correct mode enable/disable Feature name ： WhiteSpotCorrectMode (Enumeration / Custom） Address ： A0FF00A0 h Values ： 0 "OFF" Disable correction of white spot noise. 1 "ON" Enable correction for stored white spots. ・White Spot Correction Selector ：...

  • Page 39: Digitalnoisereduction Category

    10.10. DigitalNoiseReduction Category ・Digital Noise Reduction Mode ： Noise reduction mode enable/disable Feature name ： DigitalNoiseReductionMode (Enumeration / Custom） Address ： A0FF0180 h Values (Factory setting 0) ： 0 "OFF" Disable digital noise reduction. 1 "ON" Enable digital noise reduction. 10.11.

  • Page 40: Gigevision Category

    10.13. GigEVision Category ・Gev MAC Address ： MAC address of camera Feature name ： GevMACAddress (Integer[64bit] / Standard) Address ： 00000008 h /0000000C h Values (Read only) ： XXXXXXXXXXXX h * different according to the camera ・Gev Supported Option Selector ： Information to check whether this camera supports the specified option Feature name ：...
  • Page 41 ・Gev First URL ： Feature name ： GevFirstURL (String / Standard) Address ： 00000200 h Values (Read only) ： Specify the first URL ・Gev Second URL ： Feature name ： GevSecondURL (String / Standard) Address ： 00000400 h Values (Read only) ：...
  • Page 42 ・Gev SCPS Packet Size ： Feature name ： GevSCPSPacketSize (Integer / Standard) Address ： 16-31bit of 00000D04 h Values (Factory setting 576) ： 576 ～ 8192 Setting of data amount (BYTE) of 1 packet for transmission of image data ・Gev SCPD ： Packet delay Feature name ：...

  • Page 43: Usersetcontrol Category

    10.14. UserSetControl Category ・User Set Selector ： Selection of saved or loaded channel Feature name ： UserSetSelector (Enumeration / Standard) Address ： A00A0000 h Values ： 0 "Default" Factory setting 1 "User Set 1" Channel 1 2 "User Set 2" Channel 2 3 "User Set 3"...

  • Page 44: Trigger Mode

    Trigger mode Trigger mode settings of HV-F203GV are following procedure. 1. Fixed shutter mode When external trigger signal is POSITIVE (TriggerActivation: "RisingEdge"), after the trigger signal rise, exposure is start The exposure time is set by the camera electronic shutter speed.
  • Page 45 4. Others Operation of the camera by the combination of each setting value is shown a table below. SETTING Exposure Exposure Exposure TriggerMode TriggerSource Mode Time Auto [TriggerSelector] [TriggerSelector] OPERATION Don’t SHUTTER:OFF Don’t Care Care 10 us Don’t MANUAL SHUTTER Timed to 10 s Care...

  • Page 46: Usetsetsave And Data Save Timing

    UsetSetSave and data save timing Each parameter of the camera is stored in UserSet 1 to 4 or common area. Parameters saved in UserSet 1 to 4 are saved in UserSet 1 to 4 Selected by "UserSetSelector" by executing "UsetSetSave". Common parameters are saved when value is changed or saved when "UsetSetSave"...
  • Page 47 1-42 AnalogControl KneeSlope 1-43 AnalogControl Sharpness 1-44 AnalogControl MaskingMode 1-45 AnalogControl MaskingSaturation 1-46 AnalogControl MaskingHue 1-47 AnalogControl ShadingCorrection 1-48 LUTControl LUTEnable 1-49 LUTControl LUTValue 1-50 AutoLevelControl ALCAdjust 1-51 AutoLevelControl AlcGateWidth 1-52 AutoLevelControl AlcGateHeight 1-53 AutoLevelControl AlcGateOffsetX 1-54 AutoLevelControl AlcGateOffsetY 1-55 DigitalNoiseReduction DigitalNoiseReductionMode Table B .

  • Page 48: Digital Output

    Digital output The method of setting of digital output is explained. 1. Flash out (strobe pulse) This camera can output flash pulse when trigger mode or electric shutter mode, (A) When output flash pulse at the same time as exposure time and without delay. (1) LineSelector →...

  • Page 49: Trigger Operation And Timing Chart

    Trigger operation and timing chart 14.1. TriggerMode and ExposureMode are set to OFF 1/Frame rate Shutter time Shutter width (*1) Data output FVAL ① (INTERNAL) Strobe delay (*2) Strobe output （High active） Strobe width 1 (*3) VD output (Low active) Strobe width 2 1H = 42.667μs (*4)
  • Page 50 The relationship between maximum frame rate and vertical lines for partial scan mode and partial scan and binning mode are shown in following graph. partial_binning (SensorArea) partial_binning (OutputLine) partial (SensorArea &OutputLine) 100 200 300 400 500 600 700 800 900 1000 1100 1200 Vertical Line (SensorArea &...

  • Page 51: Triggermode Is Set To Off And Exposuremode Is Set To Timed Or Presettimed Mode

    14.2. TriggerMode is set to OFF and ExposureMode is set to Timed or PresetTimed mode 1/Frame rate Shutter time Shutter width (*1) Data output FVAL (INTERNAL) ① Strobe delay (*2) Strobe output （High active） Strobe width 1 (*3) VD output (Low active) Strobe width 2 (*4)
  • Page 52 (Note 14.2.1) (a) When AcquisitionControl.AcquisitionFrameRate is smaller than 1/Shutter width and AcquisitionControl.AcquisitionFrameRate is smaller than the frame rate of partial scan, Frame rate is represented by following equation. Frame rate = AcquisitionControl.AcquisitionFrameRate (b) AcquisitionControl.AcquisitionFrameRate is smaller than 1/Shutter width and AcquisitionControl.AcquisitionFrameRate is larger than the frame rate of partial scan, Frame rate is represented by following equation.
  • Page 53 (Note 14.2.2) Set the Strobe delay in the range from 10.0u to 2.0 seconds in us. (Note 14.2.3) The setting value must be smaller than Frame rate. Otherwise, pulse signal could not be outputted. (Note 14.2.4) Set the Strobe delay in the range from 0.0 to 2.0 seconds in us. (Note 14.2.5) Set the Strobe delay in the range from 1.0us to 2.0 seconds in us.

  • Page 54: Triggermode Is Set To On And Exposuremode Is Set To Timed Or Presettimed

    14.3. TriggerMode is set to ON and ExposureMode is set to Timed or PresetTimed When external trigger signal is POSITIVE (high active), after the trigger signal rise, exposure is start. The exposure time is set by the camera electronic shutter speed. The video output is obtained immediately after the end of fixed exposure.
  • Page 55 (Note 14.3.5) ⌈ ⌉ is Ceiling function PartialScanMode OFF PartialScanMode ON (Note 3.3.5) BinningVertical OFF BinningVertical ON BinningVertical OFF BinningVertical ON (2+⌈(8+OFFSET)/12⌉ (2+⌈(12+OFFSET)/12⌉ +29+HEIGHT +⌈(38+HEIGHT/2⌉ ① 1250H 625H +⌈(1207-HEIGHT +⌈(1202-HEIGHT - OFFSET)/12⌉+1) H -OFFSET)/12⌉+1) H ② (2+⌈(12+OFFSET)/12⌉) H (2+⌈(8+OFFSET)/12⌉) H ③...

  • Page 56: Triggermode Is Set To On And Exposuremode Is Set To Triggerwidth

    14.4. TriggerMode is set to ON and ExposureMode is set to TriggerWidth When external trigger signal is POSITIVE (high active), after the trigger signal rise, exposure is start. At the trigger signal falling edge, the internal VD signal is reset and the video data are transmitted. The trigger signal width equals the exposure time.
  • Page 57 (Note 14.4.4) ⌈ ⌉ is Ceiling function PartialScanMode OFF PartialScanMode ON (Note 14.4.4) BinningVertical OFF BinningVertical ON BinningVertical OFF BinningVertical ON (2+⌈(8+OFFSET)/12⌉ (2+⌈(12+OFFSET)/12⌉ +29+HEIGHT +⌈(38+HEIGHT/2⌉ ① 1250H 625H +⌈(1207-HEIGHT +⌈(1202-HEIGHT -OFFSET)/12⌉+1) H -OFFSET)/12⌉+1) H ② (2+⌈(12+OFFSET)/12⌉) H (2+⌈(8+OFFSET)/12⌉) H ③ 1200H 600H (29+HEIGHT) H...

  • Page 58: Input / Output Signal

    The level of VD/Flash pulse signal output from HV-F203GV is as follows. 5Vp-p Delay of photocoupler The difference of the delay time for trigger signal of photocoupler implemented in HV-F203GV depends on input voltage as shown following table. Voltage of...

  • Page 59: Spectral Response

    Spectral response HV-F203SCL/GV Spectral sensitivity characteristics 1.000 0.900 0.800 0.700 0.600 0.500 0.400 0.300 0.200 0.100 0.000 Wave length [nm]...

  • Page 60: Specifications

    Specifications Specifications of HV-F203GV are showing. Optical system 1/1.8-inch F1.9 prism with IR cut filter Imaging device 1/1,8-inch interline CCD Total pixels 1688 (H) x 1248 (V) Effective pixels 1636 (H) x 1220 (V) Active pixels 1600 (H) x 1200 (V) Pixel pitch 4.4μm (H) x 4.4μm (V)

  • Page 61: Dimensions

    Dimensions...
  • Page 62 São Paulo, 01419-001, SP –Brazil Phone: +55(11)3541-3244, Fax: +55(11)3541-2425 URL: http://www.hitachi-linear.com.br/ Hitachi Kokusai Electric Turkey Elektronik Ürünleri Sanayi ve Ticaret A.Ş. Hitachi Kokusai Electric Turkey Yayıncılık Sistemleri A.Ş. Office : Istanbul Endustri ve Ticaret Serbest Bolgesi Akif Kopuz Cad. No.3,...
