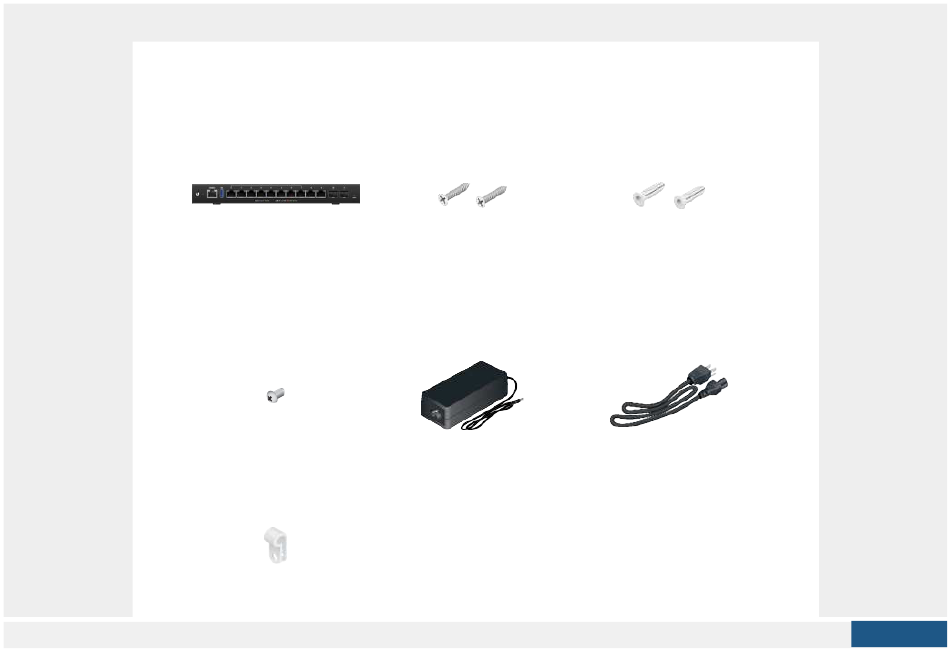

Package Contents

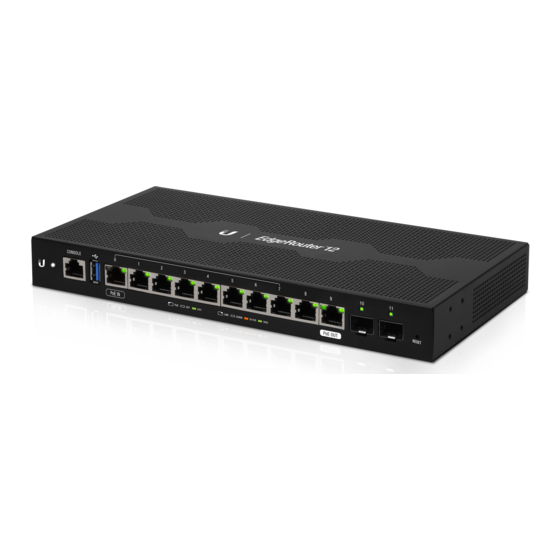

EdgeRouter ER-12P
Wall Mount Screws (Qty. 2)
Wall Mount Anchors (Qty. 2)
Ground Screw
Power Adapter (24V, 2.5A)
Power Cord
Create PDF in your applications with the Pdfcrowd
HTML to PDF API
PDFCROWD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeRouter ER-12P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ubiquiti EdgeRouter ER-12P

  • Page 1 Package Contents EdgeRouter ER-12P Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2) Ground Screw Power Adapter (24V, 2.5A) Power Cord Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 2: Installation Requirements

    We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the EdgeRouter itself should be housed inside a protective enclosure.
  • Page 3 System LED Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti® Network White Management System (UNMS™). See “UNMS Management”. Blue Ready for use, connected to UNMS. Steady Blue with Ready for use, unable to connect to UNMS, check Occasional Flashing connection to UNMS server.
  • Page 4 Quickly Flashing Blue Used to locate a device in UNMS. Alternating Firmware upgrade in progress. Blue/White RJ45 PoE LED (Ports 0 - 9) No PoE Green 24V Passive PoE Output RJ45 Speed/Link/Activity LED (Ports 0 - 9) No Link Amber Link Established at 10/100 Mbps Amber Flashing Link Activity at 10/100 Mbps...
  • Page 5: Hardware Installation

    Console RJ45 serial console port for Command Line Interface (CLI) management. Reserved for future use. RJ45 (Ports 0 - 9) All RJ45 ports can be used for routing. They support 10/100/1000 Mbps Ethernet connections and 24V Passive PoE output. Ports 0 - 7 can be configured for switching functions using the EdgeOS®...
  • Page 6: Wall Mounting

    Wall Mounting Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 9 Grounding the EdgeRouter (Recommended) The Power Adapter grounds the device; however, you can add optional ESD grounding for enhanced ESD protection (ground wire not included). Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 10 Optional Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 11: Connecting Power

    Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 12 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 13 Using SFP Ports Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 14 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 15 For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1.
  • Page 16 3. Launch your web browser. Enter the appropriate IP address in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 17: Static Ip Address

    The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”. Static IP Address 1.
  • Page 18 3. Launch your web browser. Type https://192.168.1.1 in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 19 The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”. UNMS Management You can manage your device using UNMS, which lets you configure, monitor, upgrade, and back up your devices using a single application.
  • Page 20 passive PoE and the supplied voltage. 1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to configure. 2. The Interface Configuration window will appear. Select the appropriate PoE setting, and click Save. 3. The Ethernet port’s PoE LED will confirm the PoE setting. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 21: Specifications

    For detailed instructions on configuring other features, please refer to the EdgeOS User Guide. The User Guide is available at ui.com/download/edgemax Specifications ER-12P Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") Weight 700 g (1.54 lb) Max.
  • Page 22: Safety Notices

    ER-12P System Memory 1 GB DDR3 RAM On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Interfaces Management (1) RJ45 Serial Port (10) Ethernet Ports (Default Port 0) Networking (10) 10/100/1000 RJ45 Ports (2) 1 Gbps SFP Ports Operating Temperature...
  • Page 23: Electrical Safety Information

    WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 24: Limited Warranty

    Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 25: Weee Compliance Statement

    environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
