Summary of Contents for Ubiquiti EdgeRouter 4

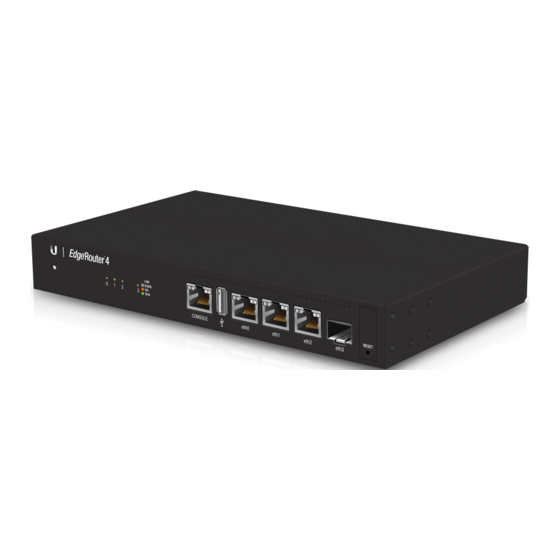

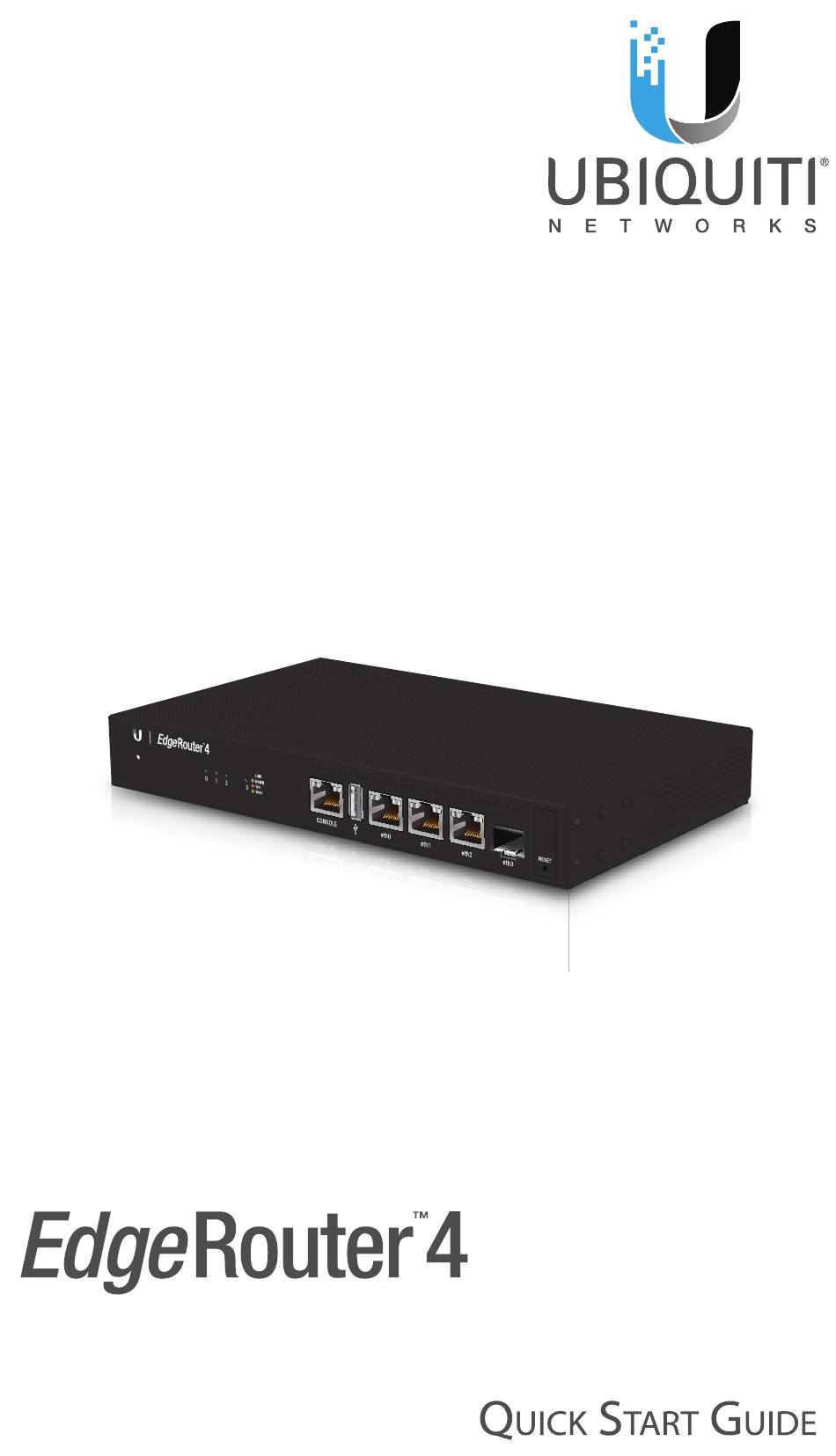

- Page 1 4-Port Gigabit Router with 1 SFP Port Model: ER-4...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeRouter . This Quick Start Guide is designed to guide you ™ through installation and also includes warranty terms. Package Contents EdgeRouter ER-4 Mounting Bracket Bracket Screws Mounting Cage Nuts (Qty. 8) Screws (Qty. -
Page 3: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter to rain or moisture. -
Page 4: Hardware Overview
Hardware Overview Front Panel Ports RJ45 (eth0-eth2) SFP (eth3) Console Interface Description RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. (If your computer does not have a DB9 port, then you will also need a DB9 adapter.) Then configure the following settings as... -
Page 5: Front Panel Button
Front Panel Button Reset Button Description There are two methods to reset the EdgeRouter to factory defaults: • Runtime reset (recommended) The EdgeRouter should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the LED for port eth3 starts flashing and then becomes solidly lit. - Page 6 Front Panel LEDs RJ45: Speed/Link/Act System SFP: Speed/Link/Act State Status Blue Bootup in Progress White Ready for Use No Link Link Established at Amber 10/100 Mbps Link Activity at Speed/ Amber Flashing 10/100 Mbps Link/Act Link Established at Green 1000 Mbps Link Activity at Green Flashing 1000 Mbps No Link...
-
Page 7: Hardware Installation
Back Panel Power Grounding Point Ventilation Holes Note: There are additional ventilation holes on the sides of the EdgeRouter. Hardware Installation WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. - Page 8 2. Attach the Mounting Bracket and EdgeRouter to the rack using the four Mounting Screws. (If the rack has square slots, use the Cage Nuts with the Mounting Screws.)
-
Page 9: Wall Mounting
Wall Mounting To mount the EdgeRouter on a wall, you will need a drill, a 6 mm drill bit, and a Phillips screwdriver. 1. Use a 6 mm drill bit to drill two holes 100 mm apart. 2. Insert the Wall Mount Anchors into the holes. Use a Phillips screwdriver to secure a Wall Mount Screw to each anchor. -
Page 10: Connecting Power
Grounding the EdgeRouter (Recommended) The EdgeRouter is grounded through the Power Cord; however, you can add optional ESD grounding for enhanced ESD protection. 1. Attach the Ground Screw to secure a ground wire (not included) to the Grounding Point. 2. Secure the other end of the ground wire to a grounding block. Connecting Power 1. - Page 11 Using SFP Ports To use an SFP port: 1. Remove the protective plug covering the SFP port. 2. Plug a fiber SFP module into the SFP port. 3. Connect a fiber optic cable to the fiber SFP module. Then connect the other end of the cable to another fiber device. For information about compatible fiber SFP modules, visit: community.ubnt.com/edgemax...
- Page 12 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
-
Page 13: Specifications
Specifications ER-4 Dimensions 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22") Weight 0.8 kg (1.76 lb) Max. Power Consumption Power Method Universal AC Power Supply Internal AC Power Adapter Supported Voltage 100-240V 50/60Hz Universal AC Adapter Range Button Reset LEDs... -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 15: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 16 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 17: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 18 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 19: Industry Canada
Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian CAN ICES-003. CAN ICES-3(A)/NMB-3(A) Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. - Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è... -
Page 23: Online Resources
[Slovak] a ďalšími relevantnými ustanoveniami smernice 2014/30/EÚ, 2014/35/EÚ. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de las Directivas 2014/30/UE, 2014/35/UE. - Page 24 . u b n t . c o m ©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeRouter, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc.
