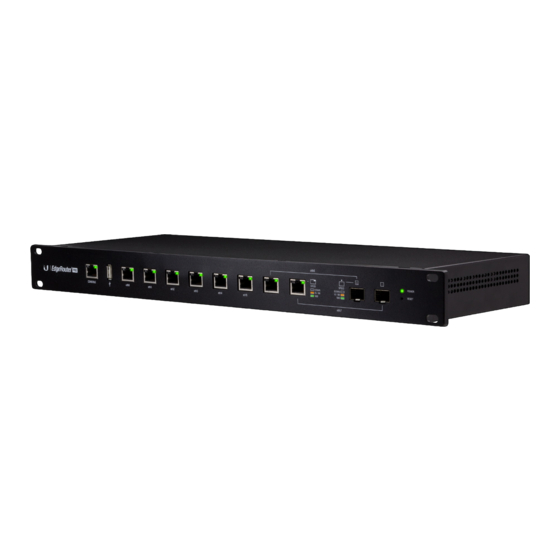

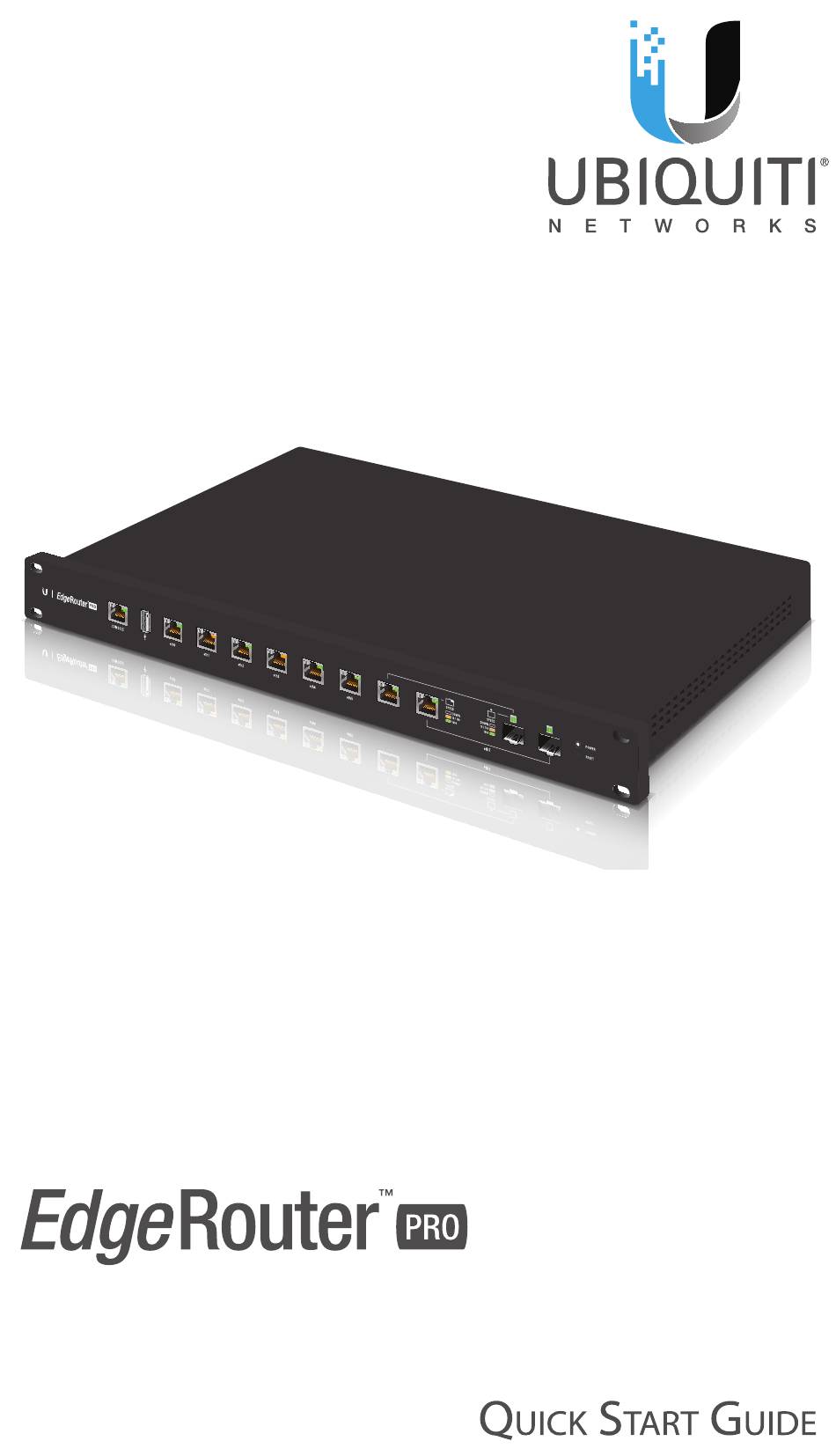

- Page 1 8-Port Router with 2 Combination SFP/RJ45 Ports Model: ERPro-8...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeRouter PRO. This Quick Start Guide is designed to guide ™ you through installation and also includes warranty terms. Package Contents EdgeRouter PRO Mounting Screws Cage Nuts Power Cord (Qty. 4) (Qty. 4) TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). -
Page 3: Installation Requirements
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter to rain or moisture. -
Page 4: Hardware Overview
Hardware Overview Front Panel Ports SFP (eth6-eth7) Console RJ45 (eth0-eth7) Interface Description RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. (If your computer does not have a DB9 port, then you will also need a DB9 adapter.) Then Console... -
Page 5: Front Panel Button
LED on RJ45 port eth7 starts flashing and then becomes solidly lit. After a few seconds, the LED will Reset turn off, and the EdgeRouter PRO will automatically reboot. • Power-on reset Disconnect the Power Cord from the EdgeRouter PRO. Press and hold the Reset button while connecting the Power Cord to the EdgeRouter PRO. - Page 6 Link Established at Green 1000 Mbps Link Activity at Green Flashing 1000 Mbps No Link Link Established at Amber 10/100 Mbps Link Activity at Speed/ Amber Flashing 10/100 Mbps Link/Act Link Established at Green 1000 Mbps Link Activity at Green Flashing 1000 Mbps EdgeRouter PRO is White powered on.
-
Page 7: Hardware Installation
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW. 1. Attach the EdgeRouter PRO to the rack using the four Mounting Screws. (If the rack has square slots, then use the Cage Nuts with the Mounting Screws.) - Page 8 2. Connect the Power Cord to the Power port. 3. Connect the other end of the Power Cord to a power outlet.
- Page 9 Using SFP Ports To use an SFP port: 1. Remove the protective plug covering the SFP port. 2. Plug a fiber SFP module into the SFP port. Note: The corresponding RJ45 port will be deactivated. 3. Connect a fiber optic cable to the fiber SFP module. Then connect the other end of the cable to another fiber device.
- Page 10 Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1. To configure the EdgeRouter, proceed to the appropriate section: DHCP or “Static IP Address”.
- Page 11 The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at www.ubnt.com/download/edgemax You can also manage your device using the Ubiquiti Network Management System. UNMS lets you configure, monitor, ™...
- Page 12 Static IP Address 1. Connect an Ethernet cable from the Ethernet port on your computer to the port labeled eth0 on the EdgeRouter PRO. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
-
Page 13: Specifications
Specifications EdgeRouter PRO Dimensions 484 x 164 x 44 mm (19.06 x 6.46 x 1.73") Weight 2.3 kg (5.07 lb) Max. Power Consumption 40 W Power Method 110 - 240VAC Power Supply Internal AC/DC Power Adapter, 60 W (24V, 2.5A) -
Page 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 15: Limited Warranty
Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 16: Rohs/Weee Compliance Statement
CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. - Page 17 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 18: Declaration Of Conformity
Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.ubnt.com/compliance Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ERPro-8 tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance... -
Page 19: Online Resources
2014/35/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.ubnt.com/compliance Latviešu valoda [Latvian] Ar šo, UBIQUITI NETWORKS, deklarē, ka ERPro-8 ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvās 2014/30/ES, 2014/35/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: www.ubnt.com/compliance Lietuvių... - Page 20 New York, NY 10017 ©2013-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
