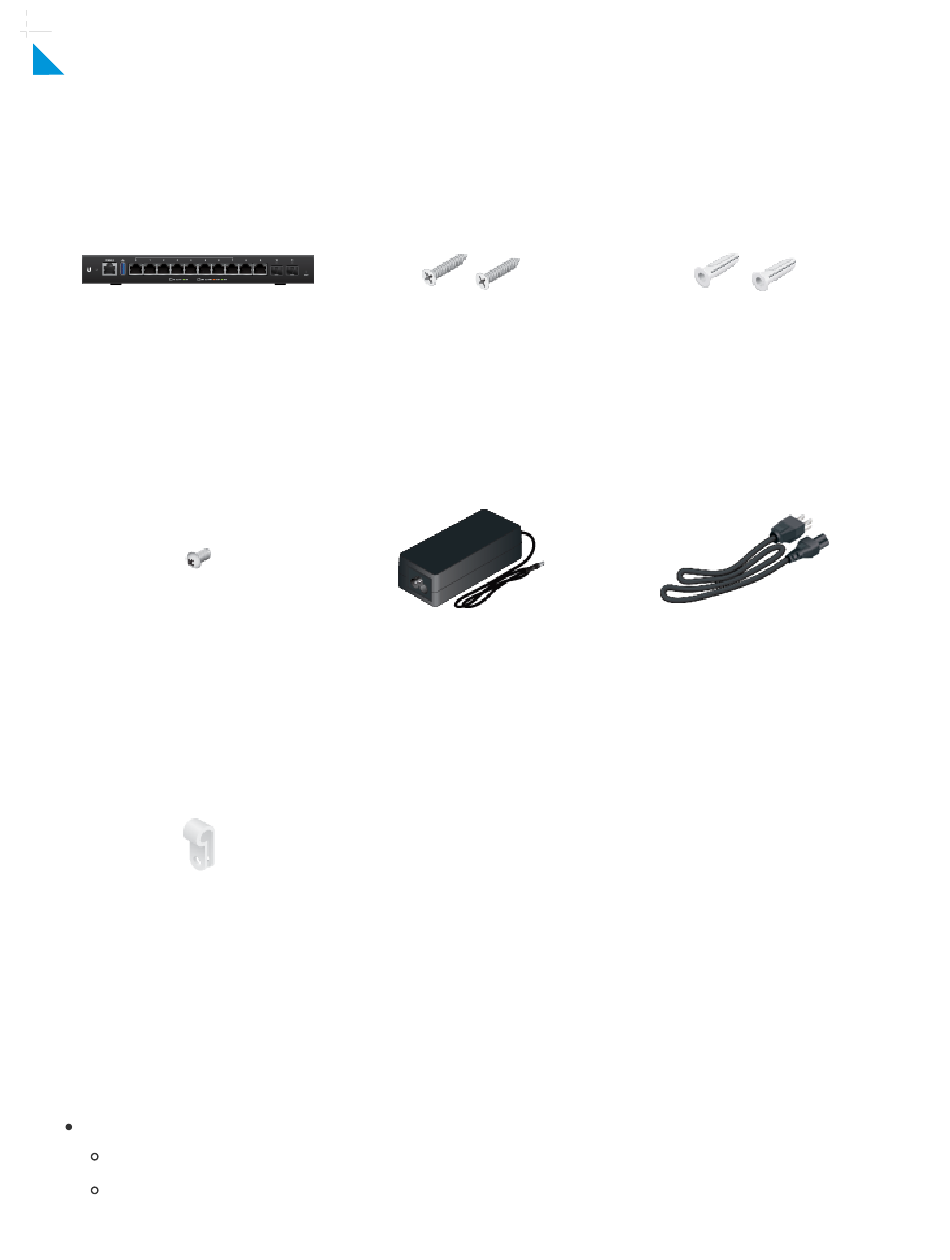

Package Contents
Table of Contents
EdgeRouter ER-12P
Ground Screw
Cable Clip
Installation Requirements
Wall mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
ER-12P Quick Start Guide
×
Wall Mount Screws (Qty. 2)
Power Adapter (24V, 2.5A)
Wall Mount Anchors (Qty. 2)
Power Cord

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeRouter ER-12P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti EdgeRouter ER-12P

Summary of Contents for Ubiquiti EdgeRouter ER-12P

  • Page 1 ER-12P Quick Start Guide × Click for Package Contents Table of Contents EdgeRouter ER-12P Wall Mount Screws (Qty. 2) Wall Mount Anchors (Qty. 2) Ground Screw Power Adapter (24V, 2.5A) Power Cord Cable Clip Installation Requirements Wall mounting (optional) Drill with 6 mm drill bit...

  • Page 2: Hardware Overview

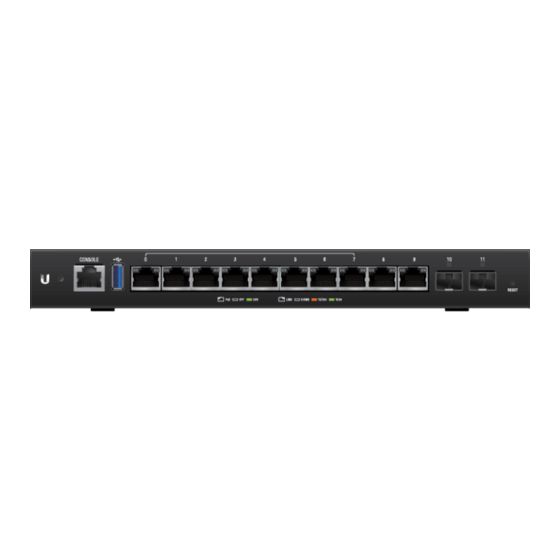

    Although the cabling can be located outdoors, the EdgeRouter itself should be housed inside a protective enclosure. Hardware Overview System LED Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti® Network White Management System (UNMS™). See “UNMS Management”. Blue Ready for use, connected to UNMS.
  • Page 3 ER-12P Quick Start Guide Quickly Flashing Blue Used to locate a device in UNMS. Alternating × Firmware upgrade in progress. Click for Blue/White Table of Contents RJ45 PoE LED (Ports 0 - 9) No PoE Green 24V Passive PoE Output RJ45 Speed/Link/Activity LED (Ports 0 - 9) No Link Amber...

  • Page 4: Hardware Installation

    SFP (Ports 10 - 11) ER-12P Quick Start Guide SFP routing ports are hot-swappable and support Gigabit fiber SFP modules. × Click for Reset Button Table of Contents Click here to learn how to reset an EdgeRouter to factory defaults. Power Connect the included Power Adapter to the Power port.
  • Page 5 ER-12P Quick Start Guide × Click for Table of Contents...
  • Page 6 ER-12P Quick Start Guide × Click for Table of Contents...
  • Page 7 ER-12P Quick Start Guide × Click for Table of Contents Grounding the EdgeRouter (Recommended) The Power Adapter grounds the device; however, you can add optional ESD grounding for enhanced ESD protection (ground wire not included).

  • Page 8: Connecting Power

    ER-12P Quick Start Guide Optional × Click for Table of Contents Connecting Power...
  • Page 9 ER-12P Quick Start Guide × Click for Table of Contents Using SFP Ports...
  • Page 10 ER-12P Quick Start Guide × Click for Table of Contents For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1.
  • Page 11 3. Launch your web browser. Enter the appropriate IP address in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.

  • Page 12: Static Ip Address

    3. Launch your web browser. Type https://192.168.1.1 in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 13 ER-12P Quick Start Guide UNMS Management You can manage your device using UNMS, which lets you configure, monitor, × Click for upgrade, and back up your devices using a single application. Get started at Table of Contents www.unms.com Configuring PoE Settings The PoE setting for ports 0 - 9 is set to Off by default.

  • Page 14: Specifications

    ER-12P Quick Start Guide × Click for Table of Contents For detailed instructions on configuring other features, please refer to the EdgeOS User Guide. The User Guide is available at ui.com/download/edgemax Specifications ER-12P Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") Weight 700 g (1.54 lb)

  • Page 15: Safety Notices

    PoE with 24VDC Power Adapter PoE with 24VDC Power Adapter ER-12P Quick Start Guide PoE Interfaces (10) 24V Passive PoE Ports, 2-Pair (Pins 4, 5+; 7, 8-) Passive PoE Max. Wattage per 17W (24V) × Click for Port Table of Contents Passive PoE Voltage Range 24V: 20 to 30V Safety Notices...

  • Page 16: Limited Warranty

    e. Protective bonding must be installed in accordance with local national wiring rules and ER-12P Quick Start Guide regulations. 4. The product is used in Service Access Area. × Click for Limited Warranty Table of Contents ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

  • Page 17: Weee Compliance Statement

    ER-12P Quick Start Guide WEEE Compliance Statement × Click for Table of Contents Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved.
