UPS2000-G-(15 kVA–20 kVA) Quick Guide
Issue: 08
Part Number: 31507443
Date: 2021-07-16
Overview
UPS Model
UPS2000-G-15KRTL
UPS2000-G-15KRTL-01
UPS2000-G-20KRTL
UPS2000-G-20KRTL-01

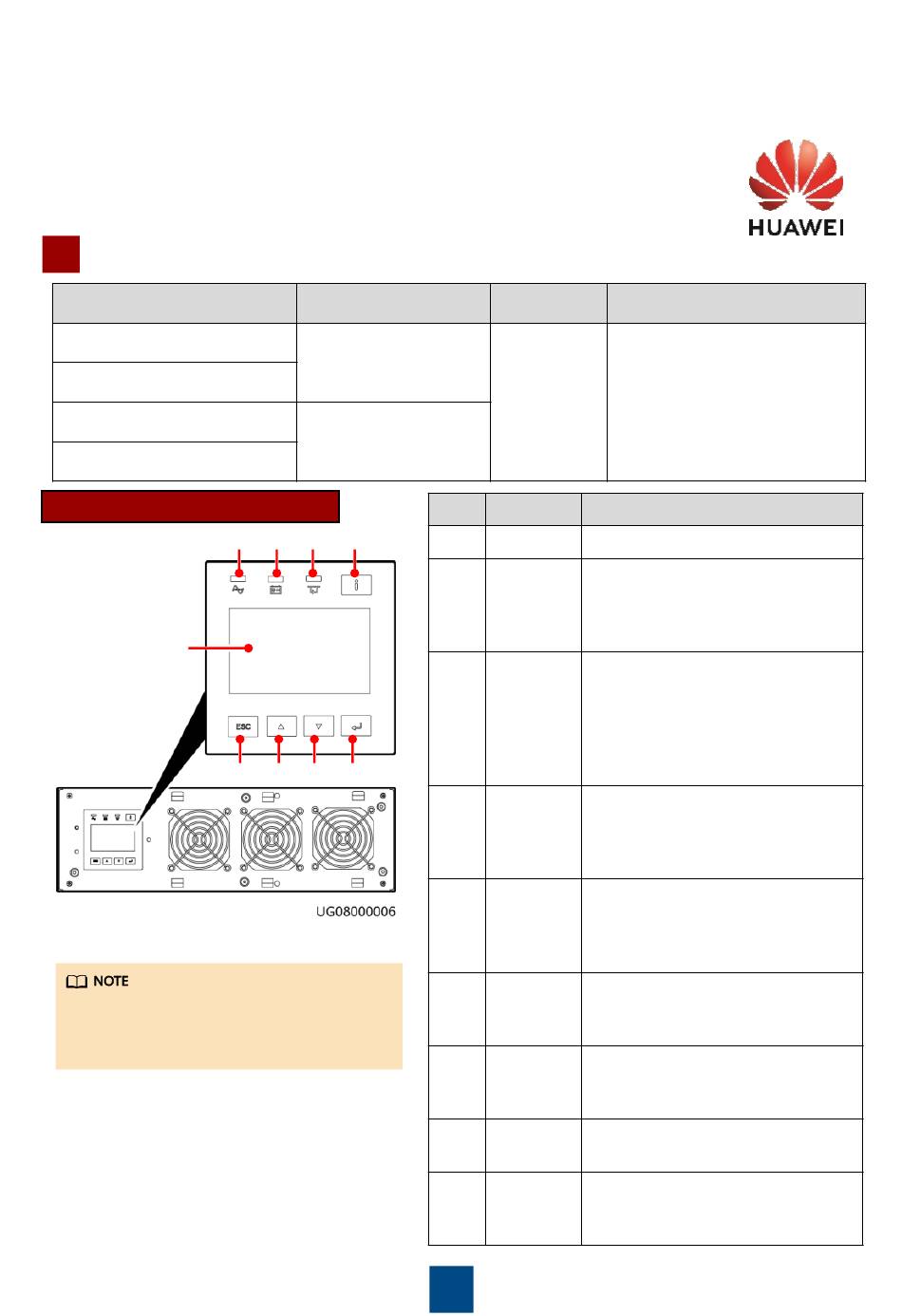

Front View (15 kVA/20 kVA)
1
The UPS is working in ECO mode only
if the mains indicator and bypass
indicator are both on.
Represented By
15 kVA
20 kVA
2
3
4
5
9
8
7
6
Weight
32 kg
No.
Name
Description
1
LCD
-
2
Mains
•
indicator
•
3
Battery
•
indicator
•
•
4
Bypass
•
indicator
•
5
Fault
•
indicator/
•
INFO
button
•
6
Confirm/
Confirms settings, starts the UPS,
Start
mutes the buzzer, or performs a
button
battery self-check.
7
Page
-
Down
button
8
Page Up
-
button
9
ESC/Shut
Returns to an upper-level menu,
down
or shuts down the UPS.
button
Copyright © Huawei Technologies Co., Ltd. 2021.
1
Dimensions (H x W x D)
430 mm x 130 mm x 757 mm
On: The UPS is working in
normal mode.
Off: The UPS is not working in
normal mode.
On: The UPS is working in
battery mode.
Off: The UPS is not working in
battery mode.
Blinking: The battery capacity
is less than 25%.
On: The UPS is working in
bypass mode.
Off: The UPS is not working in
bypass mode.
Steady red: The UPS is faulty.
Blinking red: The UPS has
generated an alarm.
Green: The UPS is normal.
All rights reserved.

Advertisement

loading

Related Manuals for Huawei UPS2000-G-15KRTL

Summary of Contents for Huawei UPS2000-G-15KRTL

  • Page 1 Page Down button Page Up button ESC/Shut Returns to an upper-level menu, down or shuts down the UPS. button Copyright © Huawei Technologies Co., Ltd. 2021. All rights reserved.

  • Page 2: Installing A Single Ups

    2. Use insulated tools during installation. 3. Only engineers certified by the manufacturer or its agent are allowed to install, commission, and maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting UPS faults are beyond the warranty scope of Huawei.

  • Page 3: Installing Devices

    Installing Devices Scena Rack-Mounted Installation rio 1 1. Determine the installation dimensions. UPS (3U) Install devices from bottom to top, as shown in the figure. Battery pack (optional, 3U) 2. Install mounting ears. M4x8 (8 PCS) 1.2 N•m...
  • Page 4 The length of guide rails ranges from 592.37 mm to 807.37 mm, the width is 30 mm, and the height is 87 mm. The guide rails are scalable and support Huawei M-type cabinets. 4. Secure the devices. UPS (3 U) Battery pack...
  • Page 5 OFF to prevent operations with power on. 4. If the input or output wiring has to be changed, contact Huawei technical support if you are not familiar with the operation. Do not power on the UPS directly.
  • Page 6 Connect cables based on the actual situation. Three-Phase Input, Three-Phase Output, One Power Source (Factory Settings) Wiring Terminal OUTPUT INPUT External Circuit 15 kVA: 15 kVA: load Breaker 50 A (D 50 A (D feature); feature); 20 kVA: 20 kVA: 63 A (D 63 A (D feature)
  • Page 7 Three-Phase Input, Single-Phase Output, One Power Source zWiring AC OUTPUT AC INPUT Terminal External Mains K Bypass K Circuit 15 kVA: 100 A 15 kVA: 50 A (D 15 kVA: 100 A (D Breaker (D feature); feature); 20 kVA: feature); 20 kVA: 125 A 20 kVA: 125 A 63 A (D feature) (D feature)
  • Page 8 Three-Phase Input, Single-Phase Output, Two Power Sources Wiring AC OUTPUT AC INPUT Terminal External Mains K Bypass K Circuit 15 kVA: 100 A (D feature); 15 kVA: 100 A 15 kVA: 50 A (D Breaker 20 kVA: 125 A (D feature) (D feature);...
  • Page 9 Single-Phase Input, Single-Phase Output, One Power Source Wiring AC INPUT PE Terminal OUTPUT External Circuit 15 kVA: 15 kVA: Breaker 100 A (D 100 A (D feature); feature); 20 kVA: 20 kVA: load 125 A (D 125 A (D feature) feature) Residual 300 mA...

  • Page 10: Installing Battery Cables

    External Battery Strings Scenario 1 1. The UPS2000-G-15KRTL/20KRTL can connect to an external battery string (40 batteries in the standard configuration, and an even number of 32 to 40 batteries are supported). The neutral wire is connected to the middle point of the battery string. For example, if there are 40 batteries, the neutral wire is connected to the negative terminal of the twentieth battery.
  • Page 11 Battery pack 1 Battery pack 2 Battery pack 3 Battery pack 4 Battery pack 5 Battery pack 6 Battery pack 7 Battery pack 8 (Optional) Connecting Cables to Optional Cards For details about how to install the SNMP card, dry contact card, and Modbus card, see the RMS-SNMP01A V100R001 Installation Guide RMS-MODBUS01A User Manual RMS-...

  • Page 12: Verifying The Installation

    RS232 port on the PC (Optional) Connecting an EPO Switch 1. For UPS2000-G-15KRTL-01/UPS2000-G-20KRTL- 01, choose Settings > System Parameters > Other Settings and set EPO Enable to Enable. 2. Connect an external switch to the EPO ports of the UPS. After you turn on the switch in the case of emergency, the inverter stops and the UPS does not transfer to bypass mode.

  • Page 13: Powering On And Starting The Ups

    Powering On and Starting the UPS User interface (UI) snapshots shown in this document correspond to V100R001C10SPC700 and are for reference only. If any UI changes are made, contact Huawei technical support to obtain the latest snapshots. Symbol Description Remarks Press A.
  • Page 14 Setting Key Parameters and Starting Inverters 1. Incorrectly setting battery parameters compromises battery safety and battery backup time. UPS2000-G-(6 kVA–20 kVA) User Manual For details about parameter settings, see the 2. Set system parameters with caution because the settings determine whether the UPS can operate normally.
  • Page 15 Set Language Set Output mode. Start Set Frequency Set Positive Set Voltage level. level. batteries. Set Negative Set Battery batteries. capacity. On the default screen, hold down for more than 5 seconds. Release the button when you hear a beep sound. The inverters are started. The following uses three-phase input and three-phase output of the UPS in normal mode as an example.
  • Page 16 Scenario 2: Non-initial Startup 1. The preset password is 000001, used to enter the Settings menu. 2. The preset feature code is 999999, used to restore the preset password. Perform "startup operations": On the standby screen, hold down for more than 5 seconds. Release the button when you hear a beep sound.

  • Page 17: Parallel System

    Parallel System • This section describes how to install a 1+1 parallel system. • Only UPSs of the same model can be connected in parallel. Installing Devices Rack-Mounted Installation Scenario 1 Install devices from bottom to top, as shown in the figure. For details, see the method for installing a single UPS.
  • Page 18 2. Before cable connection, switch off all circuit breakers in the parallel system. 3. If the input or output wiring has to be changed, contact Huawei technical support if you are not familiar with the operation. Do not power on the UPS directly.
  • Page 19 Equipped with No PDU Scenario 1 Three-Phase Input, Three-Phase Output, One Power Source (Factory Settings) load Three-Phase Input, Three-Phase input Output, Two Power Sources load Mains input Bypass input...
  • Page 20 Three-Phase Input, Single-Phase Output, One Power Source load input...
  • Page 21 Three-Phase Input, Single-Phase Output, Two Power Sources load Mains input Single-Phase Input, Single-Phase Bypass Output, One Power Source input load input...
  • Page 22 Dual-Live-Wire Input, Dual-Live-Wire Output, One Power Source load input...
  • Page 23 Equipped with a PDU Scenario 2 PDC-0038V4ACIOA Quick Installation Guide For details about the PDU, see the PDC-0091V2ACIOA Quick Installation Guide Three-Phase Input, Three-Phase Output, One Power Source (Factory Settings) PDC-0038V4ACIOA Three-Phase Input, Three-Phase Output, Two Power Sources PDC-0038V4ACIOA...
  • Page 24 Three-Phase Input, Single-Phase Output, One Power Source When connecting cables between PDUs and the mains input of the UPS 1 and UPS 2, connect only L2 and L3. As L1 and N wires do not connect to the UPS, wrap them with insulation tape.
  • Page 25 Single-Phase Input, Single-Phase Output, One Power Source PDC-0091V2ACIOA...
  • Page 26 M6 (10 PCS) 4.8 N•m 1. The UPS2000-G-15KRTL/20KRTL can connect to an external battery string (40 batteries in the standard configuration, and an even number of 32 to 40 batteries are supported). The neutral wire is connected to the middle point of the battery string. For example, if there are 40 batteries, the neutral wire is connected to the negative terminal of the twentieth battery.
  • Page 27 Scenario 2 External Battery Packs 1. If the 15 kVA/20 kVA UPS parallel system does not share battery packs, the cable connection methods for each UPS and battery pack in the parallel system are the same as those in a single 15 kVA/20 kVA UPS system. 2.
  • Page 28 UPS 1 RS232-RS485 adapter RS232 port on the PC (Optional) Connecting an EPO Switch 1. For UPS2000-G-15KRTL- 01/UPS2000-G-20KRTL-01, choose Settings > System Parameters > Other Settings and set EPO Enable to Enable. 2. Connect an external switch to the EPO ports of the UPS. After you...
  • Page 29 Installing Parallel Cables UPS 2 UPS 1 Verifying the Installation 1. Check each UPS in the parallel system by following instructions in chapter 6 "Verifying the Installation." 2. Check that parallel cables are properly connected and that the output voltages of all UPSs in the parallel system are consistent.
  • Page 30 Powering On and Starting the UPS Do not start loads before the parallel system is started. Powering On and Starting the UPS Check that the UPS has passed all check items described in chapter 6 "Verifying the Installation." Switch on the external battery circuit breaker if any. Check that the input voltage is normal.
  • Page 31 UPS Initialization and Parameter Settings The following uses three-phase input and three-phase output of the UPS in normal mode as an example. The parameter setting screens are shown as follows. 1. Set Language (default: English), System Parameters, and Battery Parameters for each UPS. Scenario 1: Initial Startup Set Language (default: English), System Parameters, and Battery Parameters.
  • Page 32 2. The UPS automatically synchronizes its settings to other UPSs in the parallel system. 3. Set battery string sharing for each UPS based on site requirements. This step applies only to the UPS2000-G-15KRTL-01 and UPS2000-G-20KRTL-01. 4. If no alarm is displayed on the monitoring screen, continue with the subsequent operations. If an alarm is displayed, clear the alarm.
  • Page 33 Shutdown Shutting Down a Single UPS in the Parallel System Perform "shutdown operations" to shut down the UPS: On the default screen, hold down ESC for more than 5 seconds. Release the button when you hear a beep sound. The inverter shuts down.
  • Page 34 Typical Alarm Handling UPS2000-G-(6 kVA-20 kVA) User Manual For more parameters and alarm information, see Alarm Alarm ID- Alarm Clearance Impact on the Handling Suggestion Name Cause ID Severity Mode System Abnormal 0001-01 Minor Automatic • The rectifier Possible causes: mains volt.
  • Page 35 Alarm Alarm ID- Alarm Clearance Impact on the Handling Suggestion Name Cause ID Severity Mode System • Mains 0004-01 Minor Automatic The rectifier Possible cause: The mains input phase transfers to three-phase sequence is reverse battery mode, incorrect. which does Measure: Check that mains not affect the input power cables are correctly...
  • Page 36 Fan fault 0043-01 Critical Automatic This alarm Possible cause: The fan is does not abnormal. affect the Measure: Clean up foreign UPS or the objects around the fan. If the power supply. alarm persists, contact Huawei technical support.
  • Page 37 The UPS may Measure: Rectify output port transfer to short circuits. Power on and another restart the UPS. If the alarm working persists, contact Huawei mode or shut technical support. down. 0158-01 Minor Automatic If the bypass...
  • Page 38 Scan here for technical support (carrier): HUAWEI AppGallery Scan here for more documents: Support-E Support WeChat You can also log in to Huawei https://support.huawei.com/enterprise technical support website: https://support.huawei.com Huawei Technologies Co., Ltd. Huawei Industrial Base, Bantian, Longgang Shenzhen 518129 People's Republic of China...
