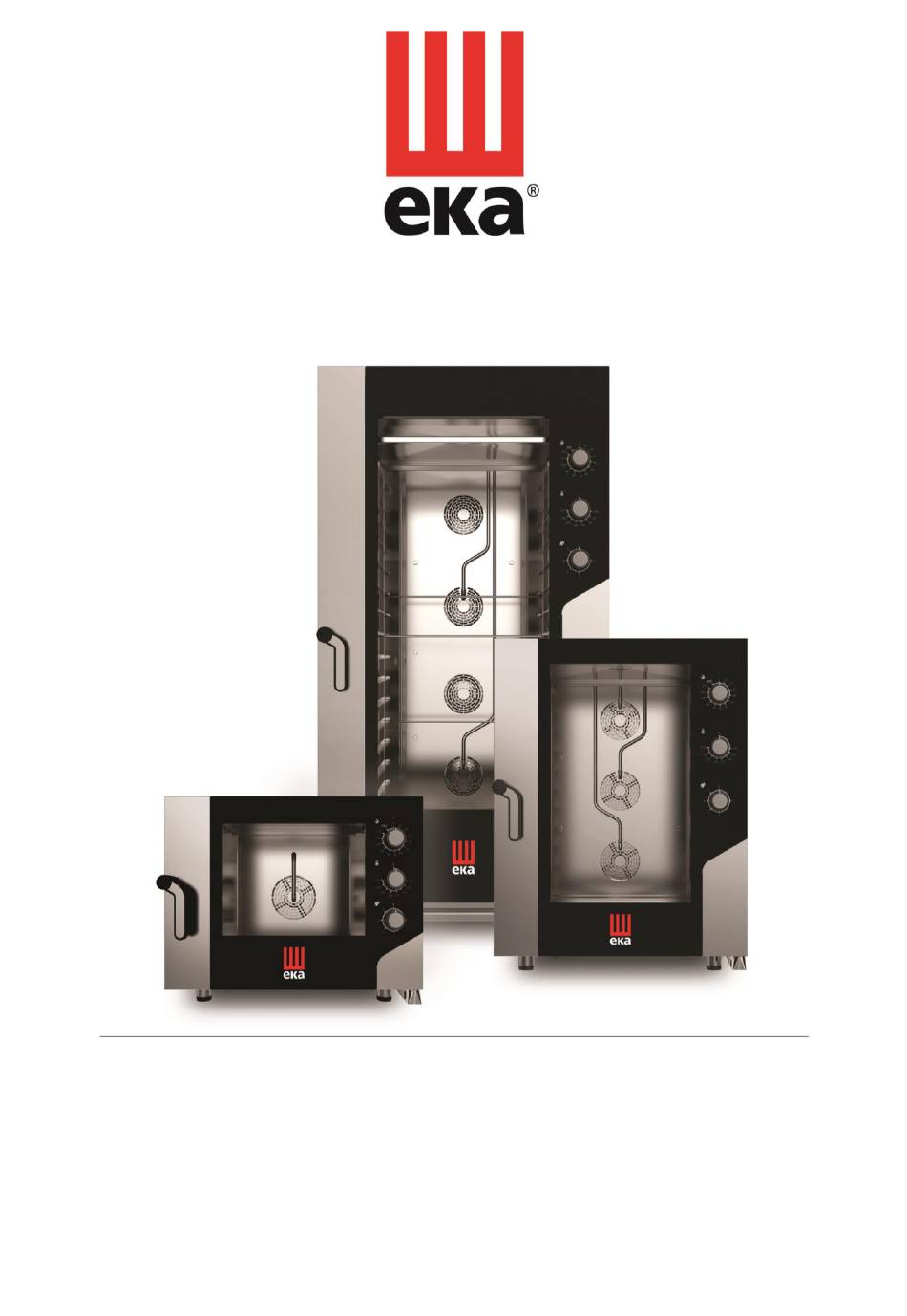

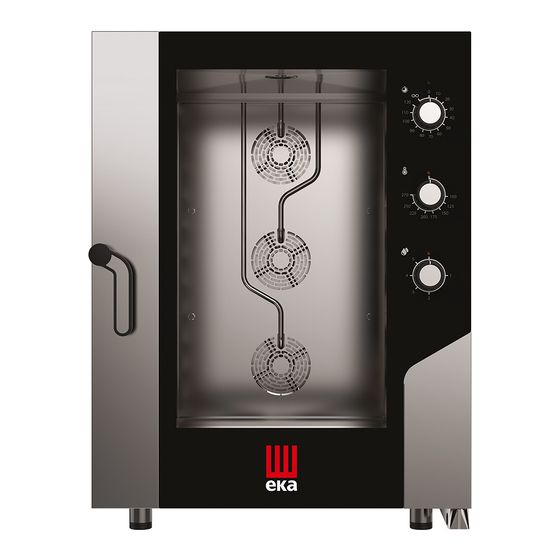

- Page 1 MAINTENANCE MANUAL SMART OVENS MKF 464 S- MKF 416 S - MKF 511 S MKF 664 S – MKF 664 SP – MKF 621 S – MKF 616 S – MKF 711 S MKF 1064 S – MKF 1021 S – MKF 1016 S MKF 1111 S...
-
Page 2: Table Of Contents
CONTENTS 1. SERVIZIO TECNICO (TECHNICAL SERVICE) ____________________________________________________ 2 2. GENERAL INFORMATION __________________________________________________________________ 2 3. INSTRUCTIONS FOR THE INSTALLER _________________________________________________________ 2 3.1 Storage __________________________________________________________________________ 2 3.2 Transportation of the appliance ______________________________________________________ 2 3.3 Unpacking the appliance ____________________________________________________________ 3 3.4 Removal of the protective film _______________________________________________________ 3 3.5 Protective film/package disposal ______________________________________________________ 3 3.6.1 Table top oven placement _________________________________________________________ 3 3.6.2 Stacking ovens on other appliances _________________________________________________ 4... -
Page 3: Servizio Tecnico (Technical Service)
1. SERVIZIO TECNICO (TECHNICAL SERVICE) For periodic maintenance checks and repairs, contact your nearest Support Centre and only use original spare parts. Failure to comply with this provision shall forfeit the warranty right. 2. GENERAL INFORMATION It is essential for this instruction manual to be stored together with the appliance for future referencing; in the event of misplacing it, a copy must be obtained directly from the manufacturer. -
Page 4: Unpacking The Appliance
3.3 Unpacking the appliance Remove the packaging before installation. It consists of a wooden pallet supporting the appliance and a cardboard casing protecting it. Ensure the appliance has not undergone any damage during transport; otherwise immediately alert your dealer and/or carrier. 3.4 Removal of the protective film Before using the appliance accurately remove the special film protecting the stainless steel components, avoiding glue residues on the surfaces;... -
Page 5: Stacking Ovens On Other Appliances
Warning If the appliance is positioned on a wheeled table/support, ensure that the intended movement does not damage electrical wires, water pipes, drain pipes or anything else. 3.6.2 Stacking ovens on other appliances When stacking two appliances only the specific “ supplied by can be used. -
Page 6: Power Supply Cable Connection (Replacement)
when the appliance is running, the power supply voltage does not deviate from the rated voltage value by ±10%. Ensure that the power supply cable does not come into contact with the appliance's hot parts. If the power supply cable is damaged, it must be replaced by the manufacturer or their technical support service, or in any case by a person with similar qualifications, to prevent any risk. - Page 7 Mod. MKF 416 S – MKF 464 S – MKF 511 S Mod. MKF 616 S - MKF 664 S – MKF 664 SP – MKF 711 S Mod. MKF 621 S Mod. MKF1016 S - MKF 1064 S – MKF 1111 S Mod.
-
Page 8: Connection To The Water Mains
3.10 Connection to the water mains The appliance must be supplied with drinking water at a maximum temperature of 30°C. The water pressure must be between 100 and 200 kPa (1.0 -2.0 bar). If the mains pressure exceeds 2.0 bar, install a pressure reducer upstream of the appliance. If the value is lower than 1.0 bar use a pump to raise the pressure. -
Page 9: Water Drain For Floor Ovens
3.11.1 Water drain for floor ovens The drain pipe is conveyed to an open (grilled) floor drain (Fig.3) and should not go into direct contact with the discharge point: the "air gap" (distance between the drain pipe coming from the appliance and the open drain) must be at least 25 mm. -
Page 10: Maintenance Instructions
4. MAINTENANCE INSTRUCTIONS A periodic check (at least once a year) of the appliance contributes to extending its service life and assures proper operation. Any maintenance operation on the appliance must only be done by highly qualified personnel trained in the operations being performed and authorised by . -
Page 11: Replacing The Cooking Chamber Gasket
4.3 Replacing the cooking chamber gasket The cooking chamber gasket has a rigid profile with retaining fins. This profile must be inserted in the suitable perimeter seat on the “front” of the chamber. To replace the gasket, simply remove the used one from its seat (pull tightly near the 4 corners) and, after cleaning any impurities from the seat, insert the new gasket (to facilitate the assembly, it is recommended to wet the profile of the gasket with soapy water). -
Page 12: Residual Risks
4.6 Residual risks Do not use the door handle to move the appliance: this may deform the door frame. The appliance is fitted with electrical parts: it must never be washed with a water or steam spray. The appliance is electrically connected: disconnect the power supply before performing any type of maintenance. -
Page 13: Disposal Of The Appliance
7. DISPOSAL OF THE APPLIANCE In accordance with Directive 2012/19/EU on the disposal of waste electrical and electronic equipment, the crossed-out wheeled bin symbol on the equipment indicates that the product was placed on the market after 13 August 2015, and that at the end of its services life it must be disposed of separately from other waste. -
Page 14: Availability And Supply Of Spare Parts
Components replaced under warranty are, in turn, covered by a 6-month warranty from the shipping date, certified by the transport document issued by Tecnoeka. No-one is authorised to change the warranty terms and conditions or to issue others, neither verbal nor written. 9.
