Chauvet CH-750 User Manual

Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA & Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground connection.
In the UK, it is required that all mains plugs are fitted with 5A fuses.
Technical Specifications
Power 120V~60Hz AC
Fuse 20mm Glass 15A Fast Blow
1 x 750W Xenon
Lamps
Part No CH-775B
Dimensions 381 x 203 x 127mm / 15 x 8 x 5in
Weight
3.59kg / 7.9lbs
Contact Chauvet
USA
Tecnical Assistance: 1-800-762-1084 (954) 929-1115
E-Mail tech@chauvetlighting.com
User Informtion
(Please complete for your records)
Date Purchased: / /
Dealer Stamp
230V~50Hz AC
20mm Glass 10A Fast Blow
1 x 750W Xenon
Part No CH-775B
381 x 203 x 127mm / 15 x 8 x 5in
3.59kg / 7.9lbs
Serial No: ________________

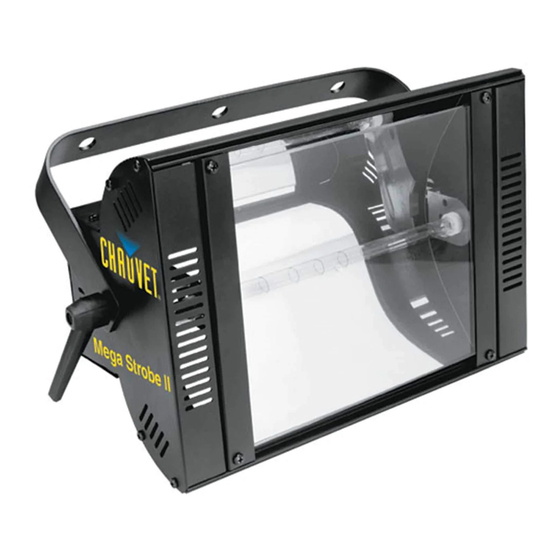

Model: CH-750 MEGA STROBE II
Mega Strobe II
CH-750
User Guide
Please read these instructions carefully before use
