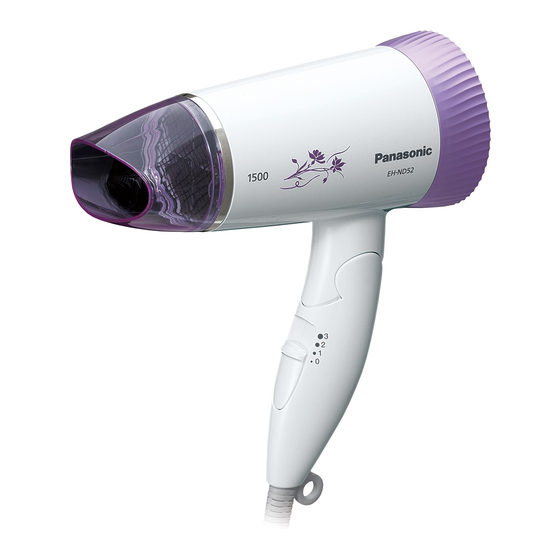

Panasonic EH-ND52 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Hair Dryer
  5. EH-ND52
  6. Service manual

Panasonic EH-ND52 Service Manual

Hide thumbs Also See for EH-ND52:

Advertisement

Quick Links

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Wiring Connection Diagram ---------------------------------10
6 Schematic Diagram ---------------------------------------------11

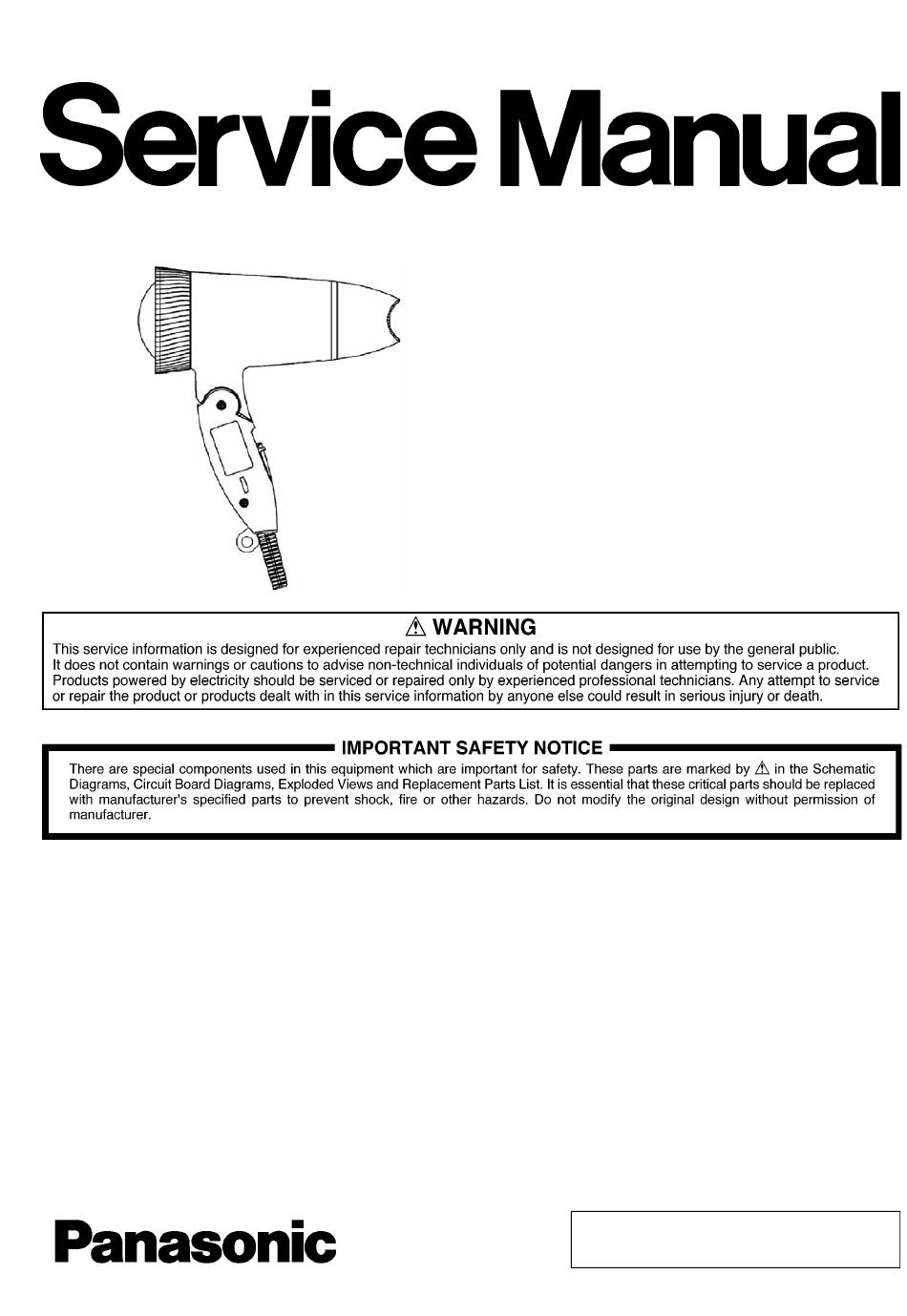

Model No.
ASIA
PAGE
© Panasonic Electric Works (Thailand) Co., Ltd.
2011. All rights reserved. Unauthorized copying and
distribution is a violation of law.
Order Number PEWT1104A17CE
Hair Dryer
EH-ND52
PAGE

Advertisement

loading

Related Manuals for Panasonic EH-ND52

Summary of Contents for Panasonic EH-ND52

  • Page 1: Table Of Contents

    4 Disassembly and Assembly Instructions ---------------- 4 5 Wiring Connection Diagram ---------------------------------10 6 Schematic Diagram ---------------------------------------------11 7 Exploded View and Replacement Parts List -----------12 © Panasonic Electric Works (Thailand) Co., Ltd. 2011. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typical the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide Refer to WIRING CONNECTION DIAGRAM.

  • Page 4: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly instruction 1. Take off nozzle as same direction in figure 4. 2. Remove tapping screws by Plus Driver and 2 torx screws by IEC driver as figure 5.
  • Page 5 3. Take off an air outlet grill and an air outlet ring by rotating. Take off an air inlet ring by rotating, then pulling a rear cover as figure 6. 4. Take off a handle A from housing A and B as figure 7.
  • Page 6 5. Take off a housing A from a housing B . Then remove tapping screws and a power cord retainer from handle B as figure 8. 6. Take off a motor heater block from a housing B as figure 9.
  • Page 7 4.2. Assembly instruction 1. Install leadwire Black, Yellow, Violet, Orange and lead wire brown (from power cord) with a main switch and a capacitor as fig- ure 10. 2. Connecting and soldering a motor heater block with a main switch as figure 11.
  • Page 8 3. Assemble motor heater block with handle B and housing B as figure 12.
  • Page 9 4. Assembly handle A , screw and nozzle as shown figure 13.

  • Page 10: Wiring Connection Diagram

    5 Wiring Connection Diagram...

  • Page 11: Schematic Diagram

    6 Schematic Diagram...

  • Page 12: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List Model No. : EH-ND52 Exploded View...
  • Page 13 Model No. : EH-ND52 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks EHND52T0312W TORX SCREW 3*12 2 FOR HANDLE AB *1 EHND52HDWW HANDLE AB (WHITE) EHND52MSPWW MAIN SWITCH PLATE (WHITE) INCLUDE 2 INSULATION TUBES (FOR CODE 615...
