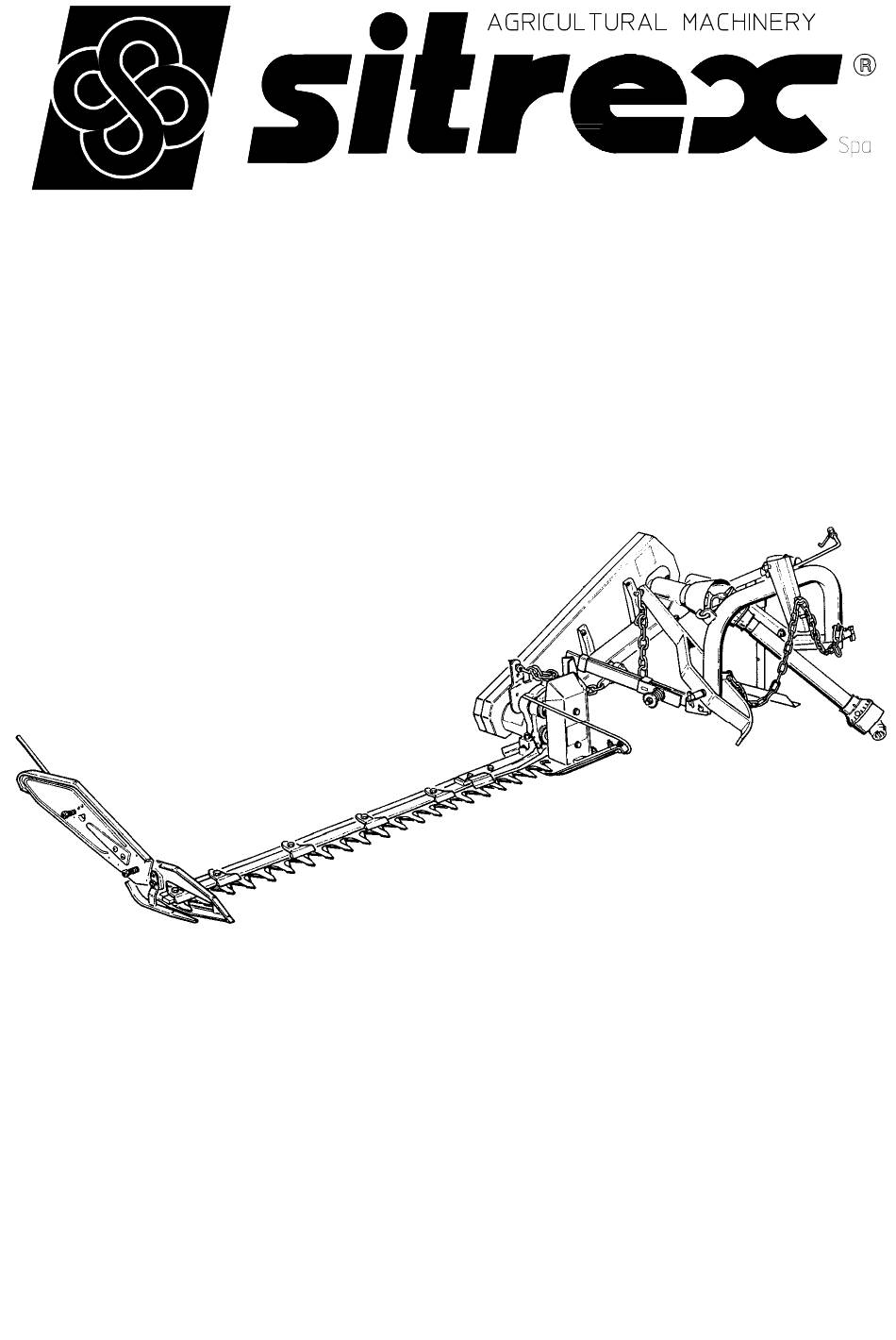

ASSEMBLY,
USE AND MAINTENANCE
SPARE PARTS LIST
SB/150 - SB/165
SB/180 – SB/210
10

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sitrex SB150

Summary of Contents for sitrex SB150

  • Page 1 ASSEMBLY, USE AND MAINTENANCE SPARE PARTS LIST SB/150 - SB/165 SB/180 – SB/210...
  • Page 3 WARRANTY DEAR CUSTOMER, WE WOULD LIKE TO WELCOME YOU AS OUR-PRODUCT USER AND THANK YOU FOR CHOOSING OUR MACHINE. OUR MACHINES ARE THE RESULT OF CAREFUL STUDY AND YEARS OF EXPERIENCE. WE HAVE ALWAYS PLACED IMPROVEMENT AMONG OUR PRIME OBJECTIVES. WE WOULD LIKE TO POINT OUT, HOWEVER, THAT FOR LASTING PROTECTION OF THE CAPITAL YOU HAVE INVESTED, IT IS NECESSARY TO FOLLOW THE INSTRUCTIONS IN THIS BOOKLET WHICH ILLUSTRATES THE CHARACTERISTICS, THE OPERATION AND...

  • Page 4: Safety Information & Warning

    ASSEMBLY, USE AND MAINTENANCE SAFETY INFORMATION & WARNING WARNING !!! Always read your operators manual thoroughly before operating or performing any maintenance on your mower. Before you operate this machine, know your controls and how to stop the tractor and mower quickly in an emergency! Read and observe all safety decals on the tractor and mower.
  • Page 5 ASSEMBLY, USE AND MAINTENANCE Always stop the tractor's engine and disengage the PTO before making adjustments or cleaning the mower. Always disengage the driveline and block up the machine before performing maintenance on the mower. Never operate the mower while in the raised of the transport position. Avoid sharp turns while mowing.
  • Page 6 ASSEMBLY, USE AND MAINTENANCE IMPORTANT The following Safety and Informational Decals are located on the SICKLE-BAR MOWING. Locate , read and understand these Decals. Replace any damaged Decals. Keep all Decals clear and readable.

  • Page 7: Technical Characteristics

    ASSEMBLY, USE AND MAINTENANCE TECHNICAL CHARACTERISTICS WORKING WIDTH 5' - 6 '- 7' THEORETIC POWER 12/16 MOUVEMENT FREQUENCY MINUTE N° 1250/1300 WORKING SPEED REQUIRED REVS P/T 500/550 acre YIELD OUT PUT PER HOUR 3,5-5 release SAFETY DEVICES +90°-60° POSSIBILITY OF WORKING WITH INCLINED BAR optional HYDRAULIC LIFT "V"...
  • Page 8 ASSEMBLY, USE AND MAINTENANCE ASSEMBLY INSTRUCTIONS CAUTION Attach lifting lever 5 to arch frame 9 inserting pin 4 and inserting bushing 3 on the other side, and fasten with washer 2 and nut 1. For a safer and simpler assembly, recommended that three-point arch frame be...
  • Page 9 ASSEMBLY, USE AND MAINTENANCE DANGER Remove paint from the part of pin 1 that must enter in bushing 3 of the belt drive assembly to make insertion easier. Load spring 2 securing the longer end in place at point C (drive assembly) and the shorter end at point E of support 1 as indicated in the detail in the illustration.
  • Page 10 ASSEMBLY, USE AND MAINTENANCE CAUTION Attach plate 9 to frame 7 using screws 14 and spring 8 and tighten nut 6 and washers 5 without completely compressing spring 8 (pieces 14, 8, 12 and 6 are contained in the nuts & bolts sack).
  • Page 11 ASSEMBLY, USE AND MAINTENANCE Connect the protective casing 1 to the power take- off support 5 using ring 2, screws 3 and nuts 4 contained in the nuts & bolts sack. Connect the chain (Rif.G) to the frame making use of the appropriate fasteners.
  • Page 12 ASSEMBLY, USE AND MAINTENANCE When assembly is completed, the machine should look as it appears in the illustration.
  • Page 13 ASSEMBLY, USE AND MAINTENANCE STARTING UP and USE FRAME Connect the Mower to the three-point attachment of the tractor inserting the gear rack in the pin of the third point, rest the chain "D" against it and connect the ends to the frame with the relative clamps.

  • Page 14: Working Position

    ASSEMBLY, USE AND MAINTENANCE LIFTING Adjust the chains of the mower rocker arm so that when operating the lifting device the bar rises creating an upwards angle of about 15/20°, then manually bring it to a vertical position and secure it to the bar stop tie rod by means of the relative winder nut.

  • Page 15: Belt Tension

    ASSEMBLY, USE AND MAINTENANCE BELT TENSION It is important to the check the belt tension especially in the first hours of working. To check the tension, it is necessary to exert upon each belt a pressure of nearly Ib. 8/9 if the flexion is over 1/2" "A", proceed as follows: 1) Lift the machine so as to unload the spring.
  • Page 16 ASSEMBLY, USE AND MAINTENANCE MOWING WITH INCLINED BLADE Mowing is possible with the any type of blade inclination, either upwards or downwards (+90°-60°), for cutting bushes, embankments, ditches, etc. To allow the bar to rotate downwards, release the chain from the bracket and fit an extension to the cylinder (if supplied). BLADE HOLDER REGISTRATION It is possible that in time the registration of the blade holder will be necessary.
  • Page 17 ASSEMBLY, USE AND MAINTENANCE HYDRAULIC SYSTEM (OPTIONAL) All the mowers can be provided with an hydraulic lifting device. This accessory could only be purchased by direct request. It use exclusively to lift the cutter-bar in a vertical position for transporting. Operate by means of a single acting cylinder. ASSEMBLY Insert the support in the arm and fix it through the two bolts M12 "A".
  • Page 18 ASSEMBLY, USE AND MAINTENANCE LUBRIFICATION mower delivered already lubricated. Grease all parts at least every 8 working hours, especially the central (Rif. M). In order avoid excessive wear indispensable to wash the bar with water at the end of any mowing. DRIVELINE Grease Fitting are located on the Cross Assembly of each U Joint and on the Telescoping Tubes.
  • Page 19 ASSEMBLY, USE AND MAINTENANCE TROUBLE CAUSE REMEDY 1. Blades dull. Sharpen or replace. Use NOT CUTTING CLEAN 2. RPM too slow. correct rotation. Reduce 3. Ground speed too fast. ground speed. 1 . Crop too wet. Allow crop to dry. Slow ground 2.

  • Page 20: Spare Parts List

    SPARE PARTS SPARE PARTS LIST SB/150 - SB/165 SB/180 – SB/210...
  • Page 21 SPARE PARTS LAYOUT OF THE TABLES...
  • Page 22 SPARE PARTS TABLE 01 SB...
  • Page 23 SPARE PARTS TAB. 01 SB ITEM PART.NO DESCRIPTION NOTE 100.368 FRAME 100.369 SUPPORT 610.605 BOLT, COMPLETE 100.370 SPACER 100.371 GEAR RACK 100.372 CHAIN, COMPLETE 100.373 PIN 610.606 PIN 600.244 NUT M24x2 DIN 934 CLASS 8 100.374 REDUCER INSERT 100.375 SPACER 100.376 LEVER 100.377 PIN 100.378 PIN...
  • Page 24 SPARE PARTS TABLE 02 SB...
  • Page 25 SPARE PARTS TAB. 02 SB ITEM PART.NO DESCRIPTION NOTE 100.393 COVER 100.394 CASING 100.395 STUD 600.223 SCREW M8x20 DIN 933 CLASS 8.8 610.612 SCREW M14x140 DIN 931 CLASS 8.8 600.386 SCREW M12x70 DIN 933 CLASS 8.8 610.614 BELLOW 610.172 SHAFT 100.396 BUSH 100.397 FRAME 100.398 ROCHER BRACKET...
  • Page 26 SPARE PARTS TABLE 03 SB...
  • Page 27 SPARE PARTS TAB. 03 SB ITEM PART.NO DESCRIPTION NOTE 610.617 BELT 100.402 SPECIAL NUT 100.403 BELT PULLEY 610.618 SPECIAL NUT 610.619 WASHER 100.404 SPACER 600.608 BEARING 6207 2RS 100.405 SHAFT 610.621 KEY B 8x7x56 DIN 6885 100.406 BELT PULLEY 600.702 SCREW M8x25 DIN 933 CLASS 8.8 100.407 FLANGE 610.623 BEARING NU 2210 610.624 BEARING 6307 2RS...
  • Page 28 SPARE PARTS TABLE 04 SB...
  • Page 29 SPARE PARTS TAB. 04 SB ITEM PART.NO DESCRIPTION NOTE 100.419 PIN 100.420 SPACER 100.421 WASHER 610.630 CLAMPING WASHER 100.422 ROD 610.631 BEARING NA 6932 AC4 100.423 PIN 100.424 SPACER 100.425 RING 610.632 SPECIAL NUT 610.633 CLAMPING WASHER 610.634 SPECIAL BEARING 610.635 RING 610.636 BEARING HK 4020 100.426 RING...
  • Page 30 SPARE PARTS TABLE 05 SB...
  • Page 31 SPARE PARTS TAB. 05 SB ITEM PART.NO DESCRIPTION NOTE 100.435 SUPPORT 100.436 CASING 600.770 SCREW M12x20 UNI 5739 CLASS 8.8 100.437 SHOE 100.438 SOLE 100.439 ROD 100.469 SHOE 100.441 SOLE 100.443 OUTER SWATH BOARD 100.445 SWATH STICK 610.641 SCREW M8x70 DIN 603 CLASS 6.8 100.447 SPRING 100.448 FASTENINGS 600.210 SCREW M12x70 UNI 5737 CLASS 8.8...
  • Page 32 SPARE PARTS TABLE 08 SB...
  • Page 33 SPARE PARTS TAB. 08 SB ITEM PART.NO DESCRIPTION NOTE 100.459 BLADE HOLDER 100.460 BLADE HOLDER 100.461 GUIDE 100.462 BLADE HEAD 100.463 BLADE HEAD 610.644 SPECIAL SCREW 610.656 SPECIAL BOLT 100.441 SOLE 100.464 SECTION 100.466 SECTION 3 HOLES 100.468 STIFFENER 100.469 OUTER SHOE 100.437 INNER SHOE 100.438 INNER SOLE 610.643 SPECIAL SCREW...
  • Page 34 SPARE PARTS TABLE 07 SB...
  • Page 35 SPARE PARTS TAB. 07 SB ITEM PART.NO DESCRIPTION NOTE 100.451 CYLINDER BARREL 610.646 NUT 100.453 PISTON 4 (**) 610.028 RING 6 (**) 610.029 GASKET 210.288 HEAD 8 (**) 610.026 GASKET 9 (**) 610.027 CLAMPING WASHER 10 (**) 610.025 RING 100.456 STEM 610.437 HOSE 100.344 CYLINDER 100.341 SUPPORT...
  • Page 36 Zona Industriale-Viale Grecia, 8 06018 TRESTINA-(Perugia)-ITALY Tel. +39.075.8540021-Telefax +39.075.8540523 e-mail: sitrex@sitrex.it www.sitrex.com...

This manual is also suitable for:

Sb165Sb180Sb210
