HAMPTON BAY FSC17008 Use And Care Manual

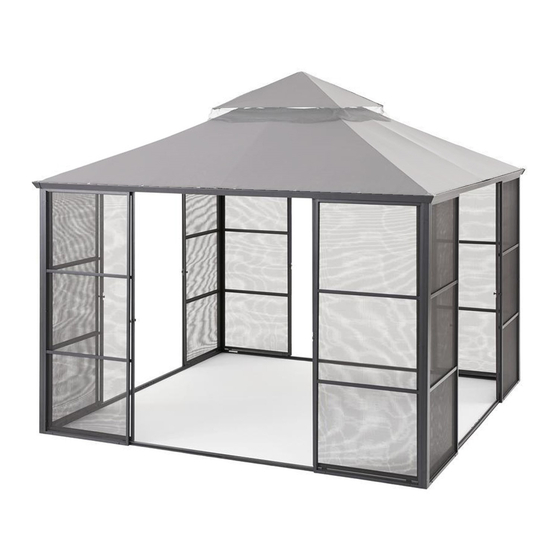

11 ft. x 11 ft. gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
Item #1002 665 203
Model #FSC17008
Improved Version
USE AND CARE GUIDE
11 FT. X 11 FT. GAZEBO
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

loading
Need help?

Need help?

Do you have a question about the FSC17008 and is the answer not in the manual?

Questions and answers

Wayne Jacobsen
May 7, 2025

Wondering if it’s possible to get a top Center connector.

0
1 comments:
Mr. Anderson
May 19, 2025

Yes, the HAMPTON BAY FSC17008 includes a top center connector, labeled as part (N) in the assembly instructions.

This answer is automatically generated

0

Related Manuals for HAMPTON BAY FSC17008

Summary of Contents for HAMPTON BAY FSC17008

  • Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........2 Assembly.

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Before beginning assembly of this product, make sure all parts are present. Compare parts with the Hardware Included and Package Contents lists. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. TOOLS REQUIRED (NOT INCLUDED) Safety Goggles Safety Hat...

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Post Lower slide rail Wall screen Lower slide rail Wall screen Upper rail track Sliding door Upper rail track Sliding door Inner connector Support bar Lower track connector Support bar Top center connector...
  • Page 5 Pre-Assembly (continued) PACKAGE CONTENTS (CONTINUED) Part Description Quantity Part Description Quantity Upper corner bar Door bolt Lower corner bar Track wheel Middle bar Large canopy Small canopy Corner connector Screen connector Door knob HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Assembly

    Assembly Assembling the wall screens □ Position a wall screen (B) to the right side of a post (A) and a wall screen (C) to the left side of the post (A). Secure the wall screens (C and B) to the post (A) using M6x35 bolts (AA).
  • Page 7 Assembly (continued) Attaching the lower slide rails □ Position the lower slide rail assemblies (H and I) along the bottom perimeter of the gazebo assembly. □ Position two nuts (EE) into each left lower slide rail (H) and right lower slide rail (I), as shown. □...
  • Page 8 Assembly (continued) Assembling the support bars □ Slide a support bar (F) and a support bar (G) onto an inner connector (L) until they meet in the center of the inner connector (L). □ Secure the support bars (F and G) onto the inner connector (L) using M6x15 bolts (BB).
  • Page 9 Assembly (continued) Attaching the corner connectors □ Attach a corner connector (S) to each top corner of the gazebo assembly using two screws (CC). Tighten with the screwdriver (GG). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 10 Assembly (continued) Preparing the sliding doors □ Attach two track wheels (V) to each sliding door (D and E) using M6x15 bolts (BB). □ Attach a door bolt (U) to a door knob (T) on each sliding door (D and E). NOTE: Ensure the horizontal supports on the screens (B and C) go on the outside of the gazebo.
  • Page 11 Assembly (continued) Attaching the upper rail tracks to the doors □ Slide a upper rail track (J) onto the top of a sliding door (D) and a right upper rail track (K) onto the top of a sliding door (E). Ensure the upper rail tracks (J and K) slide smoothly over the rollers on the tops of the doors (D and E).
  • Page 12 Assembly (continued) Assembling the roof □ Connect a middle bar (Q) into every other connector on the top center connector (N) until the middle bars (Q) click into place. □ Connect an upper corner bar (O) into the remaining connectors on the top center connector (N) until the upper corner bars (O) click into place.
  • Page 13 Assembly (continued) Preparing the top cover □ Place the large canopy (W) and small canopy (X) over the roof. □ Slide the roof finishing bars (R) into each corner of the large canopy (W). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Assembly (continued) Attaching the top cover assembly onto the gazebo □ Place the top cover assembly onto the gazebo. □ Attach the roof assembly to the center and corner sections of the gazebo using M6x15 bolts (BB).

  • Page 15: Care And Cleaning

    Assembly (continued) Completing the assembly □ Secure the large canopy (W) in place using M6x15 bolts (BB). □ Secure the gazebo to the ground using the ground stakes (GG). x32 GG x16 Care and Cleaning □ Clean gently with a sponge using environmentally-friendly soap and water solution. Do not use abrasive materials, such as wire brushes, chemicals, cleansers or bleach.
  • Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
