Item #0000 000 000
Model #FSS60428L-ST
USE AND CARE GUIDE

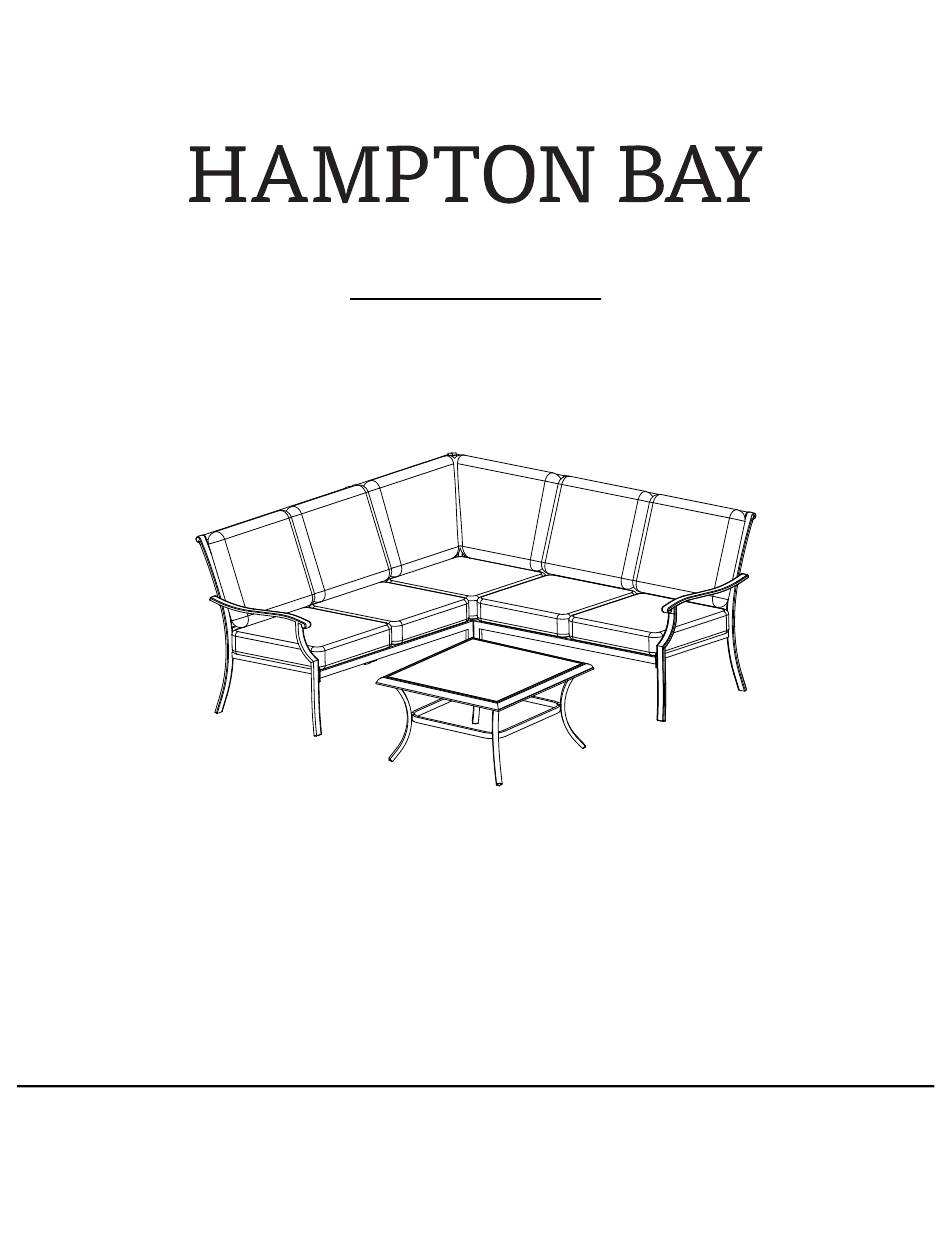

REDWOOD VALLEY SECTIONAL
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REDWOOD VALLEY SECTIONAL and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY REDWOOD VALLEY SECTIONAL

Summary of Contents for HAMPTON BAY REDWOOD VALLEY SECTIONAL

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Left Arm Chair Package Contents..........4 Important Safety Information........2 Right Arm Chair Package Contents.......... 5 Corner Chair Package Contents..........6 Save These Instructions............Table Package Contents ............7 Read All Instructions Before Use ..........

  • Page 3: Warranty

    Warranty 2 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use.

  • Page 4: Left Arm Chair Package Contents

    Pre-Assembly (continued) LEFT ARM CHAIR PACKAGE CONTENTS Part Description Quantity Left arm backrest Left arm seat Left arm Corner brace Back cushion...

  • Page 5: Right Arm Chair Package Contents

    Pre-Assembly (continued) RIGHT ARM CHAIR PACKAGE CONTENTS Part Description Quantity Corner brace Back cushion Seat cushion Right arm backrest Right arm seat HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Corner Chair Package Contents

    Pre-Assembly (continued) CORNER CHAIR PACKAGE CONTENTS Part Description Quantity Corner brace Corner chair right backrest Corner chair left backrest Corner chair seat Right back cushion...
  • Page 7 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Leg connector Table Leg HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 8: Left Arm Chair Assembly

    Left Arm Chair Assembly Attaching the left arm seat to the left arm backrest Place the left arm backrest (A) on a soft surface. Attach the left arm seat (B) to the left arm backrest (A) using M6x30 combination bolts (CC). Do not fully tighten all the bolts at this step.
  • Page 9 Left Arm Chair Assembly (continued) Attaching the corner brace to the left arm seat and the left arm backrest Attach the corner brace (D) to the left arm seat (B) and the left arm backrest (A) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 10 Left Arm Chair Assembly (continued) Attaching the left arm to the left arm seat and left arm backrest Attach the left arm (C) to the left arm seat (B) and the left arm backrest (A) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 11 Left Arm Chair Assembly (continued) Checking the chair Turn the left arm chair right side up. Fully tighten the bolts using the hex wrench (GG). Ensure all connections are secure before use. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 12: Right Arm Chair Assembly

    Right Arm Chair Assembly Attaching the right arm seat to the right arm backrest Place the left arm backrest (G) on a soft surface. Attach the right arm seat (H) to the right arm backrest (G) using M6x30 combination bolts (CC). Do not fully tighten all the bolts at this step.
  • Page 13 Right Arm Chair Assembly (continued) Attaching the corner brace to the right arm seat and the right arm backrest Attach the corner brace (D) to the right arm seat (H) and the right arm backrest (G) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 14 Right Arm Chair Assembly (continued) Attaching the right arm to the right arm seat and the right arm backrest Attach the right arm (I) to the right arm seat (H) and the right arm backrest (G) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 15 Right Arm Chair Assembly (continued) Checking the chair Turn the right arm chair right side up. Fully tighten the bolts using the hex wrench (GG). Ensure all connections are secure before use. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 16: Corner Chair Assembly

    Corner Chair Assembly Attaching the corner chair seat to the corner chair left backrest Place the corner chair left backrest (K) on a soft surface. Attach the corner chair seat (L) to the corner chair left backrest (K) using M6x30 combination bolts (CC). Do not fully tighten all the bolts at this step.
  • Page 17 Corner Chair Assembly (continued) Attaching the corner brace to the corner chair seat and the corner chair left backrest Attach the corner brace (D) to the corner chair seat (L) and the corner chair left backrest (K) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 18 Corner Chair Assembly (continued) Attaching the corner chair right backrest to the corner chair seat Attach the corner chair right backrest (J) to the corner chair seat (L) using M6x30 combination bolts (CC). Do not fully tighten all the bolts at this step. NOTE: Loosely tighten all the bolts using the hex wrench (GG).
  • Page 19 Corner Chair Assembly (continued) Attaching the corner chair right backrest to the corner chair left backrest Attach the corner chair right backrest (J) to the corner chair left backrest (K) using M6x30 combination bolts (CC). Attach the corner brace (D) to the corner chair seat (L) and the corner chair right backrest (J) using the M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step.
  • Page 20 Corner Chair Assembly (continued) Checking the chair Ensure all connections are secure before use.
  • Page 21 Table Assembly Connecting the table legs Place the table top (P) upside down on a soft surface. Attach the table legs (R) to the table top (P) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. NOTE: Loosely tighten all the bolts using the hex wrench (GG).
  • Page 22 Table Assembly (continued) Attaching the leg connector to the legs Attach the leg connector (Q) to the legs (R) using M6x25 combination bolts (BB). Do not fully tighten all the bolts at this step. NOTE: Loosely tighten all the bolts using the hex wrench (GG).
  • Page 23 Table Assembly (continued) Checking the table Once all of the bolts are in place, fully tighten the bolts using the hex wrench (GG). Turn the table right side up. Ensure that all connections are secure. HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 24: Set Assembly

    Set Assembly Connecting the left arm chair and the right arm chair to the corner chair Connect the chairs using M6x45 combination bolts (DD), M6 washers (EE) and M6 nut (FF). Fully Tighten all bolts using the hex wrench (GG) and the M6 wrench (HH) at this step.

  • Page 25: Care And Cleaning

    Set Assembly (continued) Checking the set Ensure all connections are secure before use. Place the seat cushions (F) and the back cushions (E), the corner chair seat cushion (O), the right back cushion (M) and the left back Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly.
  • Page 26 1-855-HD-HAMPTON HOMEDEPOT.CA Factory left chair ID # FSS60428LB Factory right chair ID # FSS60428LC Factory corner chair ID # FSS60428A Factory table ID # FTS61137A...
