Summary of Contents for HAMPTON BAY FSC18015

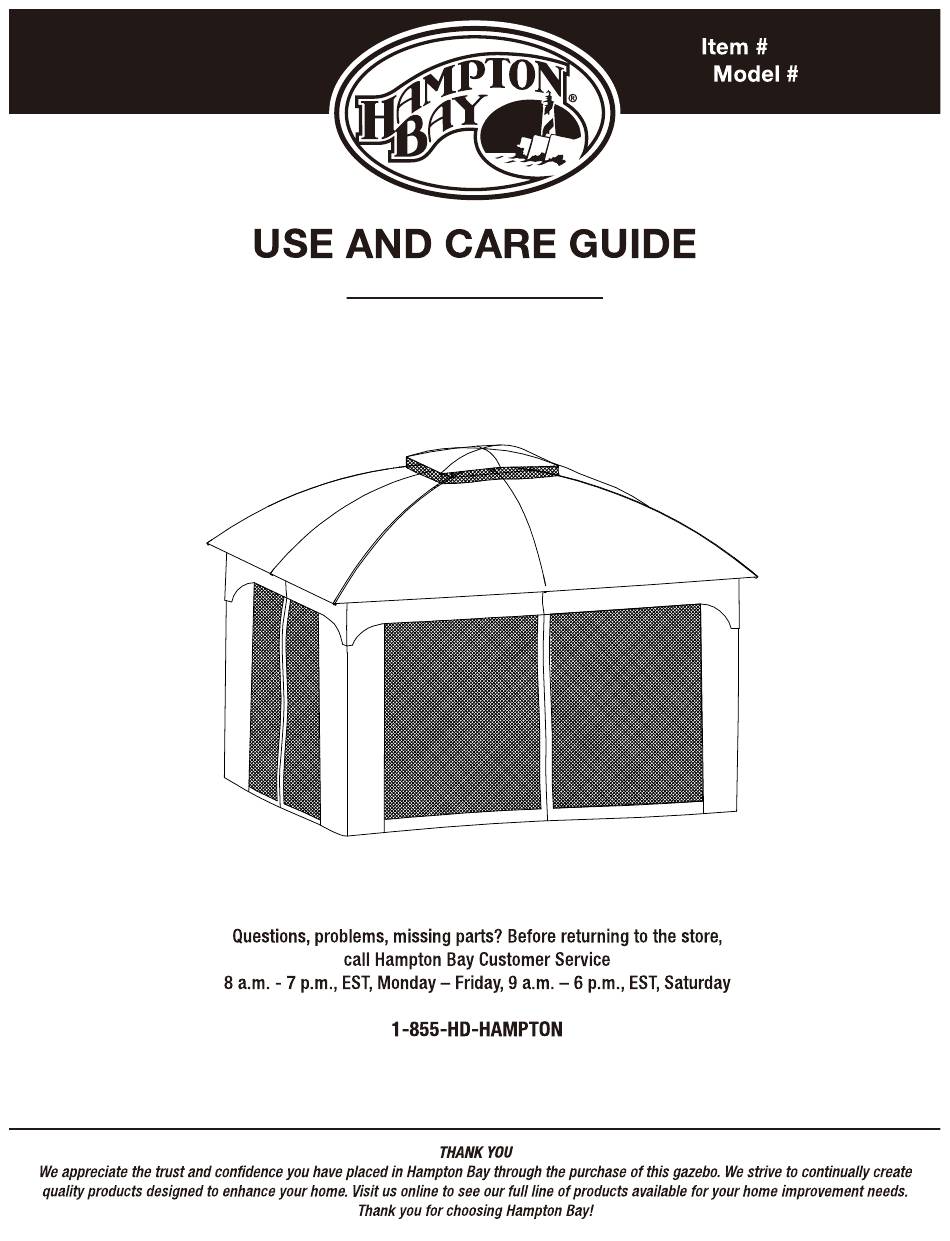

- Page 1 0000 000 000 FSC18015 10 FT. X 12 FT. SOLAR LED LIGHTED GAZEBO HAMPTONBAY.COM...
- Page 2 Package Contents ........4 Table of Contents ........2 Assembly.
-
Page 3: Maintenance
Maintenance REPLACING THE BATTERY NOTE: Use one Li-ion 18650 Lithium battery, 2000mAh, 3.7V rechargeable battery pack. For best performance, replace with a Lithium rechargeable battery pack after 470 times cycle use，normally every year, based on customers’ battery compartment base different using situation. battery compartment cover NOTE: To reduce the risk of damage to the electrical connections, exercise caution when separating battery... - Page 4 Post Short top bar Right short support bar Middle top bar Left short support bar Top center connector Left long support bar Right long Support bar Long top bar Corner bar...
- Page 5 Plug tenon Net Sidewall Solar plate Edge plug tenon Light Plug cover Ground stake Small Canopy Large Canopy Sidewall HAMPTONBAY.COM...
- Page 6 Take a left short support bar (C) and a right short support bar (B). Fix the short support bar (C and B) using plug tenon (K) and plug cover (M). Take a right long support bar (E) and a left long support bar (D). Fix the long support bar (E and D) using plug tenon (K) and plug cover (M).
- Page 7 Attaching the support bars to the post Connect the short support bar (B and C)/long support bar (D and E) to the post (A) using edge plug tenon (L) at each corner. Assembling the Top connector bar Insert the wire connector on long top bar (F) into the connector on top center connector (J).
- Page 8 Attaching the Top support bars to the post Link the corner bar (G) onto the post (A).
- Page 9 Attaching the Top support bars to the post HAMPTONBAY.COM...
- Page 10 Assembling the roof Put the small canopy (N) on top. Insert the wire connector on top center connector (J) into solar plate (R).then turn solar plate (R) and insert it into the slot of top center connector (J). Insert the wire connector on top center connector (J) into light (S).
- Page 11 Assembling the roof Place the large canopy (O) over the roof.Make sure the canopy edge is covering the tube. Secure the gazebo to the ground using the ground stakes (T). HAMPTONBAY.COM...
- Page 12 Preparing the sidewalls Hang the sidewall (P) around the four sides.
- Page 13 Preparing the sidewalls Hang the net sidewall (Q) around the four sides. HAMPTONBAY.COM...
- Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
