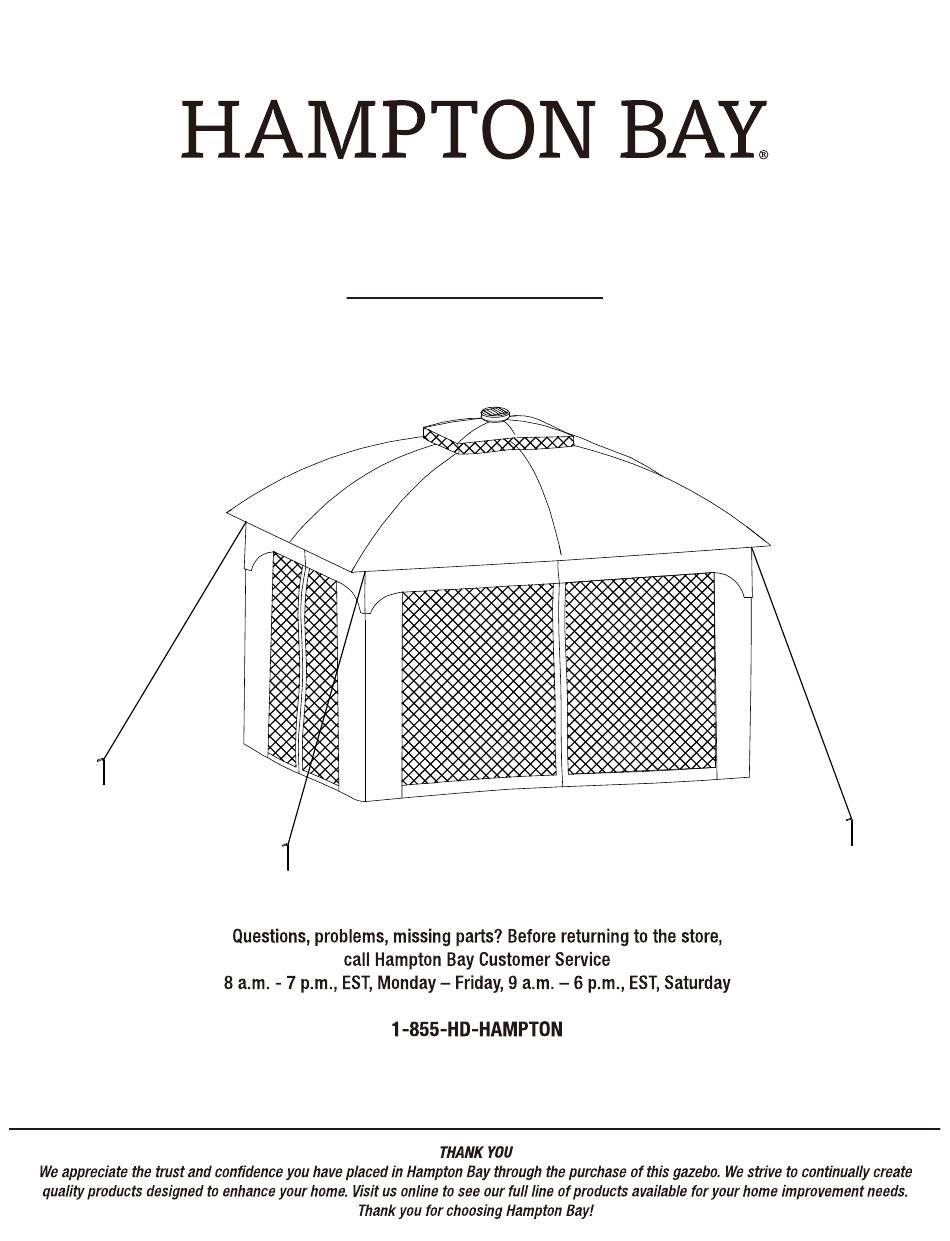

- Page 1 Item # 1004 815 945 Model #FSC18015-1 USE AND CARE GUIDE 10 FT. X 12 FT. SOLAR LED LIGHTED GAZEBO HAMPTONBAY.COM...
- Page 2 Package Contents ........5 Table of Contents ........2 Assembly.
-
Page 3: Maintenance
Maintenance REPLACING THE BATTERY NOTE: Use one Li-ion 18650 Lithium battery, 2000mAh, 3.7V rechargeable battery pack. For best performance, replace with a Lithium rechargeable battery pack after 470 uses; normally every year, based on individual usage. battery compartment base battery compartment cover NOTE: To reduce the risk of damage to the electrical connections, exercise caution when separating the battery screw... -
Page 4: Hardware Included
Phillips Screwdriver Safety Goggles Safety Hat Level Gloves Step Ladder HARDWARE INCLUDED Hardware shown to actual size. NOTE: Part Description Quantity M6x15 bolt Washer Ground stake Hex wrench Wrench... - Page 5 Short top bar Post Long support bar Middle top bar Short support bar Top center connector Long top bar Corner bar HAMPTONBAY.COM...
- Page 6 Light Small canopy Rope Large canopy Sidewall Fixed component Net sidewall Solar plate...
- Page 7 Assembling the long support bars Connect the two long support bars (B) using M6x15 bolts (AA), nuts (BB), washers (CC) and xed components (P). Assembling the short support bars Connect the two short support bars (C) using M6x15 bolts (AA), nuts (BB), washers (CC) and xed components (P). HAMPTONBAY.COM...
- Page 8 Attaching the long support bars to the posts Connect the long support bars (B) to the posts (A) using M6x15 bolts (AA) and washers (CC) at each corner. Attaching the short support bars to the posts Connect the long support bars (C) to the posts (A) using M6x15 bolts (AA) and washers (CC) at each corner.
- Page 9 Assembling the top connector bar Insert the wire connector on the long top bar (D) into the connector on the top center connector (H). Insert the long top bar (D) into the top center connector (H) until the marble pops up. Slide a short corner bar (E) onto the end of the long top bar (D) until the short corner bar (E) clicks into place.
- Page 10 Attaching the top corner bars to the posts Link the corner bar (E) with the top center connector (H) onto the post (A). Insert the other long top bars (D) with the short corner bars (E) into the top center connector (H) as Step 5. Link the corner bars (E) onto the posts (A).
- Page 11 Attaching the top bars to the support bars Link the short top bars (F) onto the xed support bars (B). Link the middle top bars (G) onto the xed support bars (C). NOTE: Suggested to stand on a ladder when assembling, as shown below.
- Page 12 Assembling the roof Put the small canopy (I) on top. Insert the wire connector on the top center connector (H) into the solar plate (M). Then turn the solar plate (M) and insert it into the slot of the top center connector (H). Insert the wire connector on the top center connector (H) into the light (N).
- Page 13 Assembling the roof Place the large canopy (J) over the roof. Make sure the canopy edge is covering the tube. HAMPTONBAY.COM...
- Page 14 Attaching the net sidewalls Hang the net sidewalls (L) inside the posts, around the four sides. Secure the gazebo to the ground using the ground stakes (DD).
- Page 15 Attaching the sidewalls Hang the sidewalls (K) outside the posts, around the four sides. Pass one end of the rope (O) around the post, tie a knot, and x the other end to the ground using the ground stakes (DD). HAMPTONBAY.COM...
- Page 16 Removing the canopy Remove the canopy from gazebo to avoid any damage in case of inclement weather such as wind, snows, stroms, or hail. NOTE: Suggested to stand on a ladder when removing, as shown below.
- Page 17 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
