Item #1001 845 561
Model #FCS80198CST

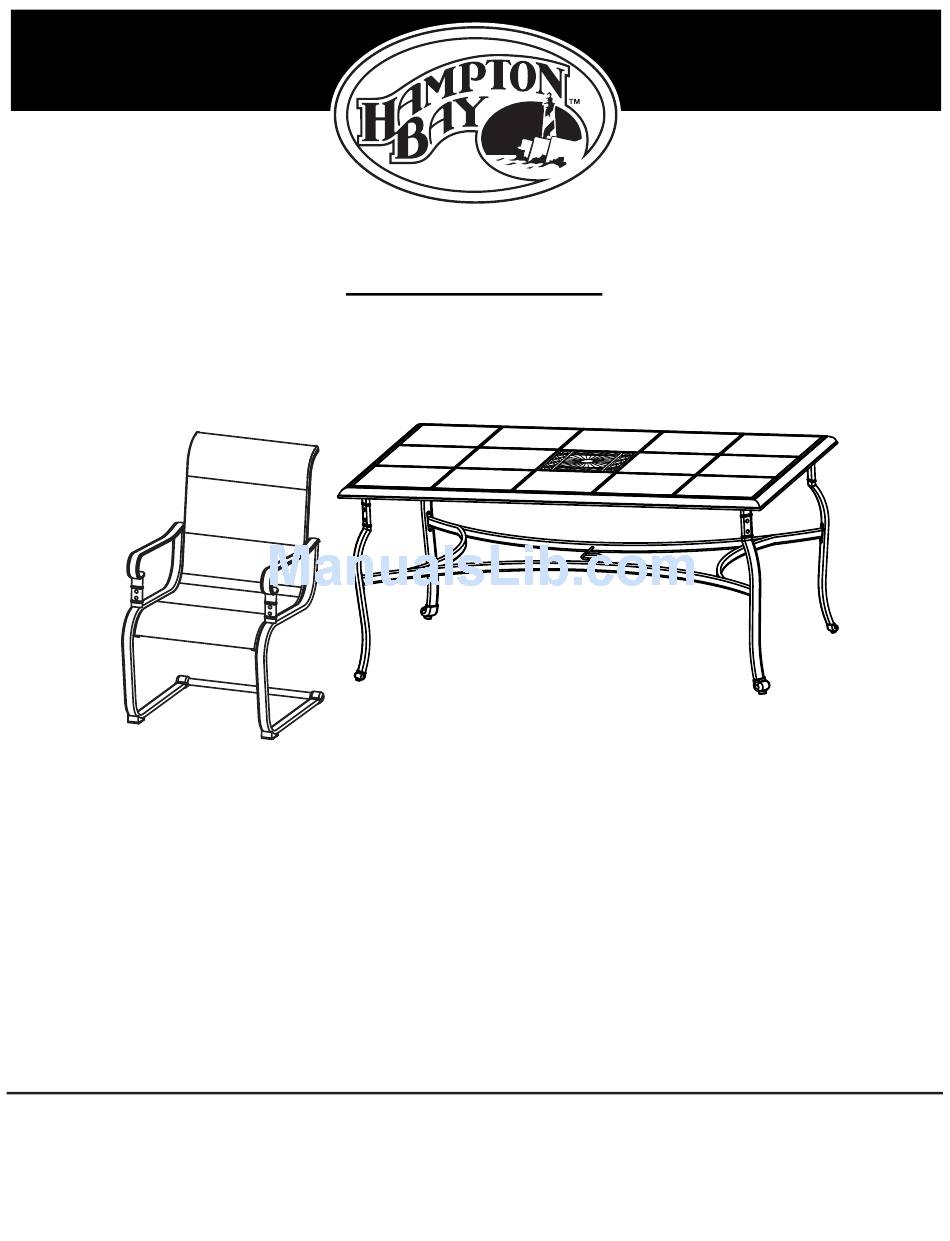

USE AND CARE GUIDE

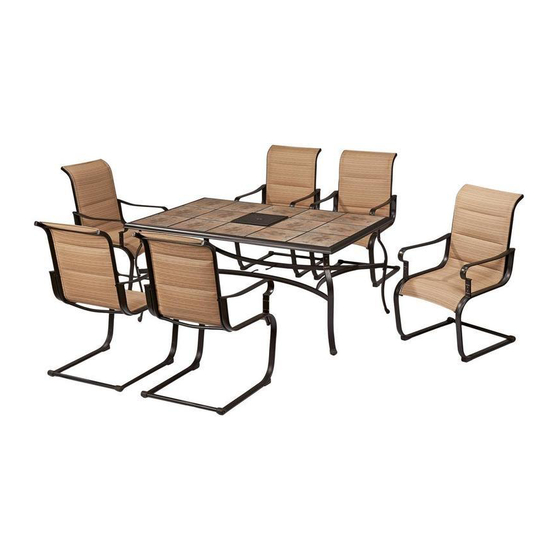

BELLEVILLE 7-PIECE C-SPRING DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCS80198CST and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY FCS80198CST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this dining set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
  • Page 2: Warranty

    Table of Contents Table of Contents ............2 Chair Assembly ............5 Warranty ................. 2 Table Assembly ............7 What is Covered ...............2 Care and Cleaning ............9 What is Not Covered ..............2 Pre-Assembly ..............2 Planning Assembly ..............2 Hardware Included ..............2 Chair Package Contents ............3 Table Package Contents ............4...
  • Page 3 Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Chair back Right arm Left arm Back bar HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 4 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Tile Stamped metal Table rim Leg connector Table leg...
  • Page 5: Chair Assembly

    Chair Assembly Connecting the chair back to the chair arms Attach the chair back (A) to the right arm (B) using M6x20 combination bolts (AA) and M6x30 combination bolts (BB), as shown below. Place the back bar (D) into the right arm (B). Repeat this step for the left arm (C).
  • Page 6 Chair Assembly (continued) Securing the back bar Attach the back bar (D) to the chair arms (B and C) using the M6x25 bolts (CC). Tighten all of the bolts. Check and ensure the chair is tightly assembled and stable before use.
  • Page 7 Table Assembly Connecting the table legs Place the table rim (G) upside down on a soft surface. Attach each of the table legs (I) to the table rim (G) with M6x20 Combination bolts (AA). NOTE: Loosely tighten all bolts using the hex wrench (EE). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 8 Table Assembly (continued) Connecting the leg connector to the table legs Align the holes of the leg connector (H) with the holes on the inside of each table leg (I). Attach the leg connector (H) to the table legs (I) using M6x15 combination bolts (DD). NOTE: Tighten all bolts using the hex wrench (EE).
  • Page 9: Care And Cleaning

    Table Assembly (continued) Adding the tiles Turn the table right side up. Ensure all connections are secure. Carefully place the tiles (E) and stamped metal (F) onto the table rim (G). NOTE: The stamped metal (F) can be replaced by the tile (E) if desired.
  • Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday HAMPTONBAY.COM Retain this manual for future use.
