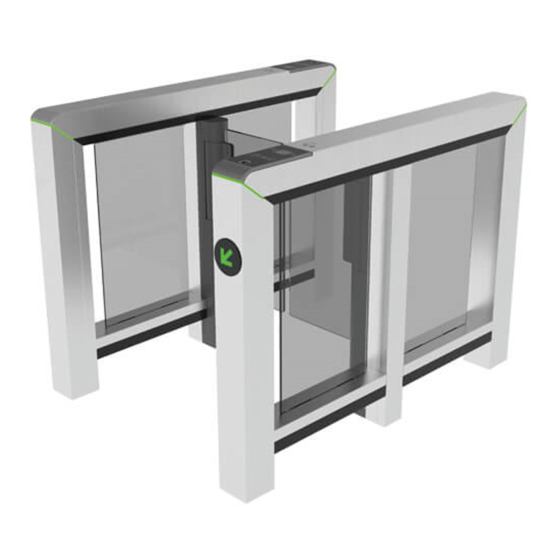

- Page 1 Installation Guide Mars-S1000/Mars Pro-S1000 Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
-
Page 2: Installation Requirements
1 Installation Requirements It is recommended that the swing barrier turnstile must be installed on a horizontal solid platform with a height of 50mm to 100mm. It is also recommended that the swing barrier turnstile should not be used in the corrosive environment. -
Page 3: Installation
3 Preparation To install the Mars-S1000/Mars Pro-S1000 you must have: A Screwdriver: To remove or install the screw on the device. A Pencil: To mark the device size and the screw hole. A Electric Drill: Drill holes according to the marked screw holes. - Page 4 Remove the screws fixing the top lid, and remove the top lid. 4 Installation ② ① Remove the side lid that hang on the device.
- Page 5 Mark the floor following the periphery of the legs. 60.00 853.00 60.00...
- Page 6 Take the turnstile aside and use the electric drill according to the drawn screw holes. Clean up the soil and dust after the drilling is completed, place the turnstile to the installation site again. Insert the M12 expansion screw and tighten it with a wrench.
- Page 7 Connect the online cables and perform the power-on test. If the test is OK, install the side lid and top lid of the device. 100.00 1033 120.00 120.00 Ethernet Power Line M12Expansion Tether Cable φ25mm PVC pipe Screw It is recommended that a warning line be marked on the ground after installing the device, so as to prompt the pedestrian to stand behind the warning line when verification.
- Page 8 10. If you need to assemble the swing arm by yourself, please refer to the diagram below for installation. ② ① Note: The swing arm is already installed in the factory.
- Page 9 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright 2021 ZKTECO CO., LTD. All Rights Reserved.
