Replacing the Model 200/201 Classic/Fireview Baffle
Before you proceed, please read through all of the instructions first. Confirm
that you have all of the necessary parts and tools. Allow about an hour to
complete the replacement. If you have questions, technical support is
available by calling 800-866-4344 from 9-5 ET, Monday-Saturday.
Tools Needed:
-1/2" wrench
-1/2" socket
-9/16" socket
-6"socket extension
-socket wrench
-putty knife
-wire brush
-ball peen hammer
-standard caulking gun
Recommended:
-work gloves
-safety glasses
-shop vac
1. Make sure the stove is cool.
2. Remove the top lid assembly from the stove. This lid is not fastened
down and will lift straight up and off.
3. If your stove has one, remove the stainless steel deflector from the cast
iron hood, using a 7/16" wrench or socket. Remove the cast iron
combustor hood by removing the two bolts using a 1/2" wrench or socket
on the top side of the baffle plate and another 1/2" wrench on the nuts on
the bottom side of the baffle plate. Remove the combustor and hood.
1
Materials:
W-101a Baffle (1)
W-301 Expanded Metal (1)
21092 5/16" gasket (6')
W-2489 Eyebolt & Nut (2)
W-1800 Furnace Cement (1 tube)
21870 3/16" gasket (2')
3" self adhesive gasket
W-1605a Gasket glue (1 bottle)
21085 1/4" gasket (15")
W-2569 5/16" x 1" SS bolt (2)
W-2558 5/16" SS hex nuts (2)
W-2559 5/16" flat washer (4)
Advertisement
Related Manuals for Woodstock Soapstone Classic 200
Summary of Contents for Woodstock Soapstone Classic 200

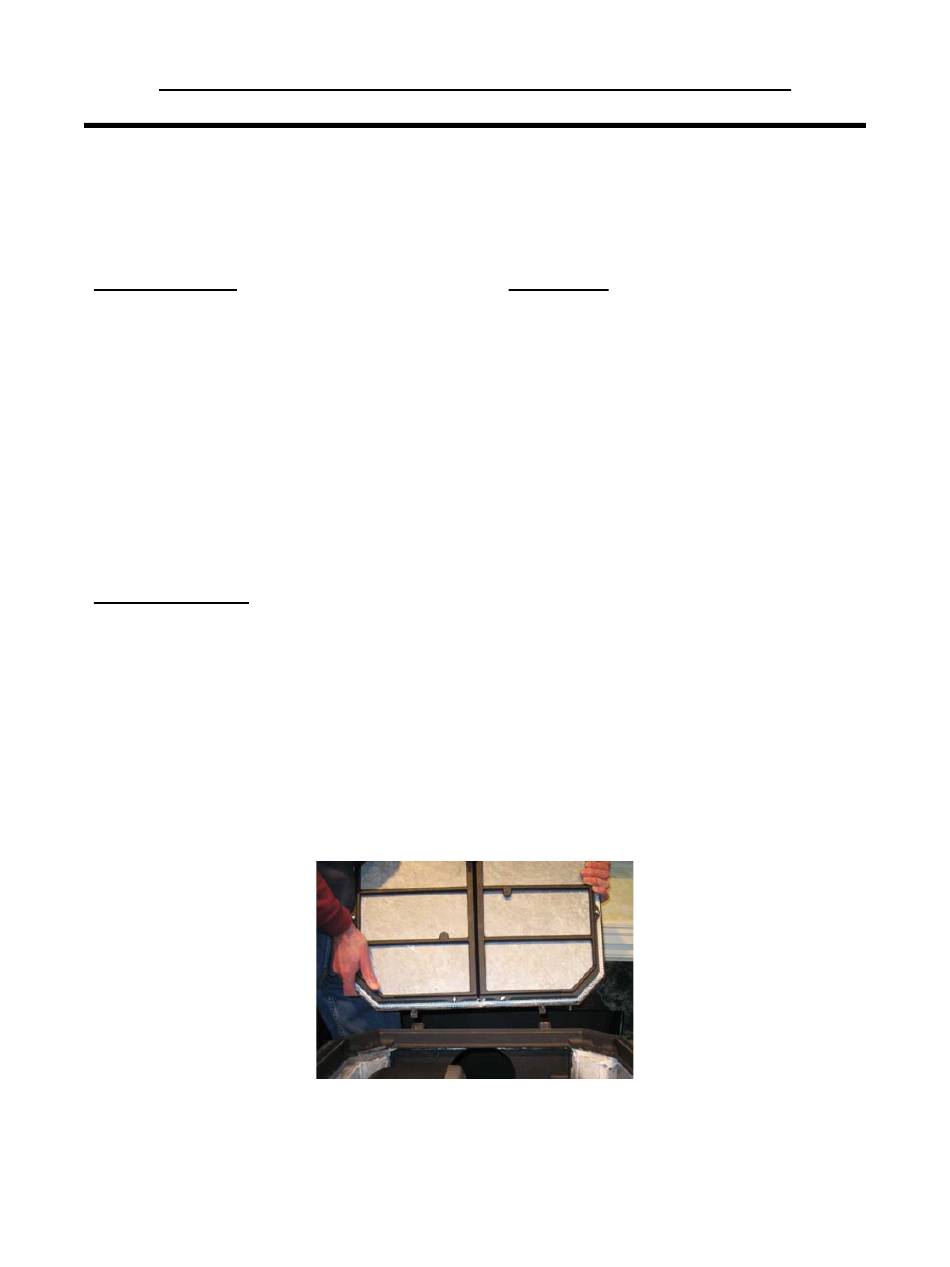

- Page 1 Replacing the Model 200/201 Classic/Fireview Baffle Before you proceed, please read through all of the instructions first. Confirm that you have all of the necessary parts and tools. Allow about an hour to complete the replacement. If you have questions, technical support is available by calling 800-866-4344 from 9-5 ET, Monday-Saturday.
