For over two centuries, New Englanders have heated their homes with soapstone stoves. A properly in-
stalled and operated soapstone stove will warm your home and delight your eye for a lifetime.
Read this entire manual carefully. It explains how to install your Woodstock Soapstone Progress Hybrid
Wood Stove safely and how to operate it correctly and efficiently. The clearances and procedures
recommended in this guide are in compliance with the recommendations of the National Fire Protection
Association (NFPA), the Underwriters Laboratories (UL), and the U. S. Environmental Protection Agency
(EPA). You may feel some of them are very stringent, but they should be followed. They were designed to
protect you, your home, and the environment. Improper installations are a major cause of serious fires.
Failure to follow instructions may result in property damage, bodily injury, or death.
Before installing a woodstove, check your local building codes and any requirements established by your
insurance company.
You may need a local building permit to install your stove. Any changes in your home must comply with
building codes. If the codes have not been fully updated, you may want to check with the Building
Inspection Department or your local Fire Department. A qualified stove installer should be aware of any
changes and updates to local and state codes and may be best suited to handle
your installation work.
Many chimney sweeps are qualified installers. If you are unfamiliar with
sweeps or need to locate a certified sweep in your area, you can check listings at
www.csia.org (Chimney Safety Institute of America). Builders and contractors
are another option. In some cases, homeowners install their own stoves. Before
installing your stove, please review carefully the stove installation, clearance,
and safety information in this manual. Woodstock Soapstone has NFI (National
Fireplace Institute) certified woodburning specialists on staff and available to
answer any questions you may have about your installation. If you have
questions, please call us toll free at 1-800-866-4344.
You should notify your insurance company that you are using a woodstove.
Before you light your first fire, have a local building inspector and your
insurance representative inspect, and approve in writing, your installation.
THE PROGRESS HYBRID IS NOT APPROVED FOR INSTALLATION IN MOBILE HOMES.
LOCATION
A stove which is centrally located will heat the greatest area of your home. Heat should be able to circulate
easily into nearby rooms. Placing your stove near an open stairway or register in the floor will help transfer
heat to other rooms.
Other installation considerations are:
•Clearance to Combustibles
•Adequate Space for Wood Loading and Ash Removal
•Room Traffic Patterns
Most people install their stove in a room they use frequently where they can enjoy the beauty and comfort
of the stove. This also helps in ease of the monitoring and reloading the stove as needed.
A well-planned placement will enhance your enjoyment of your stove and may save installation costs.
The Model 209 Progress Hybrid Woodstove is not approved for an alcove installation. An alcove is described
as an area less than 512 cubic feet, which is equivalent to an 8'x8'x8' space.
ALCOVE INSTALLATIONS

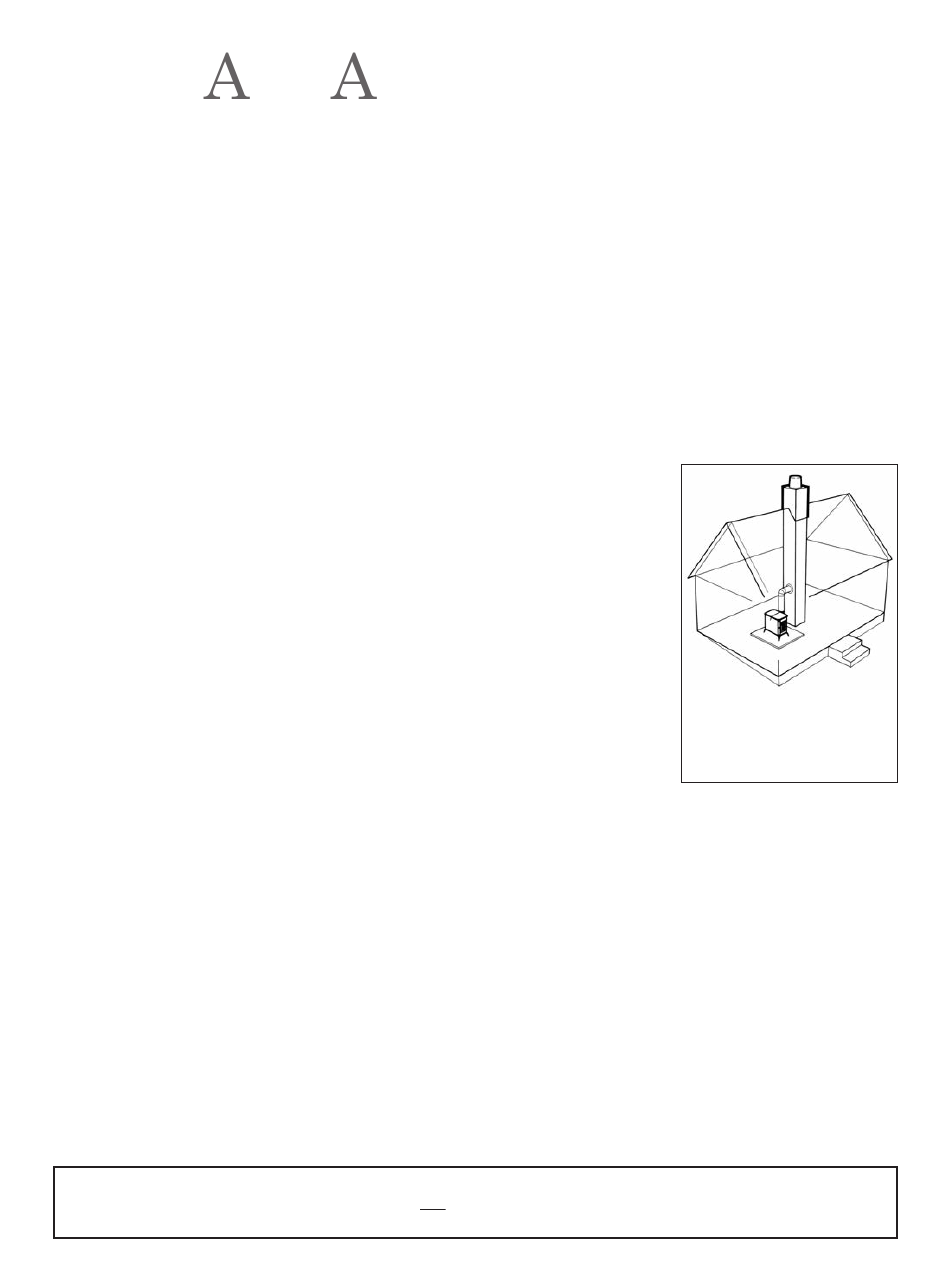

1
The best location for a chimney and
woodstove is in the center of the
house. The chimney will be warmer,
draft will be better, and radiant heat
will be distributed more evenly.
Advertisement
Related Manuals for Woodstock Soapstone PROGRESS Hybrid
Summary of Contents for Woodstock Soapstone PROGRESS Hybrid
- Page 1 A well-planned placement will enhance your enjoyment of your stove and may save installation costs. ALCOVE INSTALLATIONS The Model 209 Progress Hybrid Woodstove is not approved for an alcove installation. An alcove is described as an area less than 512 cubic feet, which is equivalent to an 8’x8’x8’ space.
-
Page 2: Chimney Types
2x the cross-sectional area of the flue collar. Recommendation: The Progress Hybrid has a 6 inch flue collar, thus an 8 inch x 10 inch rectangular or 10 inch round flue tile for an inside chimney are the maximum flue sizes we recommend for this stove. For an outside chimney, an 8 inch x 8 inch square or 8 inch round would be the largest acceptable. - Page 3 Listed wall passing through a combustible wall. For more information on these kits, protector & please contact Woodstock Soapstone Company. Please note: there are several cover shield UL listed wall pass through kits available, always follow the manufacturers specific installation instructions. (See Diagram C Below)
- Page 4 Chimney Connection used with fireplace inserts or factory built fireplaces. These ARE NOT suitable for use with your Woodstock Soapstone stove. At the point of the first penetration of a combustible surface (i.e., wall or ceiling) all subsequent venting components need to be prefabricated “UL Type HT Class A”. If your prefabricated chimney goes through a living space it must be enclosed, and that enclosure must conform to clearance standards for the prefab- ricated chimney.
-
Page 5: Fireplace Installation
FIREPLACE INSTALLATION Your Model 209 Progress Hybrid Woodstove has the option of short legs to make it more adaptable to venting through an existing fireplace. The short legs lower the height of the stove by 5 inches. The center- line height of the rear flue exit drops from 27.75”... -
Page 6: Floor Protection Requirements
& cap. FLOOR PROTECTION REQUIREMENTS Your Woodstock Soapstone stove must be set on an approved hearth or floor protection. The hearth protects your floor from two hazards: • Heat Transfer: Heat radiation from the bottom, front, and sides of the woodstove •... - Page 7 K Values cannot be added, convert to R value before adding multiple layers. *The R Value of the hearth pad can be reduced down to 0.40 with the use of the Progress Hybrid Ash Lip EXCEPT WHEN USING THE SHORT LEGS.
- Page 8 Hearth Sizing: Clearances for your 209 Progress Hybrid stove on the front, back and sides must be taken into considera- tion when determining the placement and size of your floor protection. Vertical dimensions can be added to horizontal dimensions on all but the loading door side to equal the clearances needed to a combustible floor surface.
-
Page 9: Wall Protection
Progress Hybrid shown above If using the optional Short legs and Ash Lip A= 70” WALL PROTECTION The Model 209 Progress Hybrid stove has been tested to UL standards for clearances to combustible walls. The minimum clearances to unprotected walls are as follows: Minimum clearances with no heat shields to unprotected combustible walls: From the back-------------------36”... - Page 10 67.5” Note: Wall shield size will vary de- Required pending on distance between stove Height and wall. 12” Clearance Table For Model 209 PROGRESS Hybrid Type of Installationu Top Vent Rear Vent Rear Vent with elbow Stove Sides Clearance Clearance...
- Page 11 CLEARANCE INSTALLATION DIAGRAMS 1) Parallel Installation, Single Wall Pipe, Top Vent NO HEAT SHIELD A. Back of stove to wall = 36” D. Side of stove to wall = 24” B. Back of pipe to wall = 18” E. Side of pipe to wall = 36”...
- Page 12 CLEARANCE INSTALLATION DIAGRAMS 3) Corner Installation, Single Wall Pipe, Top Vent TOP VENT NO HEAT SHIELD A. Stove corners to side walls = 36” (determines placement) B. Pipe to side walls =18” C. Pipe to corner =18” WITH REAR HEAT SHIELD & PIPE SHIELD ATTACHED A.
- Page 13 SETTING UP YOUR STOVE Your Model 209 Progress Hybrid Wood stove has been shipped fully assembled except for five parts: 1) The stove legs 2) A.The bottom heat shield (if no ash pan) or B. Optional ash pan 3) The flue collar/cover plate 4)The rear heat shield 5) Loading door handle.
- Page 14 (3) How to attach the Progress flue collar & cover plate: Your Progress Hybrid will arrive with the flue collar pre-installed on the rear exit and the cover plate on top of the stove. The flue collar and cover plate are interchangeable. If you prefer to top vent your stove, please follow the steps below.
