Woodstock Soapstone Keystone Replacement Manual

Ash door handle replacement

Hide thumbs Also See for Keystone:

Keystone/ Palladian Ash Door Handle Replacement

Please read all of the instructions before you begin the procedure. Confirm

that you have all of the necessary tools and materials. If you have any

questions, technical support is available at 1-800-866-4344, Monday –

Saturday 9:00 – 5:00, ET.

Tools Needed:

- (2) 7/16' wrench or wrench and socket

- 3/8" wrench

- 3/32" Allen wrench

- Ash door handle part #W-237

- ¼-20 x 1" bolt

- ¼-20 nut

- Wave washer

1. Make sure the stove is cool.

2. Open the ash door and remove the original handle using a 7/16" wrench. It may be

helpful to use a wrench on both the bolt head and nut.

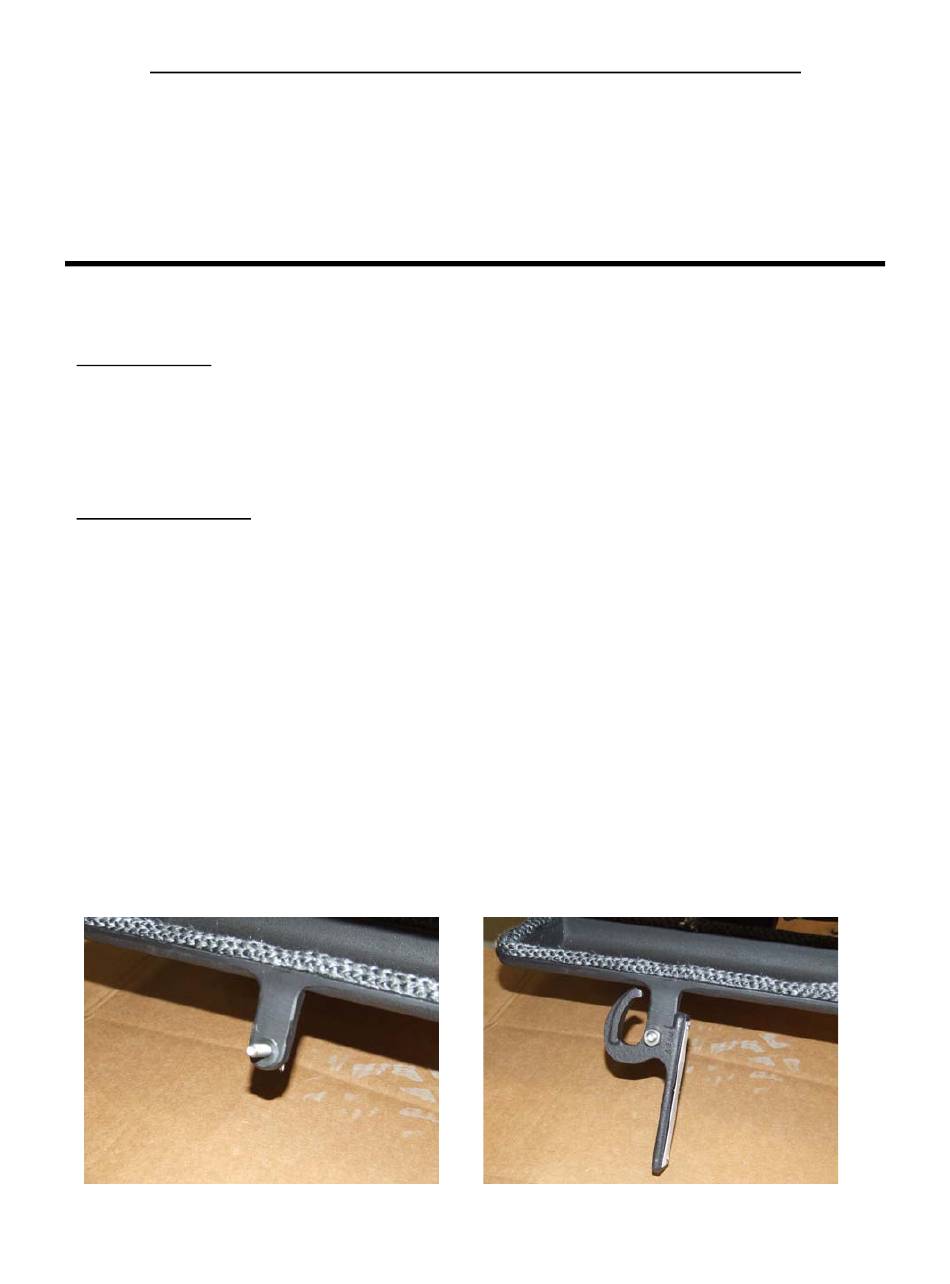

3. Insert the 1/4-20 X 1" bolt up through the tab in the door, through the wave washer

and then thread it into the new handle.
