Woodstock Soapstone Fireview 205 Installation Manual

Model 205 Fireview Rear Heat Shield Installation

Please read all of the instructions before you begin the procedure. Confirm that you have
all the necessary tools and parts required. If you have any questions, technical support is
available toll free at 1-800-866-4344, Monday – Saturday 9:00- 5:00, ET.

Tools Needed:

-7/16" wrench
- 5/32" allen wrench

Materials Needed:

- Fireview rear heat shield Part# W-405 or W-406 (to accommodate an outside air
adapter)
- (2) 1" spacers
- (2) 1 ¼" bolts
The rear heat shield is designed to reduce the required clearance to combustibles behind
the Fireview stove from 30 inches to 18 inches, in a parallel installation, or 12 inches
from the rear corners of the stove to the side walls in a corner installation. Pipe clearances
must be maintained as well, and can be reduced with a separate pipe shield, close
clearance pipe, or appropriate wall shielding. Do not paint the interior of the heat shield;
to be most effective it must remain reflective.
Note: If you are installing the rear heat shield in addition to an outside air adapter, one
bolt and spacer included with the shield will replace the button head bolt that secures the
left side of the adapter to the stove.
1. Make sure the stove is cool.

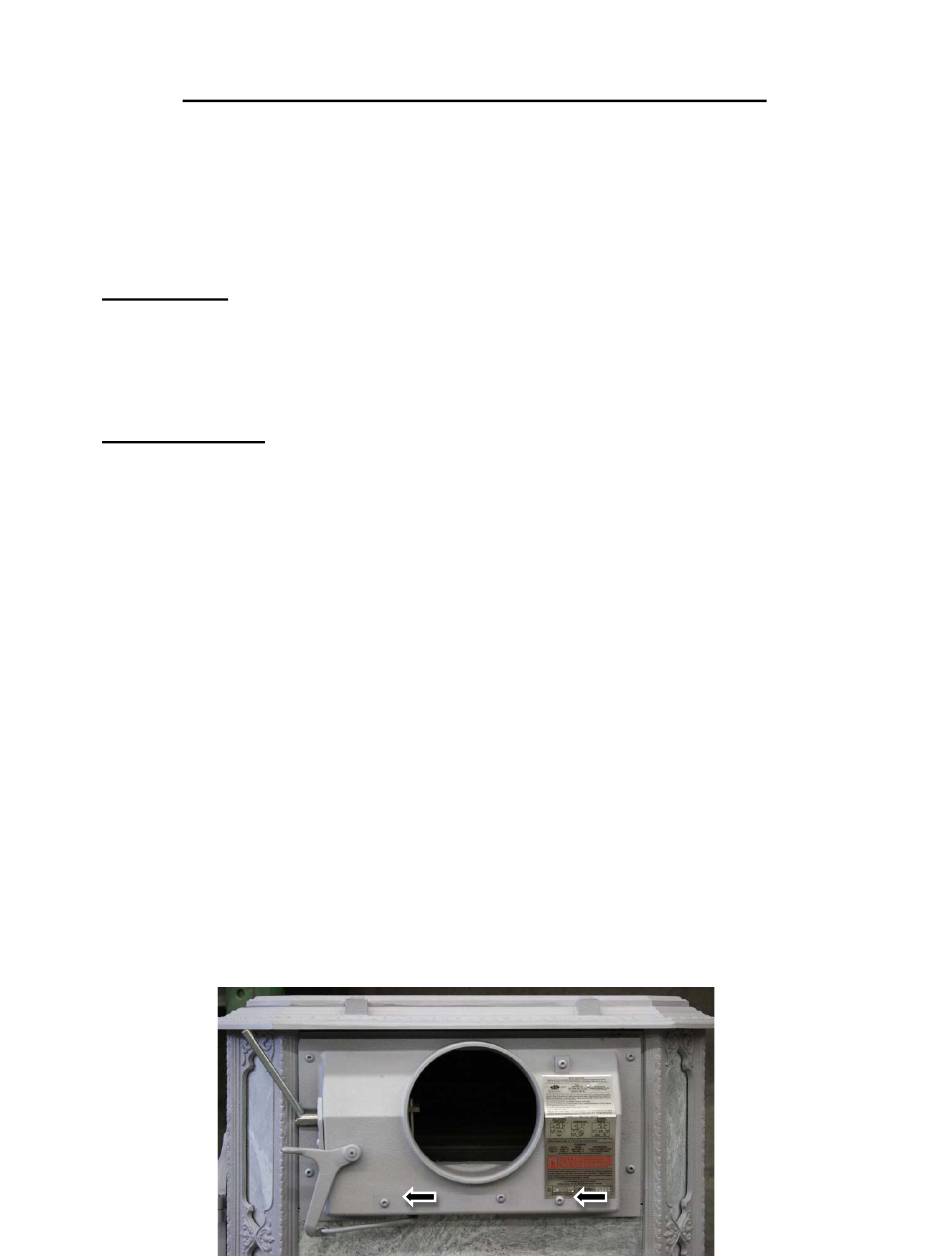

2. Remove the two outermost button head bolts from the back of the flue collar with the
5/32" allen wrench.
