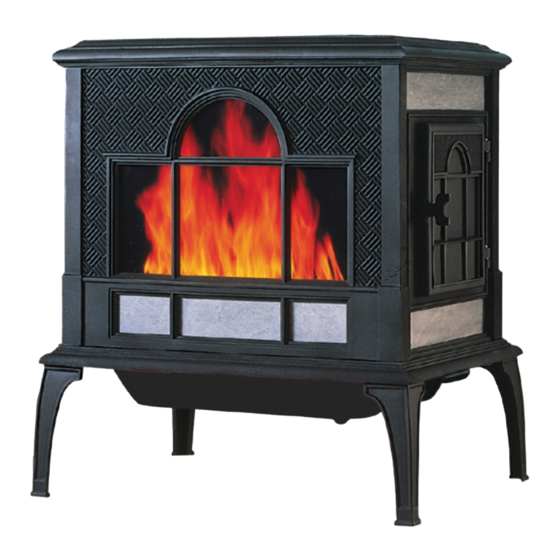

Woodstock Soapstone Keystone Assembly Instructions

Top assembly

Hide thumbs Also See for Keystone:

Table of Contents

Download this manual

Keystone/ Palladian Top Assembly

Please read all of the instructions before you begin the procedure. Confirm that you have

all of the necessary tools and materials. If you have any questions technical support is

available toll free at 1-800-866-4344, Monday through Saturday 9:00 – 5:00 E.T.

These instructions can be used for gasket replacement as well as top stone replacement.

The appropriate materials will be provided depending on the circumstance.

Tools Needed:

- 5/32" Allen wrench

- 7/16" wrench or socket

- ½" wrench

- Putty knife

- Wire brush

- Materials included will depend on the procedure being performed. Replacement stone,

gaskets, and gasket glue may be required.

1. Make sure the stove is cool

2. Disconnect connector pipe from the flue collar

3. Remove the four allen head bolts that hold the cover plate in place, and remove

the cover plate, to access the catalytic combustor. The cover plate may be located

on the stove top or at the back of the stove.

4. Use a 7/16" wrench to remove the bolt that attaches the heat shield to the

combustor assembly. Remove the heat shield from the stove.

Table of Contents

Do you have a question about the Keystone and is the answer not in the manual?

Page 1 Keystone/ Palladian Top Assembly Please read all of the instructions before you begin the procedure. Confirm that you have all of the necessary tools and materials. If you have any questions technical support is available toll free at 1-800-866-4344, Monday through Saturday 9:00 – 5:00 E.T.
Page 2 5. If you have not already done so, use a ½” wrench to remove the shipping bolts that hold the combustor assembly in place. These bolts are only necessary when the stove is being transported and do not need to be replaced. 6.
Page 3 8. The top is now free from the stove. It is very heavy and care should be taken while removing it from the stove. Place it upside down on a suitable work surface. 9. If you are replacing the gasket on the bottom side of the clamp frame, remove the existing gasket and clean any remaining debris from the gasket channels.
Page 4 13. Remove the desired stone. Remove the gasket that protects the stone from the top, and clean any residue from the gasket channel. 14. Apply a very small bead of gasket glue to the channel, and set the new gasket in place.
Page 5 20. Install the cover plate and connector pipe. 21. Enjoy your stove. We need your help! Woodstock Soapstone Co. takes pride in providing the highest quality products as well as the best customer service in our industry. We welcome your suggestions and input to help us achieve these goals.
