The Tjernlund Cool Breeze™ Garage Fan (Model CB14) pulls hot air from
the garage ceiling and exhausts it into the garage attic where it then can
flow out of the ridge, roof or gable vents. Outdoor air replaces the hot
exhausted air lowering air temperatures and reducing the thermal heat gain
of the garage's floor, structure and contents. The fan can also be used to
exhaust non-combustible contaminants from the garage.
The CB14 comes with an adjustable temperature activation switch for sim-
ple, automatic operation. It can also be wired for manual or automatic oper-
ation. Other controls are available and sold separately.

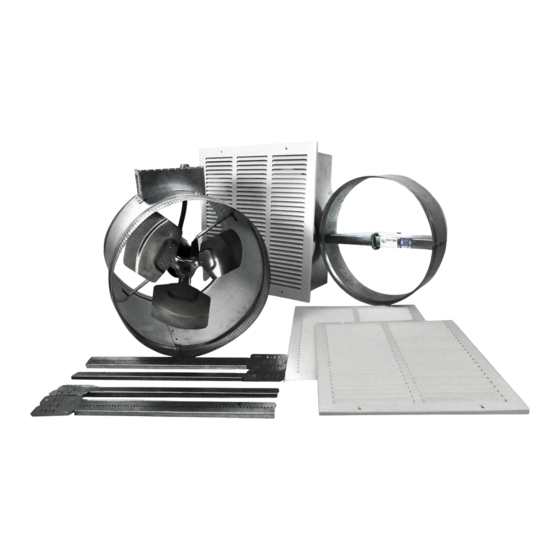

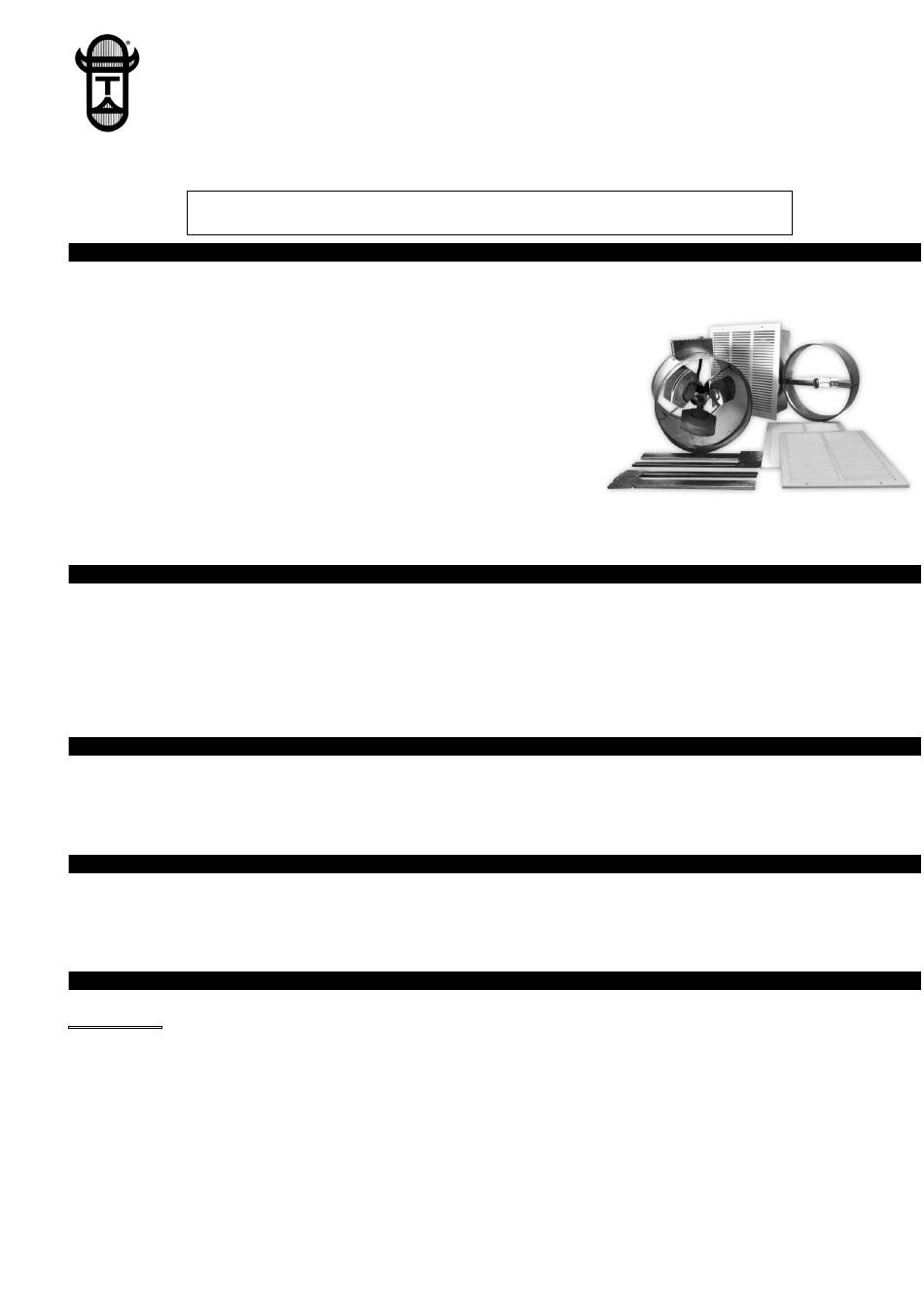

Included in the CB14 is the fan assembly, intake plenum, ceiling radiation
damper, fan intake grille, (2) outdoor intake grilles, mounting brackets and
hardware packet with instructions.
Blower:
1200 CFM
Motor:
120 VAC ~ 60 Hz
2.17 Amps maximum
Impeller:
30 degree, steel
Each Cool Breeze™ Garage Fan is electrically factory line tested before shipment. After opening carton, inspect thoroughly
for shipment damage. Fan should rotate freely and all electrical wires and connections should be secure. If any damage is
found, notify freight carrier and your distributor immediately and file a concealed damage claim.
The CB14 can be wired to be controlled manually by a wall switch (not included), by the included temperature switch, or
both. Also available from Tjernlund are wall mount timers (P/N 950-9300) and wireless wall switches (P/N SWS). Contact
Tjernlund for more information on these controls.
WARNING
The CB14 must be installed by a qualified installer in accordance with these instructions and all local codes or in their
absence in accordance with the latest editions of the International Residential Code, International Electrical Code or prevail-
ing local codes. Improper installation can create a hazardous condition such as fire, electric shock or personal injury.
To reduce these risks significantly, use this unit only in the manner intended by the manufacturer. If you have questions,
contact Tjernlund Products. Always disconnect the unit from its power source before installation and servicing.
CAUTION: For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
©2013 TJERNLUND PRODUCTS, INC. ALL RIGHTS RESERVED
Cool Breeze™ Garage Fan Model CB14

DESCRIPTION

SPECIFICATIONS

Temperature Switch:
Ceiling Radiation Damper:
Grilles:

GENERAL INFORMATION

OPERATION

Adjustable from 90F to 130F
3 Hour, 212F fusible link
(1) 18" x 18"
(2) 12" x 12"
P/N: 8504203
