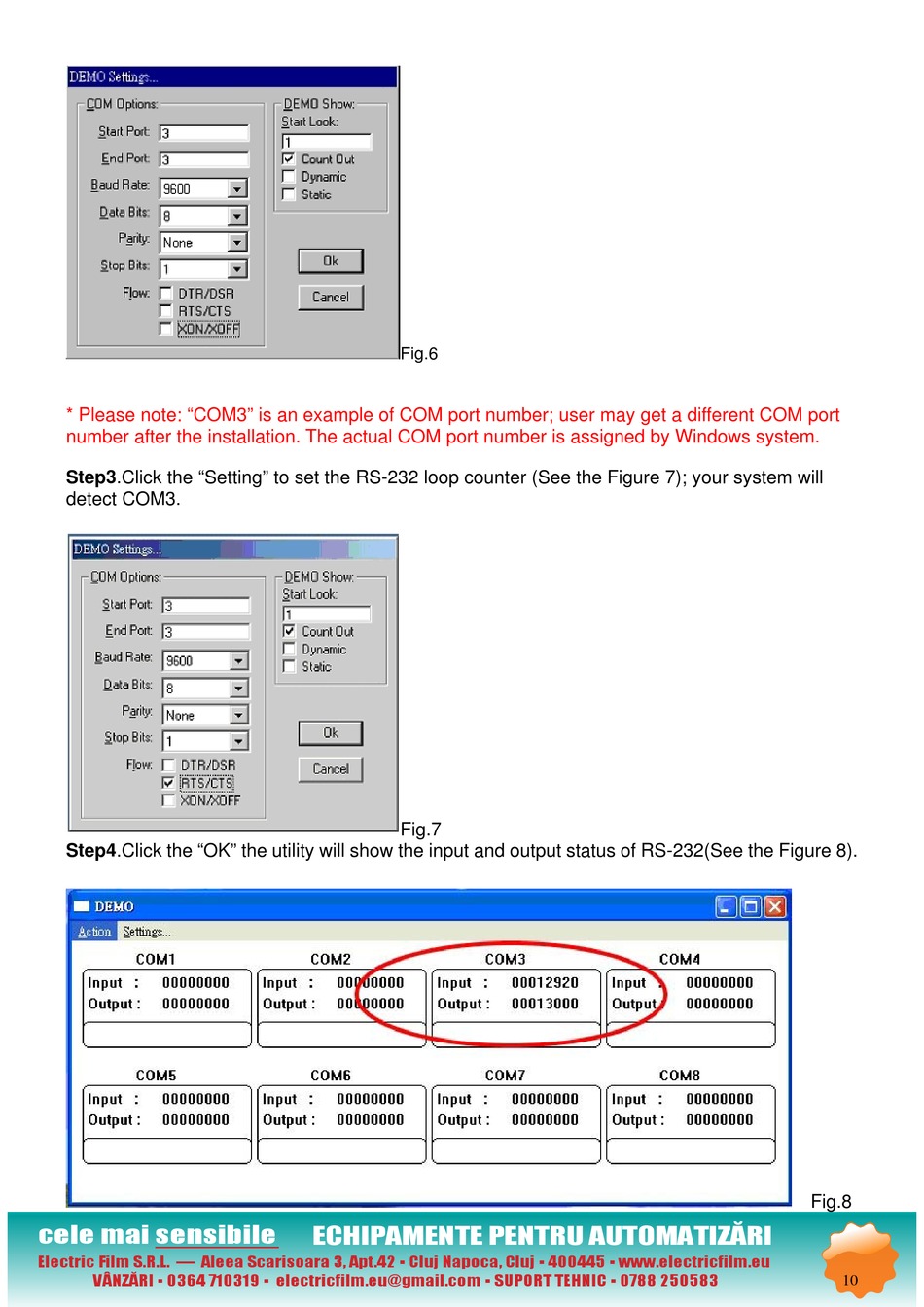

Trycom Technology TRP-C08 User Manual page 10

* Please note: "COM3" is an example of COM port number; user may get a different COM port
number after the installation. The actual COM port number is assigned by Windows system.
Step3.Click the "Setting" to set the RS-232 loop counter (See the Figure 7); your system will
detect COM3.
Step4.Click the "OK" the utility will show the input and output status of RS-232(See the Figure 8).
cele mai sensibile
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583
Fig.6
Fig.7
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Fig.8
