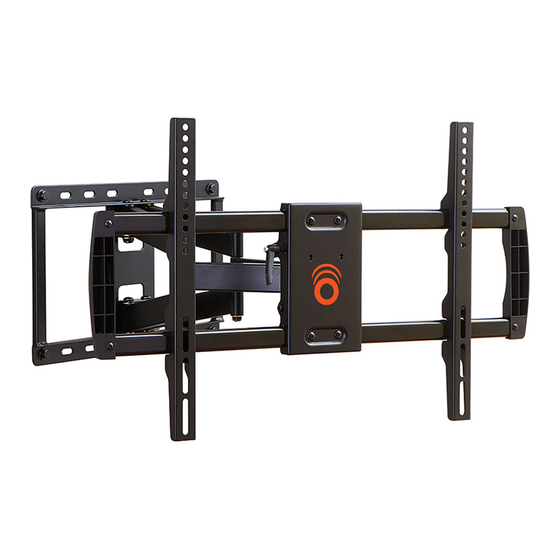

Echogear EGLF1 Quick Start Manual

FULL-MOTION
TV WALL MOUNT
For 37"-70"
(93.9-177.8 cm)
TVs
Model EGLF1
Tools:
Stud Awl or Pencil Level
Finder Thin Nail
7/32 in. 1/2 in.
Drill
(5.5 mm) (13 mm)
Wood
1-1 Select TV Screw Diameter 1-2 Select TV Screw Length
Hand thread screws into the threaded inserts
If your TV has a flat back AND you want your TV closer to
on the back of your TV to determine which
the wall, use the shorter screws (A).
screw diameter (M4, M6, or M8) to use.
Use the spacers and longer screws (B) to accommodate:
M4 M6 M8
A
Does your TV weight more
than 132 lbs. (60 kg) including
accessories?
No — Perfect!
Yes — This mount is NOT compatible.
WARNING:
capacity can result in serious personal injury
or damage to equipment! It is the installer's
responsibility to make sure the weight of the
TV (with accessories) does not exceed 132 lbs
(60 kg).
WARNING:
This
Arm and
product contains small
Wall Plate
items that could be
a choking hazard if
swallowed.
Before starting
assembly, verify all
parts are included and
01 x1
undamaged. If any parts
are missing or damaged,
Arm Extensions
do not return the
damaged item to your
02 x2
dealer; contact Customer
Service. Never use
damaged parts!
x2
03
• Round/irregular back TVs
• TVs with inset mounting holes
• Extra space needed for cables
B
FLAT BACK ROUND BACK INSET HOLES CABLES
What is your wall made of?
132 lbs.
(60 kg)
Perfect!
Exceeding the weight
?
Call Customer Service:
1-855-428-2490
Hardware
Lag Bolts
Extension Screws
5/16 x 2¾ in.
TV Bracket
08
M6 x 12mm
Lag Bolt
06 x4
Washers
End Cap and
End Caps
Bracket
09
Clip Screws
Hex Key
M5 x 12mm
x2
05 10
04 x2
07 x8
1-3 Attach the TV Bracket
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
Position your TV bracket
hardware selection,
contact Customer Service configuration (A or B)
at 1-855-428-2490.
over your TV hole pattern
- making sure the bracket
CAUTION:
is centered over the TV
Verify adequate thread
hole pattern and level.
engagment with the screw or
Secure bracket using your
screw/spacer combination.
screw/washer (Flat Back)
-
Too short will not hold the TV.
or spacer/screw/washer
-
Too long will damage the TV.
(Round Back / Extra
Space) selection.
CAUTION:
Too Short Ensure
TV bracket is securely
fastened before moving
on to the next step.
Correct
Too Long
Please read through these instructions completely to be sure you're comfortable with this
easy install process. Also check your TV owner's manual to see if there are any special
requirements for mounting your TV.
Drywall with
If you do not understand these instructions or have doubts about the safety of the
wood studs?
installation, assembly or use of this product, contact Customer Service at 1-855-428-2490.
CAUTION:
Avoid potential personal injuries and property damage!
● This product is designed for use in wood stud walls - DO NOT install into drywall
alone
● The wall must be capable of supporting fi ve times the weight of the TV and mount
combined
● Do not use this product for any purpose not explicitly specifi ed by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly
or use
TV Screws
TV Screws
M4 x 12mm
M4 x 35mm
x4
11 x4
16 x4
M6 x 12mm M6 x 35mm
12 x4
15 x4
x4
M8 x 16mm M8 x 20mm
x1
13 x4 14 x4
A
05
B
05
TV Washers
M4/M5
M6/M8
Bracket
Spacers
Clips
18 x4
19 x4
20 x4
21 x2
M8 x 35mm
17 x4
11 12
13 14
18 19
05
15 16
17
18 19
05
20
