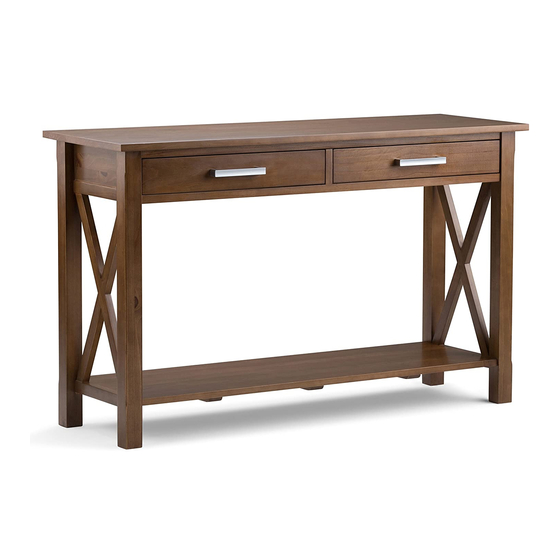

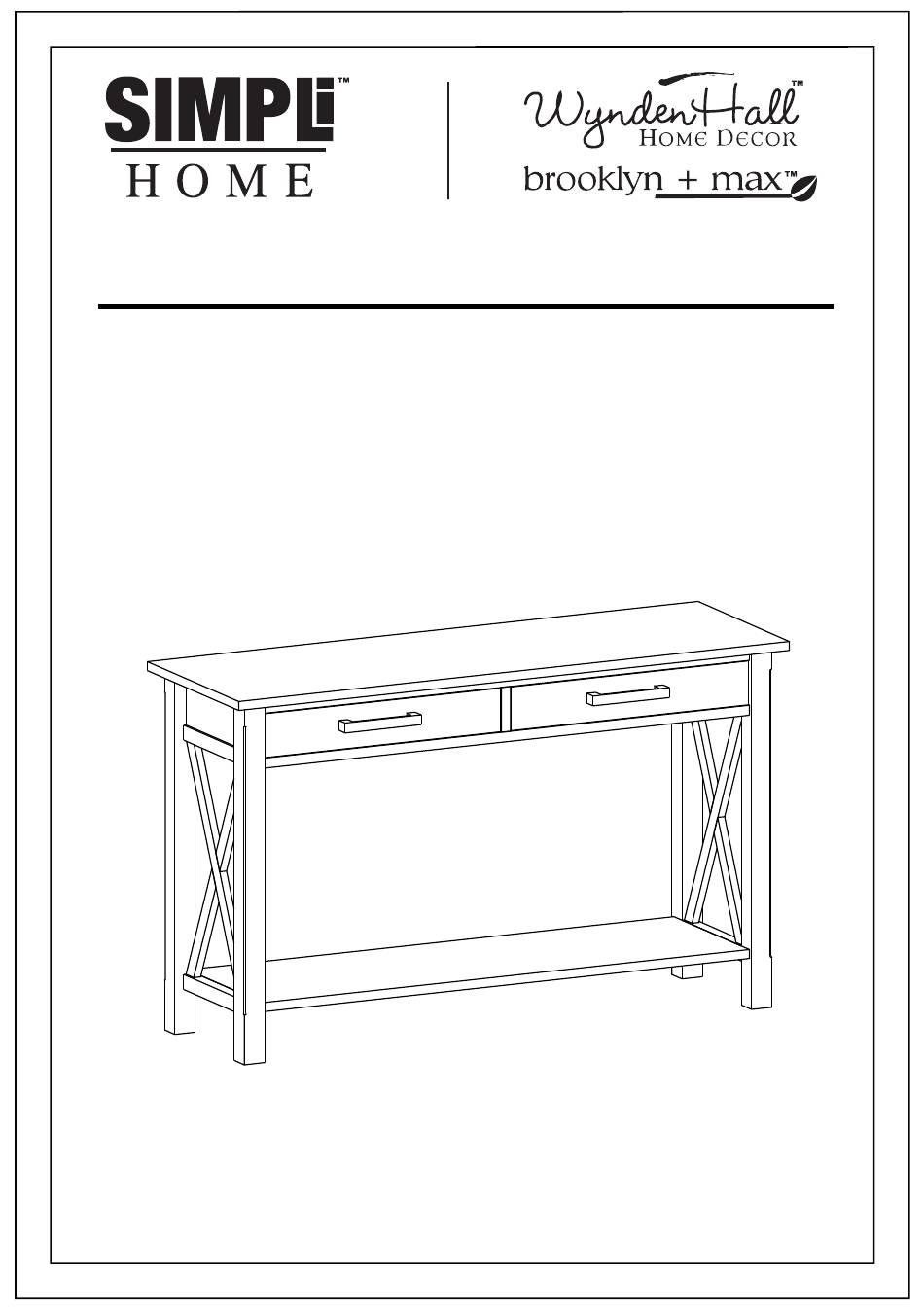

- Page 1 KITCHENER / WATERLOO / PROVIDENCE CONSOLE / SOFA TABLE MODEL # 3AXCRGL0 03-SB 1/14...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/14...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 5 PRE ASSEMBLY INFORMATION MODEL # 3AXCRGL003-SB PARTS DESCRIPTION SIDES BACK PANEL QTY 1 QTY 1 PAIR QTY 1 BOTTOM SHELF DIVIDER FRONT BAR QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM DRAWER SIDE DRAWER FRONT QTY 2 QTY 2 QTY 2 PAIRS QTY 2 NEED HELP? For help with assembly or if you are missing a part,...
-
Page 6: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # 3AXCRGL003-SB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm ALLEN KEY CAM LOCK QTY 1 QTY 15 QTY 14 SETS WOOD DOWEL HANDLE Ø 8 X 30 mm M4 X 25 mm QTY 18 QTY 2 SETS Required -... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # 3AXCRGL003-SB 7/14...
- Page 8 ASSEMBLY MODEL # 3AXCRGL003-SB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front G . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides H . 3. Insert 2 Cam Lock 2 into pre-drilled holes on each Drawer Side H . 4.
- Page 9 ASSEMBLY MODEL # 3AXCRGL003-SB STEP 3 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # 3AXCRGL003-SB STEP 5 1. Insert 4 Wood Dowel 5 into of each Back Panel C , Front Bar F and Bottom Shelf D . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 ASSEMBLY MODEL # 3AXCRGL003-SB STEP 6 1. Insert 2 Dowels 5 into Divider E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. . Align Wood owel 5 on Divider E with pre-drilled holes on Back anel C . .
- Page 12 ASSEMBLY MODEL # 3AXCRGL003-SB STEP 7 1. Insert 2 Dowels 5 into top corners of each Side B . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align pre-drilled holes on bottom corners of Top A with Dowels 5 in Sides B . 4.
-
Page 13: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 14 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
