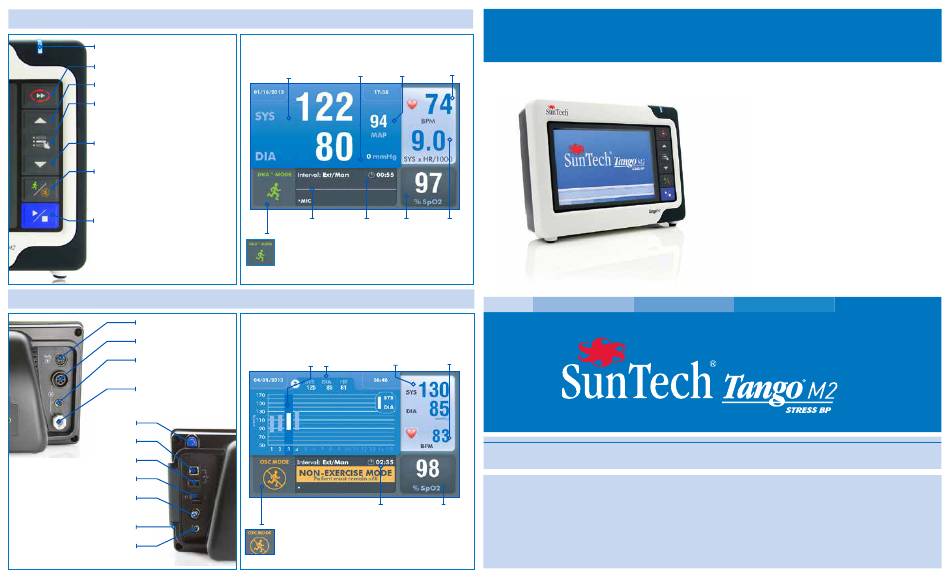

SunTech Tango M2 Quick Start Manual

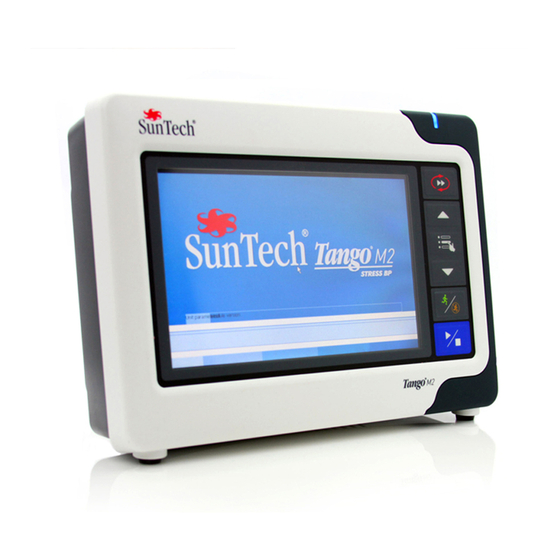

F r o n t P a n e l
Power On LED
STAT* - Start or stop STAT mode
UP - Scroll through menus & lists
SELECT - Choose Main Menu
screen & Select menu options
DOWN - Scroll through menus
and lists
DKA TM /OSC - Choose
auscultatory DKA mode or
TM
oscillometric OSC mode (see the
DKA vs OSC mode section of this
guide for more info)
START/STOP - Start or stop a
measrement.
* Press the STAT button to take repeated
blood pressure measurements for time
sensitive or emergency situations
R e a r P a n e l C o n f i g u r a t i o n
SpO (optional)
2
(optional)
Internal ECG
Patient Cable
(Microphone)
Patient Cable
(Pneumatic)
Power On
USB-B
USB-A
RS-232
BNC External
ECG
Headphone
DC Power
Connection
M e a s u r e m e n t V i e w
The Measurement View displays the current or most recent
patient measurements as numeric readings.
Blood Pressure Mean Arterial
Reading Cuff Pressure Pressure*
Waveform Indicator Interval Indicator SpO
2
& Display & Timer
A green "running man" icon indicates that the monitor is set
to take BP readings in auscultatory (exercise) DKA™ MODE.
* Not available in all countries see User Manual for details.
G r a p h V i e w
The Graph View displays a summary of the most recent BP
measurements, in addition to numeric display of other readings.
Blood Pressure & Heart Rate
for the Highlighted Reading Blood Pressure
Interval Indicator
& Timer
An orange "running man" icon with a slashed circle indicates
that the monitor is set to take BP readings in oscillometric
(non-exercise) OSC MODE. The patient must remain still.
Heart Rate
Double
Product
Heart Rate or
Double Product
SunTech Medical, Inc.
507 Airport Boulevard, Suite 117
Morrisville, NC 27560-8200 USA
SpO
2
Tel: + 1.919.654.2300
1.800.421.8626
Fax: + 1.919.654.2301
www.SunTechMed.com
Welcome to Tango M2!
Thank you for choosing this Tango M2 blood
pressure monitor.
For over twenty-five years, SunTech Medical
been the preeminent supplier of leading edge
technology and innovative products to obtain
blood pressure measurements when manual
readings are unreliable or simply not possible.
Today, we remain focused on the continual
advancement of clinical grade blood pressure
technology.
Tango M2 is the latest in our line of Tango Stress
Test Blood Pressure Monitors, designed specifically
to work with your stress system.
Q u i c k s t a r t G u i d e
