SunTech Tango M2 Service Manual

Nibp stress test blood pressure monitor
Hide thumbs Also See for Tango M2:

Advertisement

Table of Contents

See also: User Manual
®
Tango M2

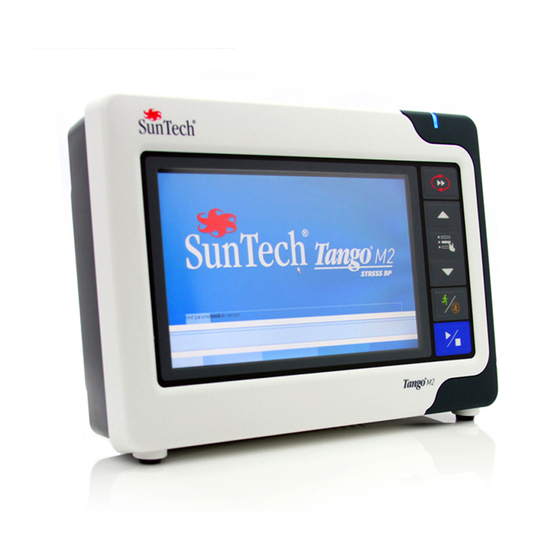

Tango M2 NIBP Stress Test Blood Pressure Monitor
Service Manual
SunTech Medical, Inc.
507 Airport Boulevard; Suite 117
Morrisville, North Carolina 27560-8200
United States of America
Toll free: 800.421.8626
Phone: +1.919.654.2300
Fax: +1.919.654.2301
SunTech Medical, Ltd.
Oakfield Industrial Estate
Stanton Harcourt Road
Eynsham, Oxfordshire OX29 4TS
United Kingdom
Phone: +44(0)1865.884.234
Fax: +44(0)1865.884.235
80-0056-00-SM-RevD 2017-12-13
SunTech Tango M2 Service Manual | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tango M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SunTech Tango M2

Summary of Contents for SunTech Tango M2

  • Page 1 ® Tango M2 Tango M2 NIBP Stress Test Blood Pressure Monitor Service Manual SunTech Medical, Inc. 507 Airport Boulevard; Suite 117 Morrisville, North Carolina 27560-8200 United States of America Toll free: 800.421.8626 Phone: +1.919.654.2300 Fax: +1.919.654.2301 SunTech Medical, Ltd. Oakfield Industrial Estate...

  • Page 2: Table Of Contents

    Appendix 3 This Service Manual contents contain drawings and/or specifications that are the property of SunTech Medical, Inc Authorized copies are issued in strict confidence and shall not be reproduced or copied or used as the basis for manufacture or sale of apparatus without permission.

  • Page 3: Introductions

    K-sound microphone. 1.3 The Tango M2 is typically interfaced to a host stress test system and receives its analog or digital ECG trigger via a coaxial cable with a BNC connection. Communication between the stress system and the monitor is via an RS-232 null modem cable or USB-A (Stress System) to USB-B (Tango M2) cable.
  • Page 4 V EU (EC) No 278/2009 Phase II Fragile CE Mark: product meets the Medical Shipping Temperature should be kept Device Directive and is CE marked to between -20˚ C and 65˚C indicate conformance 0413 80-0056-00-SM-RevD 2017-12-13 SunTech Tango M2 Service Manual | 4...

  • Page 5: Tango M2 Inputs & Outputs

    Tango M2. 4.1.3 Optional ECG Patient Cable (3 lead to 6-pin DIN). Provides the ECG signal to the Tango M2. Used only if the Tango M2 is not using an external ECG source. e.g. a stress system.
  • Page 6 Diagnostics Menu also provides access to the Configuration Options settings and Direct Hardware Control. 5.2.1 Verify Calibration – Selecting this option will display the current pressure within the Tango M2 system. This option should be used with a T-Tube kit (SunTech part number 98-0030-00).

  • Page 7: Tango M2 Routine Preventative Maintenance Procedures

    5.2.6 Special – SunTech use only. Tango M2 Routine Preventative Maintenance Procedures The Tango M2 monitor is designed to perform within the description contained in the user manual and inserts. The monitor should be operated, maintained and repaired in accordance with the instructions provided within this documentation.
  • Page 8 NOTE: If using Verify Calibration under Calibration Menu, increase pressure to 280mmHg slowly, to avoid overshooting 280 mmHg and tripping the overpressure limit. 6.1.5 If any pressure reported by the Tango M2 is outside limits, the monitor must be calibrated (see section 6.2.

  • Page 9: Tango M2 Non-Routine Maintenance Procedures

    6.3.3 Select Verify Calibration in the Diagnostics Menu. The Tango M2 will now have its valves closed and will display the pressure applied to the patient hose connector. 6.3.4 Inflate the pressure to 250mm Hg. Allow the system to stabilize for 1 minute, re-adjusting to 250mm if required.

  • Page 10: Disassembly And Reassembly

    7.1 General Internal Inspection Note: THE WARRANTY FOR THE TANGO M2 MONITOR WILL BE VOIDED IF THE WARRANTY SEAL IS BROKEN. The Tango M2 monitor should only be serviced by a SunTech Medical trained and certified technician.
  • Page 11 Disassembly 97-0227-00 (Latest LCD) 97-0191-00 (next generation LCD) Keypad Cable Internal ECG Cable Screw Locations Pneumatic Tubing 80-0056-00-SM-RevD 2017-12-13 SunTech Tango M2 Service Manual | 11...
  • Page 12 K-Sound Cable Pneumatic Tubing 8.1.1 Place the Tango M2 display downwards on a soft surface. Remove the four screws located in the wells on the rear enclosure. The warranty seal must be broken to access all of the screws. 80-0056-00-SM-RevD 2017-12-13...
  • Page 13 8.1.2 Place the Tango M2 unit on the back side with the display facing up. Remove the four screws and tooth washers that hold the Tango M2 assembly to the rear enclosure. 8.1.3 Place the Tango M2 on the rubber feet and pull the side of the Tango M2 board assembly with the power button.

  • Page 14: Appendix 1

    Tango M2 Spare Parts List PART NUMBER DESCRIPTION 99-0027-39 Tango M2 Preventative Maintenance Kit (Contains 1 Adult Plus cuff with microphone, 1 Adult Large cuff with Microphone, and 1 Tango M2 Patient Cable). 92-0140-00 Tango M2 K-DKA Board, Tested 98-0030-00 T-tube kit (For calibration –...

  • Page 15: Appendix 3

    Appendix 3 Tango M2 Monitor Assembly 97-0144-XX-AD Rev B 80-0056-00-SM-RevC 2017-11-08 SunTech Tango M2 Service Manual | 15...
