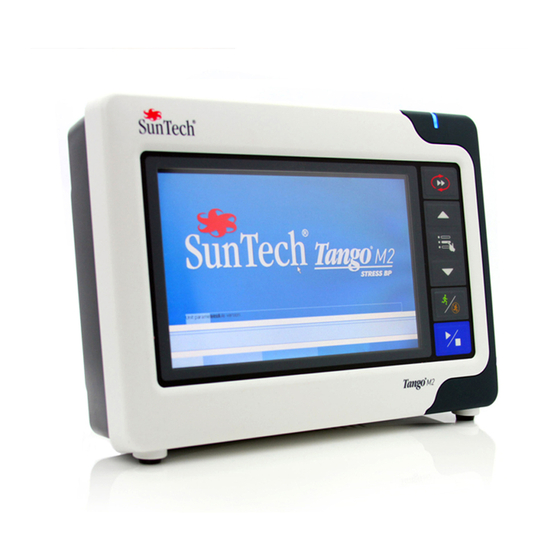

To setup Tango M2 with the MAC 5000/5500 stress system, simply follow the directions below.

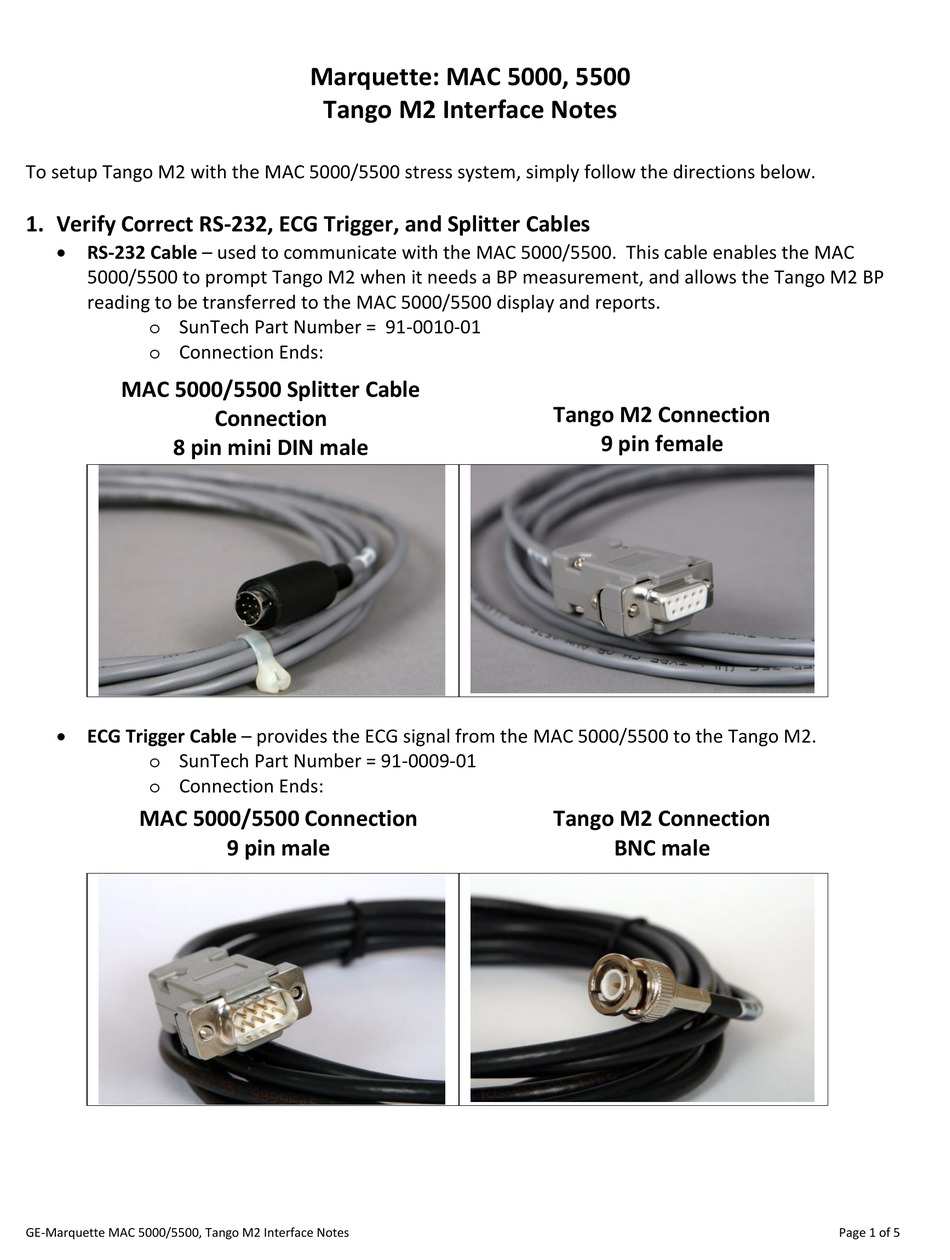

1. Verify Correct RS-232, ECG Trigger, and Splitter Cables

 RS-232 Cable – used to communicate with the MAC 5000/5500. This cable enables the MAC

5000/5500 to prompt Tango M2 when it needs a BP measurement, and allows the Tango M2 BP

reading to be transferred to the MAC 5000/5500 display and reports.

o SunTech Part Number = 91-0010-01

o Connection Ends:

MAC 5000/5500 Splitter Cable

8 pin mini DIN male

 ECG Trigger Cable – provides the ECG signal from the MAC 5000/5500 to the Tango M2.

o SunTech Part Number = 91-0009-01

o Connection Ends:

MAC 5000/5500 Connection

GE-Marquette MAC 5000/5500, Tango M2 Interface Notes

Marquette: MAC 5000, 5500

Tango M2 Interface Notes

Connection

9 pin male

Tango M2 Connection

9 pin female

Tango M2 Connection

BNC male

Page 1 of 5
