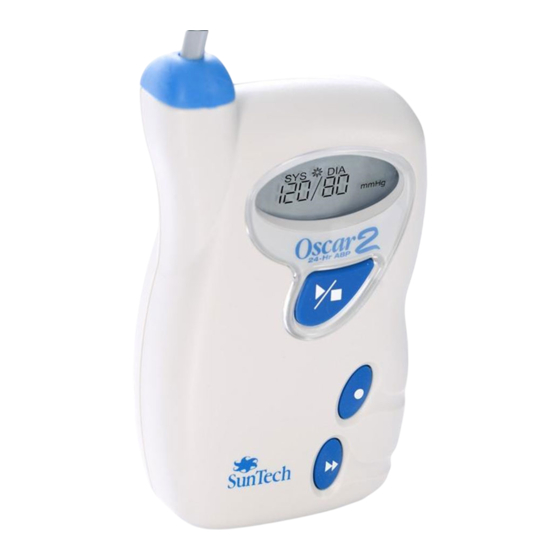

SunTech Oscar 2 Quick Start Manual

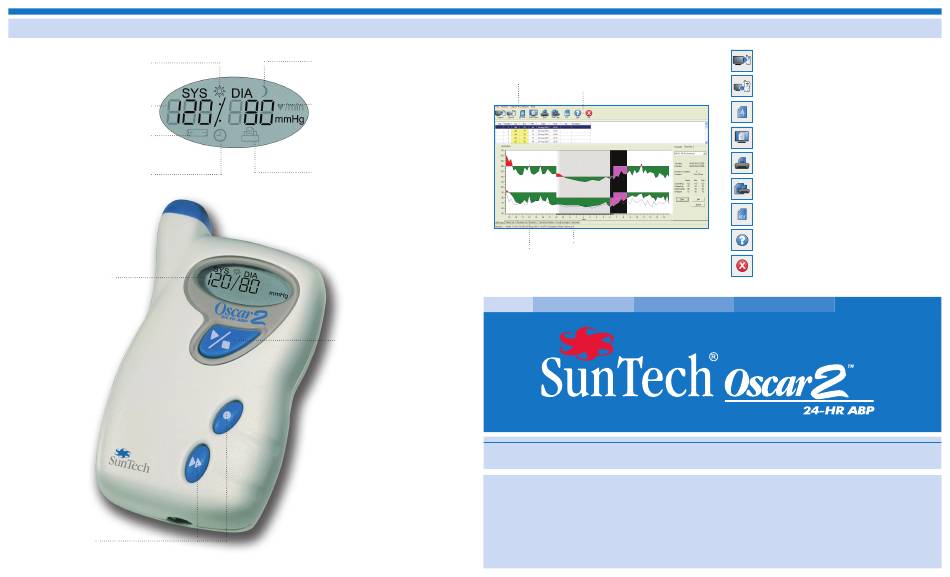

B i r d ' s E y e V i e w
Sun
Denotes that the monitor is collecting
readings at selected intervals for the AWAKE
portion of the study.
Time
When the monitor is not taking a reading,
indicates the correct time.
Battery
Indicates low battery voltage;
BATTERIES NEED TO BE REPLACED.
Clock
Denotes that a programmed ABP study
is in progress.
Systolic/Diastolic
Buttons
reserved for future
programmability
Moon
Denotes that the monitor is collecting readings
at selected intervals for the ASLEEP portion
of the study.
BP Reading
During a BP reading, indicates the pressure of the
cuff in mmHg.
Immediately after a BP reading, the display
shows the results of the reading, blood pressure
in mmHg followed by heart rate in beats per
minute.
Printer
Indicates the number of BP readings in memory.
Start/Stop
To Power On:
Press the Start/Stop button.
To Power Off:
When the monitor is not taking
a reading, press and hold the Start/
Stop button until you hear 5
quick beeps (approx. 5 seconds),
then release.
To Abort a Measurement:
When the monitor is taking a
reading press the Start/Stop button.
To Start a Programmed ABP Study:
When the time is flashing, press
the Start/Stop button.
To Start a Single BP Reading:
When the time is displayed, press
the Start/Stop button.
To o l b a r I c o n s
Menu bar
Toolbar
Status Bar
Tabs
Q u i c k s t a r t G u i d e
SunTech Medical, Inc. SunTech Medical, Ltd.
507 Airport Boulevard, Suite 117 Oakfield Estate
Morrisville, NC 27560-8200 USA Eynsham, Oxfordshire
Tel: + 1.919.654.2300 England
1.800.421.8626 Tel: + 44 (0) 1865.884.234
Fax: + 1.919.654.2301 Fax: + 44 (0) 1865.884.235
www.SunTechMed.com www.SunTechMed.com
Program
Program the monitor for an ABP study.
Retrieve
Retrieve an ABP study from the monitor.
BP Data
Open an ABP study.
Print Preview
Preview a report.
Print
Print a report.
Print Page
Print the report page of the displayed data.
Create PDF
Create a PDF file of a report.
Help
Browse help files.
Exit
Close AccuWin Pro ™ v3.
SunTech Medical, Ltd. SunTech Medical, Ltd.
Level 19, Two IFC 2/F of Building A, Jinxiongda Technology Park
8, Finance Street, Central Guanlan, Bao'an District Shenzhen, 518110, PRC
Hong Kong Tel: + 86-755-2958 8810
Tel: + 852.2251.1949 + 86-755-29588986 (Sales)
Fax: + 852.2251.1950 + 86-755-29588665 (Service)
Fax: + 86-755-2958 8829
www.CN.SunTechMed.com www.CN.SunTechMed.com
part #82-0026-00 Rev. E
