Specification

• Power Supply
10.7 to 16.6 VDC,
with backlights on full.
• Operating temperature
0°C to 45°C.
• Size of display
112 x 112 x 24mm (4.4 x 4.4 x 1"), overall
depth 35mm (1.4") behind panel.
• Display type.
Twisted Nematic (TN) grey background.
• Illumination
Red LED switchable from key pad.
• RF interference
Neglible interference on any VHF marine radio
channel with 3dB gain antenna at 1 metre
from the instrument display head.
• Depth
1 to 130 metres or 3 to 400ft or 0.5 to 70
fathoms.
• Alarms
Depth shallow and deep. Audio and LCD flag.
• Depth unit selection
Feet, metres or fathoms, key pad selectable.
• Transducer
200 kHz, 600 ohm, 1500pF parallel
capacitance.
• Boat speed
0 to 50 knots or 0 to 90kph or 0 to 60Mph,
may be different for transducers other than
that supplied with instrument. User selectable
to display in 0.1 or 0.01 increments.
• Speed units and resolution
0.00 to 19.90 and then 20 to 50 in knots, Mph
or kph.
Display is backlit for
Night Operation
Multi-function
display
6
90 mA nominal, 100 mA
RESET
• Maximum speed
Records max. speed to 50 knots. Reset to zero
via key pad or at power down.
• Log (Trip distance)
0 to 99999 units key pad selectable in Kts,
Mph or kph. Shows two decimal places when
value is below 1000. Shows one decimal place
if value is between 1000 and 10000.
• Total log
0 to 99999 units key pad selectable in Kts,
Mph or kph. Shows two decimal places when
value is below 1000.
• Keel Offset
±9.9 ft, ±1.6 fathoms or ±3.0 metres, user
settable. Allows for display of depth below keel
or waterline.
• Trend Indication
Arrows indicate increasing or decreasing depth
and speed trends.
• Time functions
Trip timer to 99 hrs and 59 minutes. Count
down timers in seconds, start selectable from 1
to 10 minutes.
• Water temperature
0.0°C to 37.7°C (32.0°F to 99.9°F). Tenths of a
degree are displayed.
• Temperature Sensor
Thermistor, 10k ohm at 25°C.
• Output data
NMEA 0183 format. VHW, VLW, MTW, DBT,
DPT.
• Transducer input cables
Phono connector for depth, 4 pin Fuji for
speed/temp transducer. 3 conductor cable for
NMEA and power.
DEPTH
SPEED
AVG
SPEED
DEPTH
TOTAL
LOG

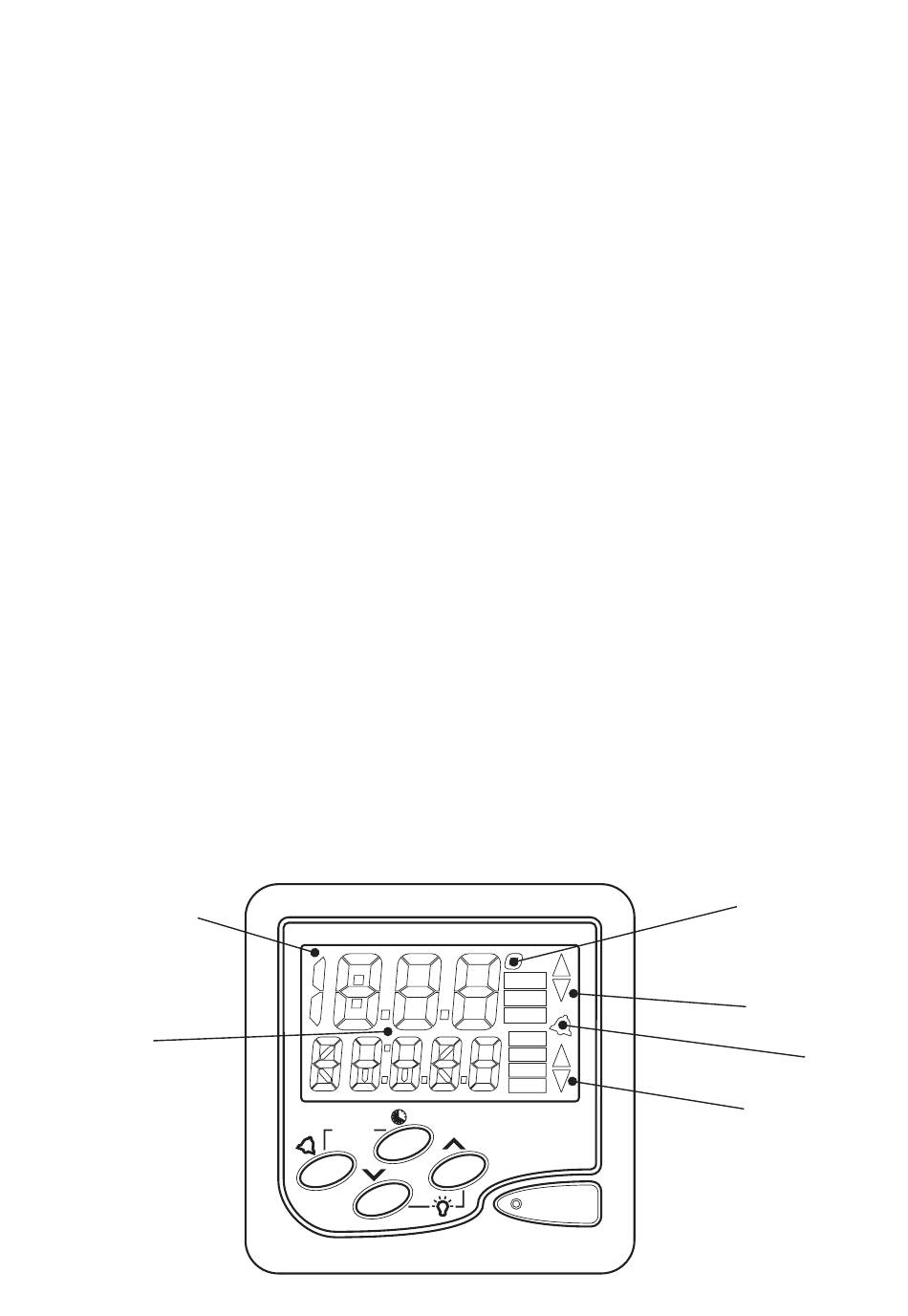

MULTI
Sea temperature
Depth/speed
trend indicators
Alarm
indicator
Depth/speed
trend indicators
NAVMAN M100 User Manual
