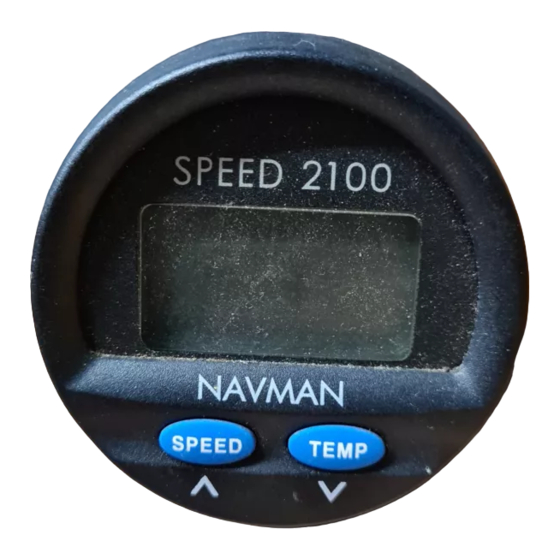

- Page 1 SPEED 2100 Installation and Operation Manual English ..... 3 Français ..11 Español ..19 Deutsch ..27 Nederlands ..35 Suomi ..... 43 Svenska ..51 NAVMAN...
- Page 2 Connect the equipment into an output on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced technician for help. A shielded cable must be used when connecting a peripheral to the serial ports. N AVM AN SPEED 2100 Installation and Operation Manual...
-
Page 3: Table Of Contents
NAVMAN NZ LIMITED DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW. This manual represents the SPEED 2100 as at the time of printing. Navman NZ Limited reserves the right to make changes to specifications without notice. -
Page 4: Operation
15 seconds until LOG, release to show the temperature. displayed again. The display will revert to 0.0. > Press for 15 Seconds The instrument always powers up into the SPEED > mode. N AVM AN SPEED 2100 Installation and Operation Manual... -
Page 5: Trip Log Reset
Selecting units of measure Calibrating SPEED Against a Known The SPEED 2100 will indicate boat speed in Knots Reference (nautical miles), MPH (statute miles) or KPH (kilometres). To change the current setting perform 1. -
Page 6: F / °C Selection
To calibrate the TEMPERATURE: 1. Select the TEMP mode. 2. Press and hold the keys for 5 seconds. 3. Release both keys when the display shows the following: Press for 5 seconds N AVM AN SPEED 2100 Installation and Operation Manual... -
Page 7: Installation
3 Installation Location Mounting The SPEED 2100 is designed for above or below The instrument panel must be 3mm to 19mm deck installation. Select a position that is: ” to ”) in thickness. • On a flat surface • Drill a 51mm (2”) hole in the instrument panel. -
Page 8: Wiring Connection
1 amp fuse or a 1 amp circuit breaker. Connect the black wire to the electrical ground. BUZZER BRACKET 600mm (24”) POWER CORD 4 PIN CONNECTOR BLACK (+) TERMINAL (-) TERMINAL N AVM AN SPEED 2100 Installation and Operation Manual... -
Page 9: Appendix A - Specifications
<6 dB quieting on any marine radio channel (depending on transducer type), (with 3 dB gain antennae) within one metre of • Trip Log the SPEED 2100. Complies with CE EMC 0-999 miles, non-volatile, resetable standards EN50081-1 and EN50082-1. (0.00-9.99 read in hundredths, 10.0-99.9 read in tenths, 100-999 read in whole numbers). -
Page 10: Appendix B - Troubleshooting Chart
No temperature reading or is inaccurate: 1. Check calibration. 2. Check for break in cable. Simulation mode: At power up, if all the segments display for 5 seconds then the instrument is in simulation mode. N AVM AN SPEED 2100 Installation and Operation Manual... -
Page 11: Appendix C - How To Contact Us
