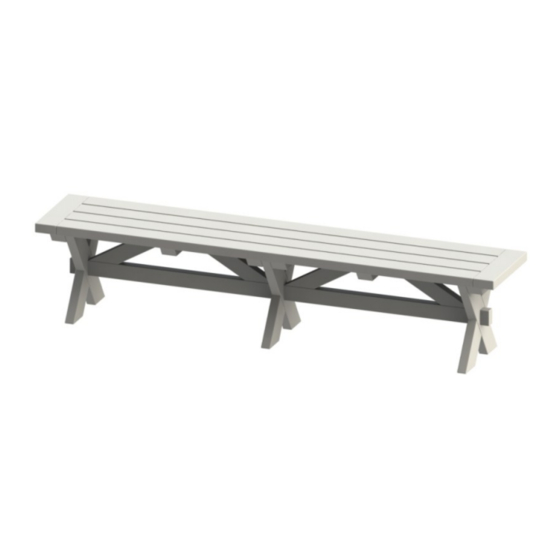

Sonoma 76" Bench
(071)
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING.
Carefully remove contents from box. Make sure that all parts and hardware
are included using the Parts List below.
Tools Required:
Angle Braces
Leg Assemblies
80mm Hex Lag
Actual Size
Part Code: 316-1/4-10-80HL
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
Seaside Casual Furniture | 11 Industrial Drive Coventry, RI 02816 | 800-809-3114 | sales@seasidecasual.com
ASSEMBLY INSTRUCTIONS
4mm Allen Wrench (included); #2 Phillips Head Screwdriver;
End Caps
x 4
x 2
x 3
1-3/4" Phillips Head Screw
x 14
Seat Assembly
Stretchers
4mm Allen Wrench
Actual Size
Part Code: 4MMALLEN
Actual Size
Part Code: 316-8X1-3/4PFDS
x 1
x 1 ea
x 1
x 26
Page 1
071- Rev A
