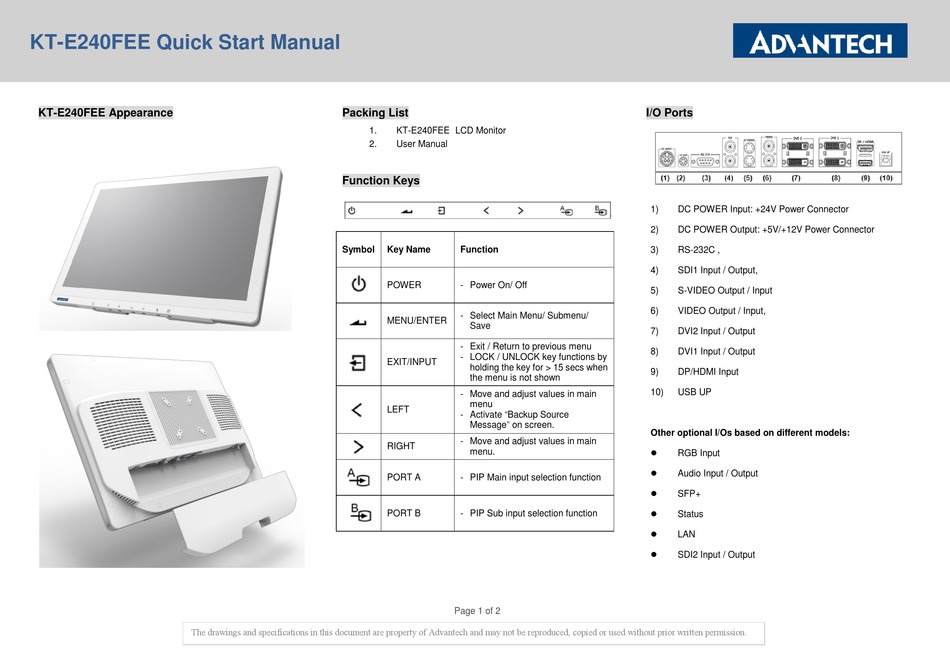

KT-E240FEE Quick Start Manual
KT-E240FEE Appearance
The drawings and specifications in this document are property of Advantech and may not be reproduced, copied or used without prior written permission.
Packing List
1. KT-E240FEE LCD Monitor
2. User Manual
Function Keys
Symbol Key Name Function
POWER - Power On/ Off
- Select Main Menu/ Submenu/
MENU/ENTER
Save
- Exit / Return to previous menu
- LOCK / UNLOCK key functions by
EXIT/INPUT
holding the key for > 15 secs when
the menu is not shown
- Move and adjust values in main
menu
LEFT
- Activate "Backup Source
Message" on screen.
- Move and adjust values in main
RIGHT
menu.
PORT A - PIP Main input selection function
PORT B - PIP Sub input selection function
Page 1 of 2
I/O Ports
1) DC POWER Input: +24V Power Connector
2) DC POWER Output: +5V/+12V Power Connector
3) RS-232C ,
4) SDI1 Input / Output,
5) S-VIDEO Output / Input
6) VIDEO Output / Input,
7) DVI2 Input / Output
8) DVI1 Input / Output
9) DP/HDMI Input
10) USB UP
Other optional I/Os based on different models:

RGB Input

Audio Input / Output

SFP+

Status

LAN

SDI2 Input / Output
