- Page 1 User Manual DSD-3000 Series Signage Display...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This type of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 4 Note! Notes provide additional non-essential information. Document Feedback To assist us with improving this manual, we welcome all comments and constructive criticism. Please send all feedback in writing to support@advantech.com. Packing List 1 x US power cord (1.8 m) ...
- Page 5 In accordance with IEC 704-1:1982 specifications, the sound pressure level at the operator’s position should not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. DSD-3000 Series User Manual...
- Page 6 DSD-3000 Series User Manual...
-
Page 7: Table Of Contents
Keypad (Eight Keys) ..............14 3.1.2 Remote Control................14 OSD Menu ....................15 RS232/RS485 Command................ 17 3.3.1 Environment................17 3.3.2 Sample..................17 Input Mode ....................20 Appendix A Warnings and Precautions ....23 Warnings and Precautions ..............24 DSD-3000 Series User Manual... - Page 8 DSD-3000 Series User Manual viii...
-
Page 9: Chapter 1 Overview
Chapter Overview Overview Features Applications Product Photographs Naming Conventions... -

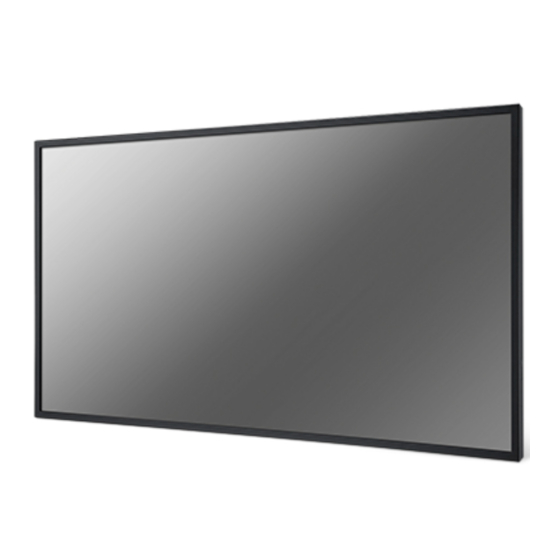

Page 10: Overview
The Advantech DSD-3000 series comes equipped with a 32"/42"/55" industrial-grade digital signage monitor. This series is also available with a flexible stand base (optional) and optical touch functions. The DSD-3000 series systems offer superior performance for semi-outdoor and indoor applications. This manual is intended for the DSD-3032N/T, DSD-3043N/T, and DSD-3055N/T models. - Page 11 Additionally, the VESA mounting dimensions vary between models. I/O (Underside) View Note! The I/O ports differ between the various models in the DSD-3000 series. Please refer to the specifications sheet for further details. I/O Interface Power button / AC socket...
-
Page 12: Naming Conventions
Naming Conventions DSD-3000 Series User Manual... -
Page 13: Chapter 2 System Setup
Chapter System Setup Specifications Dimensions Packing List Attaching and Removing a Table Stand (Optional) -
Page 14: Specifications
774.4 x 474.79 x 79.9 Packing (mm) 895 x 610 x 200 895 x 610 x 200 VESA Mounting (mm) 200 x 200 200 x 200 Interface USB 2.0 Optional Touch Type optical touch Touch Multi Touch two points DSD-3000 Series User Manual... -
Page 15: Dsd-3043
1011 x 617 x 82 Packing (mm) 1140 x 760 x 240 1140 x 760 x 240 VESA Mounting (mm) 400 x 200 400 x 200 Interface USB 2.0 Optional Touch Type optical touch Touch Multi Touch two points DSD-3000 Series User Manual... -
Page 16: Dsd-3055
1315.42 x 798.21 x 82.7 Packing (mm) 1355 x 845 x 200 1400 x 900 x 250 VESA Mounting (mm) 400 x 400 400 x 400 Interface USB 2.0 Optional Touch Type optical touch Touch Multi Touch two points DSD-3000 Series User Manual... -
Page 17: Dimensions
Dimensions 2.2.1 DSD-3032N 743.6 703.6 (BEZEL OPENING) 698.4 (ACTIVE AREA) 271.8 271.8 196.8 47.4 2.2.2 DSD-3032T 774.4 712.4 (BEZEL OPENING) 698.4 (ACTIVE AREA) 39.9 287.2 287.2 212.2 195.2 11.7 39.3 DSD-3000 Series User Manual... -
Page 18: Dsd-3043N
2.2.3 DSD-3043N DSD-3043N-50FHA1 Unit: mm 970.9 942.9(BEZEL DPENING) 285.45 285.45 31.1 940.9(ACTIVE AREA) 2.2.4 DSD-3043T Unit: mm DSD-3043T-50FHA1 1010.6 949.9(BEZEL DPENING) 42.15 940.9(ACTIVE AREA) 305.3 305.3 DSD-3000 Series User Manual... -
Page 19: Dsd-3055N
1221.42 (Bezel Opening) 1209.6 (Active Area) 42.7 457.71 457.71 Note! Select the correct VESA mounting kit with an appropriate weight loading capability, and use M6 screws to affix the digital signage display to the mounting unit. DSD-3000 Series User Manual... -
Page 20: Attaching And Removing A Table Stand (Optional)
Gripping the carrying handles, place the display, with the screen facing down, on the protective sheet. Using a screwdriver, remove the screws affixing the stand to the display. Store the screws in a safe place for reuse. DSD-3000 Series User Manual... -
Page 21: Chapter 3 Functions
Chapter Functions LED Indicator, Keypad, and Remote Control OSD Functions RS232 Remote Control Timing Table... -
Page 22: Led Indicators
Press again to turn the power off and return the system to standby mode. Source: Press to toggle through the Video Source Menu. Direction: a. Up: Press to move the selector up in the OSD menu. b. Down: Press to move the selector down in the OSD menu. DSD-3000 Series User Manual... -
Page 23: Osd Menu
6500K 7500K √ 9300K R User (0~100) G (0~100) B (0~100) Full Color DISPLAY Auto Adjust Phase Clock Display Posi- ( ↑↓←→ ) tion Display Mode Off Desktop Gaming Multimedia SOUND Volume Mute Output Select Speakers DSD-3000 Series User Manual... - Page 24 Auto Scan OSD Setting 3 seconds Timer 6 seconds 12 seconds √ 0° Rotation 90° 180° 270° Position ( ↑↓←→ ) Transparency 0~100 √ Language English Español Deutsch Français 日本語 繁體中文 简体中文 Reset DSD-3000 Series User Manual...
-
Page 25: Rs232/Rs485 Command
00, which is the global address for all devices connected to the serial port. The Type character is 01 to indicate that the transmission is a command. The Property ID characters indicate a property identifier of 2, which is the value in this protocol. DSD-3000 Series User Manual... - Page 26 C / Ck Checksum Type P Com Ln Data Command Response HDMI Input Source Response DisplayPort Response Response Brightness 100% Response Response Contrast 100% Response Response Sharpness Response Response Sound Mute Response Response Sound Volume 100% Response DSD-3000 Series User Manual...
- Page 27 Color Temp. Response 9300K Response User Response ID:01(HEX) Response SET RS485 ID:FF(HEX) Response Source Response Response Down Response Left Response Right Response Response Remote Control Menu Response Exit Response Volume- Response Volume+ Response Mute Response Power Response DSD-3000 Series User Manual...
-
Page 28: Input Mode
31.5 25.175 640x480 37.9 31.5 800x600 35.1 800x600 37.9 800x600 48.1 1024x768 48.4 1024x768 56.5 1280x720 44.8 74.5 1280x768 47.4 68.25 1280x1024 1360x768 47.7 85.5 1400x1050 64.7 1440x900 55.5 88.75 1600x1200 1600x1200 81.3 175.5 1680x1050 64.7 DSD-3000 Series User Manual... - Page 29 Resolution fV (Hz) fH (KHz) Pixel Rate (MHz) 800x600 35.1 800x600 37.9 800x600 48.1 1024x768 48.4 1024x768 56.5 1280x720 44.8 74.5 1280x768 47.4 68.25 1280x960 1280x1024 1360x768 47.7 85.5 1366x768 47.7 85.5 1920x1080 148.5 3840x2160 DSD-3000 Series User Manual...
- Page 30 DSD-3000 Series User Manual...
-
Page 31: Appendix A Warnings And Precautions
Appendix Warnings and Precautions... -
Page 32: Warnings And Precautions
This device belongs to a class of information products that can cause radio interfer- ence when employed in a live environment. Should this occur, users are responsible for implementing appropriate countermeasures. DSD-3000 Series User Manual... - Page 33 DSD-3000 Series User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2024...
