• Illustrations in this User's Guide shows the CTK-496.
1 MIC VOLUME knob
2 Power indicator
3 MAIN VOLUME buttons
4 SYNCHRO/FILL-IN button
5 START/STOP button
6 POWER/MODE switch
7 TEMPO buttons
8 ACCOMP VOLUME button
9 TRANSPOSE/TUNE/MIDI button
0 Percussion instrument list
A CHORD root names
B Speaker
C MIC IN jack
D Rhythm list
E Tone list
F Song Bank list
G Display
Rear Panel
T
U
* Attachment of the Score Stand
Insert both ends of the music stand provided
with the keyboard into the two holes on the
top surface.
627A-E-011B
H [+]/[–] buttons
I Number buttons/Chord specification buttons
J TONE button
K RHYTHM button
L SONG BANK button
M STOP button
N PLAY/PAUSE button
O REW button
P FF button
Q LEFT ON/OFF button
R RIGHT ON/OFF button
S CHORD BOOK button
V
W
X
• Negative values can be changed only by using [+] and
[–] to increase and decrease the displayed value.
• For input of numbers to change displayed settings.
• For input of chord specification data when using the
Chord Book.
T MIDI OUT terminal
U MIDI IN terminal
V SUSTAIN jack terminal
W DC 9V terminal
X PHONES/OUTPUT terminal

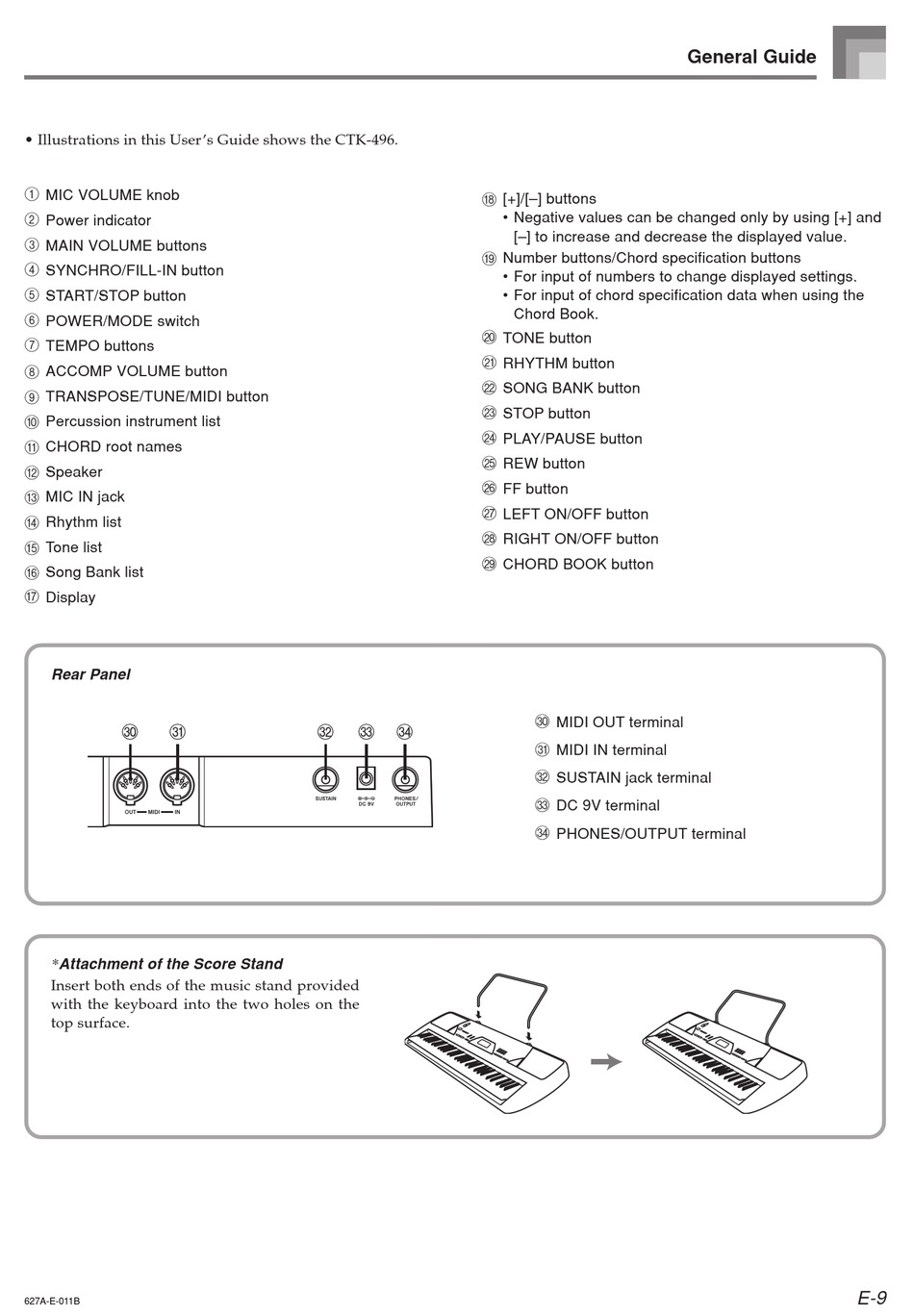

General Guide
