Bolt X Quick Start Guide

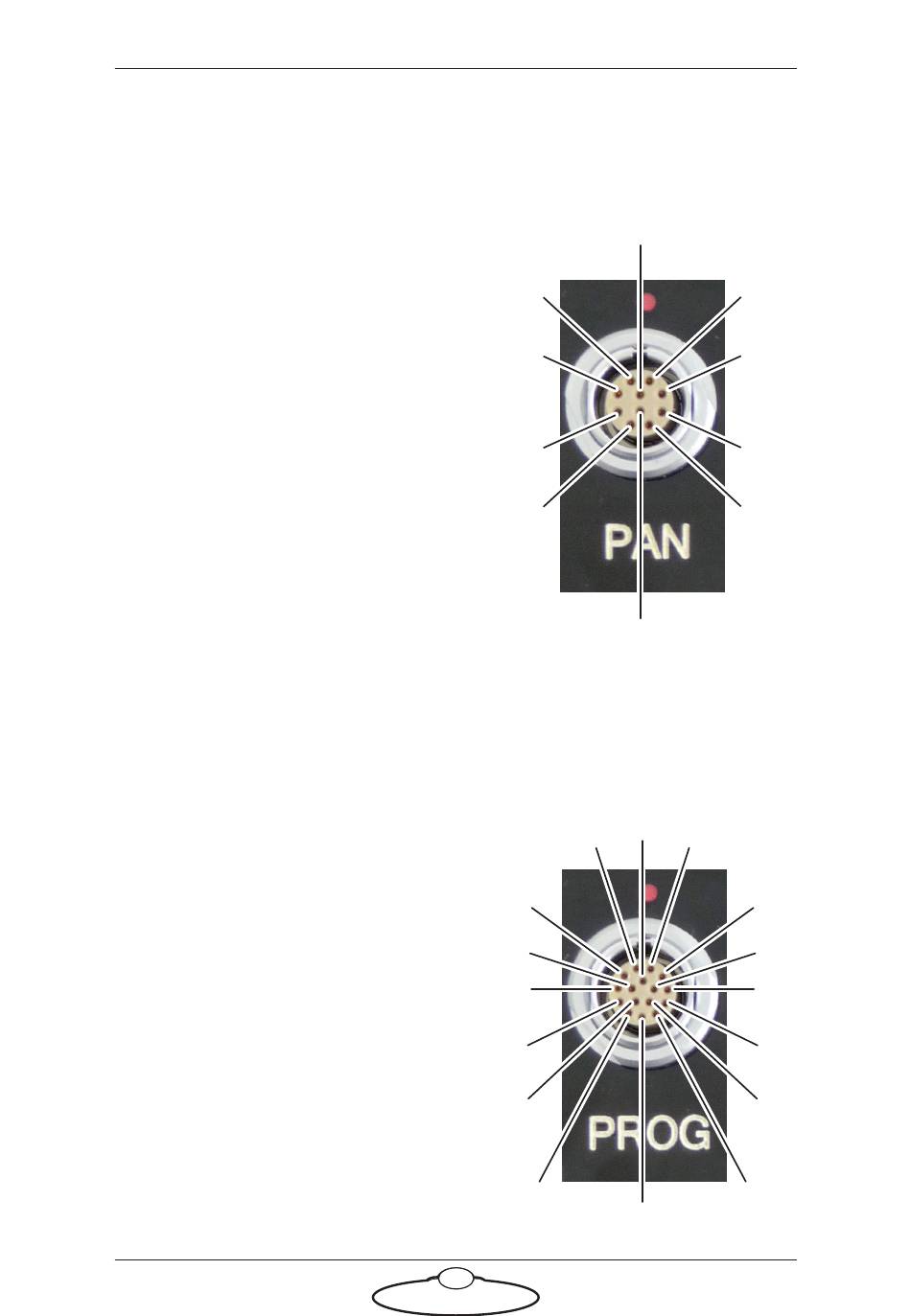

Ulti-box connector pin-out information

Servo motor connector

This type of connector is used for six
servo motor connectors on the Ulti-box:
Pan, Zoom, Focus, Tilt, Aux-1, Aux-2.
1. DATUM
2. A+
3. B+
4. Z+
5. N/C
6. MOTOR_B
7. MOTOR_A
8. LIMIT
9. +5V
10. GND

Program serial connector

Serial connector for connection to a controller using a Serial RS232
connection, and for updating the firmware in the Ulti-box.
1. SerialTxA
2. SerialRxA
3. +5V
4. FGPIO
5. DSP_TRSTN
6. TCK
7. TMS
8. DSP_TDI
9. DSP_TDO
10. DSP_EMU0
11. DSP_EMU1
12. FPGA_TDI
13. FPGA_TDO
14. BOOT_SEL
15. +3.3V
16. GND
1
2
3
4
1
2
13
3
4
14
5
48
9
8
7
6
5
10
12
11
10
16
9
8
15
7
6
