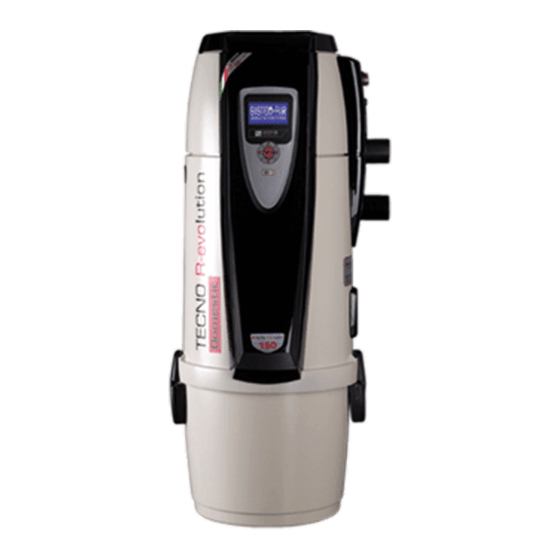

Page 1 ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS w w w . s i s t e m a i r . c o m Technical manual Domestic...
Page 3 INSTRUCTION MANUAL • Type: domestic vacuum cleaner Line • Model: TECNO TECNO • Revision 1.0.0 INDEX TECHNICAL DATA AUTHORIZED USE OF THE VACUUM CLEANER 2.1 Using the service socket UNAUTHORIZED USE OF THE VACUUM CLEANER SAFETY FEATURES 4.1 Warning 4.2 IP protection degree 4.3 Electrical insulation degree 4.4 Declaration of absence of dangerous substances 4.5 Fixed closure guards safety...
Page 4: Technical Data
Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 1 - TECHNICAL DATA TECNO R-evolution TECNO Style Tecno Tecno Tecno Tecno Tecno Tecno Tecno Tecno Tecno R-evolution R-evolution R-evolution R-evolution Style Style Style Style Style Model MINI Article 3110.2T 3112.2T 3113.3T...
Page 5 2 - AUTHORIZED USE OF THE VACUUM CLEANER The Tecno lines vacuum cleaner has been designed exclusively to vacuum clean house dust, very small-size solids and dry materials. The use of the central vacuum cleaner is authorized for household and civil uses, connected to a PVC wall-traced piping network and to a standard home electrical wiring. The vacuum cleaner can be installed in domestic dwellings with the following characteristics: •...
Page 6 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS • Never use the machine for unauthorized purposes. • Never vacuum clean liquids. • Do not vacuum clean fabrics, heavy materials, ashes or hot embers. • Do not suction cement, ﬂ our or similar materials, including the construction site dust ( lime remains, plaster powder and so on) which may cause the reduction of the vacuumed air with a consequent da- mage of the motor.
Page 7: Ip Protection Degree
• Children must always be supervised to ensure they do not play with the machine. • Switch off the power supply immediately if: - the electric cable is damaged or worn - the vacuum cleaner has been exposed to rain or excessive humidity - the vacuum cleaner has been knocked or the outer cover has been damaged in any way - you think the system requires maintenance or repair •...
Page 8: Identification Plate
Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS (suction motor turbine blades) are protected by a protection grid directly assembled on the inlet of the suction motor compartment. This protection grid cannot be accessed by the operator. The operator also does not have access to the electrically-operated parts of the appliance which are protected by a cover which can only be removed by unscrewing the Torsen screws used to ﬁ...
Page 9 Unscrew the screws and remo- ve the top cover. Remove the plate, remove the screws underneath and remove the front panel. Replace the panel on the oppo- site side. Replace the upper dome, position the electric cable in the special grooves and position again the dustproof sponge disk to completely close the hole of the cable outlet.
Page 10: Preliminary Operations
Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 6 - INSTALLATION - WARNING - THESE PROCEDURES MUST BE CARRIED OUT BY QUALIFIED PERSONNEL 6.1 Preliminary operations The suction system is shipped to the customer completely assembled and packed. Before switching the machine on, the following checks are advisable: •...
Page 11: Drill The Holes
6.3 Fixing the vacuum cleaner to the wall The vacuum cleaner must be securely and permanently ﬁ xed to a solid wall using the bracket provided and the suitable wall anchors or plugs taking into account that the total weight to be supported can be seven/eight times that of the system itself.
Page 12 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 6.4 Connection to the piping network 1. Using the sleeve, connect the dust inlet coupling of the cyclonic vacuum cleaner, identiﬁ ed with (A) in the picture, to the suction pipe from the piping network. 2.
Page 13: Electrical Connection
• Only for TECNO R-evolution units: connect the output cable for the auxiliary maintenance warning signal. The use of this signal is OPTIONAL. N.B.: This signal is a normally open contact.
Page 14: Programmed Routine Maintenance
Maintenance should be carried out according to the effective running time of the system so to ensure efﬁ cient performance and avoid serious mechanical damages. The TECNO R-evolution vacuum cleaners are controlled by a computer which also checks the routine maintenance cycles: •...
Page 15: Extraordinary Maintenance
7.3 Extraordinary maintenance The unit features a special display which signals the need for extraordinary maintenance, to be carried out by qualiﬁ ed and/or authorized staff. Two levels of extraordinary maintenance have been programmed: Level 1: • check of ﬁ lter wear and/or relevant replacement •...
Page 16 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Put the conveyor cone back in position Reassemble the dust bin inside its housing under the suction system and lock the closing handles. Switch the suction system on by pressing the ON/OFF switch. After re-starting the system push the “RESET”...
Page 17: Repairs And Spare Parts
STYLE 150 STYLE 250 Filter cartridge 1610.0 STYLE 350 STYLE 450 Filter cartridge 1610.5 STYLE MINI TECNO R-evolution 150 TECNO R-evolution 250 Filter cartridge 1610.0R TECNO R-evolution 350 TECNO R-evolution 450 TECNO R-evolution 150 TECNO R-evolution 250 Microﬁ ber dust bag 1614.5...
Page 18: Troubleshooting
PROBLEM CAUSE SOLUTION Only for TECNO R-evolution units Alarm signalled on the display Eseguire RESET dell’allarme The power cable is unplugged Connect the power cable The start button is on OFF...
Page 19 The air exhaust outlet is Call the Technical Service blocked Only for TECNO R-evolution units The dust bag is full Replace the dust bag The vacuum cleaner still works even Fault of the printed circuit...
Page 20: Exploded View Drawings
Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 10 - EXPLODED VIEW DRAWINGS TECNO Style mod. MINI Cover Sound-absorbing dome Thermal safety sensor Motor Air exhaust Cilynder motor body Fixing plate Front sticker Main switch Dust inlet Filter cartridge Conveyor cone Closing handle and hook...
Page 21 TECNO Style mod. 150/250/350 Cover Sound-absorbing dome Thermal safety sensor Air exhaust Motor Fixing plate Main switch Dust inlet Service inlet switch Gasket Cilynder motor body Service inlet Conveyor cone Filter cartridge Closing handle and hook Dust bin 12/05/16 Rev:1.0.0...
Page 22 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS TECNO Style mod. 450 Cover Sound-absorbing dome Air exhaust Motor Fixing plate Main switch Service inlet switch Dust inlet Cilynder motor body Gasket Service inlet Filter cartridge Conveyor cone Closing handle and hook Dust bin 12/05/16 Rev:1.0.0...
Page 23 R-EVOLUTION kit mod. 150/250/350 with bag suction Cover Sound-absorbing dome Operator interface display control board Membrane Air venting keyboard Motor group Fixing plate Filter cartridge Cyclonic suction dust inlet Basic seal kit Aesthetic frame for Cilynder motor elbow connector body Dust bag Ring seal with gasket Bag suction...
Page 24 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS R-EVOLUTION kit mod. 150/250/350 with cyclonic suction and service suction socket Cover Sound-absorbing dome Motor Air venting Fixing plate Operator interface display control board Cyclonic suction dust inlet Membrane keyboard Basic seal kit Cilynder motor body Service suction...
Page 25 4.3 R-EVOLUTION kit mod.450 with bag suction Cover Sound-absorbing dome Air venting Operator interface display control board Motor group Membrane keyboard Fixing plate Filter cartridge Cyclonic suction dust inlet Basic seal kit Cilynder motor body Aesthetic frame for elbow connector Ring seal whit gasket Bag suction dust inlet...
Page 26 Instruction manual TECNO line ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS R-EVOLUTION kit mod.450 with cyclonic suction and service suction socket Cover Sound-absorbing dome Motor Air exhaust Fixing plate Operator interface display control board Cyclonic suction dust inlet Membrane keyboard Basic seal kit Cilynder motor body Service suction...
Page 27 SUPPLEMENTARY MANUAL • Type: domestic vacuum cleaner TECNO R-EVOLUTION • Model: Tecno R-EVOLUTION Line • Revision 1.0.0 INDEX Operating conﬁ gurations Connection to the piping network (bag suction) Replacing the dust bag (bag suction) Auxiliary connection signal Programming and use of the computer for controlling the central unit 5.1 Programming the start up...
Page 28: Operating Confi Gurations
The production con guration of the Tecno R-EVOLUTION system features a hole to be completed with the BI-VAC kit when installing the unit.
Page 29 2 - Connection to the piping network (bag suction) 1. If the service suction inlet is already assembled on the body of the appliance remove it being careful not to damage the inserted gasket. 2. In case of rst installation, the body of the vacuum cleaner body is completely disconnected; for this reason, install the elbow coupling, provided with the kit, in the lower hole, being careful to position the sealing gasket in the internal side between the coupling and the body.
Page 30 Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS Slide the dust-collecting bag from the ver- tical end of the inlet opening Introduce a new dust bag Reassemble the dust container in its housing under the vacuum cleaner and close it again.
Page 31 5 - Programming and use of the computer for controlling the central unit The Tecno R-Evolution vacuum cleaner is provided with a practical display with membrane keyboard as shown below. The use of this display and the membrane keyboard allows the operator sending the inputs to the com- puter of the central unit in order to select the various functions, programme the routine maintenance and upload speci c data.
Page 32: Language Selection
Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 5.1 Programming the start up Here are the main Menu screens for the start-up Screen display which appears when ﬁ rst switching the system. Press Esc to go to the next screen.
Page 33: Info Service
INFO INSTALLER On this screen you will be able to save some information about the installation. Write the telephone number by pressing the Up, Down, Left and Right arrows. Press Esc to con rm the changes and go * * * * * * * * * * to the next screen.
Page 34 Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 5.2 Alarms Below you will nd the screens relating to the alarms which may appear on the display. Press RESET to cancel the alarm and restore the suction if you activated the “Suction stop” option (see par.
Page 35 SETTINGS Press the Up and Down arrows to scroll in the menu. Press Enter to access the selected sub- Menu menu. Setup Press Esc to exit. 5.4 Menu In this menu there’s the possibility to modify the default parameters and to visualize the product infor- mation.
Page 36: Maintenance Menu
Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 5.4.3 Maintenance menu In this menu you can nd all information regarding the lter ef ciency, the level of dust in the dust container (bin) or in the in the Bi-Vac bag, the time to the next extraordinary maintenance operations level 1 (Service 1) and 2 (Service 2).
Page 37: Statistics Service
INFO INSTALLER * * * * * * * * * * Press the Up, Down, Right and Left ar- rows to put the telephone number in. Press Esc to con rm the change and exit INFO SERVICE the menu. * * * * * * * * * * In detail: Installer:...
Page 38: Menu Date And Time
Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 5.4.5 Menu date and time In this menu you can modify the date and time. Set the date and time using the Up, DATE/TIME Down, Left and Right arrows. Press Esc to con rm the modi cation and exit the menu.
Page 39 5.5.2 Set up dust collection In this menu you can modify the kind of dust collection (dust bin or bag) used by the central vacuum unit. DUST COLLECTION Press the Right and Left arrows to select the kind of dust collection and press En- ter the activate the chosen function.
Page 40 Supplementary manual TECNO R-evolution ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS PARAMETERS Press the Up and Down arrows to select the parameter. Display stand by Press the Left and Right arrows to mo- <005> min dify the parameter. Press Esc to con rm the modi cation and exit the menu.
Page 41 5.5.4 Set up reset parameters In this menu you can reset all changes made on the parameters. By activating this function all parameters will be brought back to the default values. RESET PARAMETERS Press ENTER to activate the function. This way it is possible to restore all chan- ges made to the default settings.
